Warehouse Daylight Harvesting Lighting Controls Motion Sensor Detector

  • Warehouse Daylight Harvesting Lighting Controls Motion Sensor Detector
  • Warehouse Daylight Harvesting Lighting Controls Motion Sensor Detector
  • Warehouse Daylight Harvesting Lighting Controls Motion Sensor Detector
  • Warehouse Daylight Harvesting Lighting Controls Motion Sensor Detector
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number ML50C2-PV + MS01 + MC003V
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Office ,Workshop,Lobby,Classroom Product Name Daylight Sensor+ 2x25w Dimmable Led Driver+ MW Sensor MC003V
Operating Voltage 1~10Vdc(MS01) 220-240Vac(ML50C2-PV,MC003V) Dimming Range 1％~100％
IP Rating IP20 Operation Temperature -0℃~45℃(MS01) -20℃~ 50℃(ML50C2-PV) -35℃~ 70℃(MC003V)
Max. Current Sink 50mA(MS01) 700mA(ML50C2-PV) Cable Length 80Cm(MS01)
High Light

outdoor daylight sensor

,

daylight switch sensor

,

Warehouse Daylight Motion Sensor Detector
Leave a Message
Product Description



Warehouse Daylight Harvesting Lighting Controls Motion Sensor Detector





Description



  •   Daylight harvesting function can be shared by one dimmable led driver
  •   Auto dimming and switch off load when no motion detected

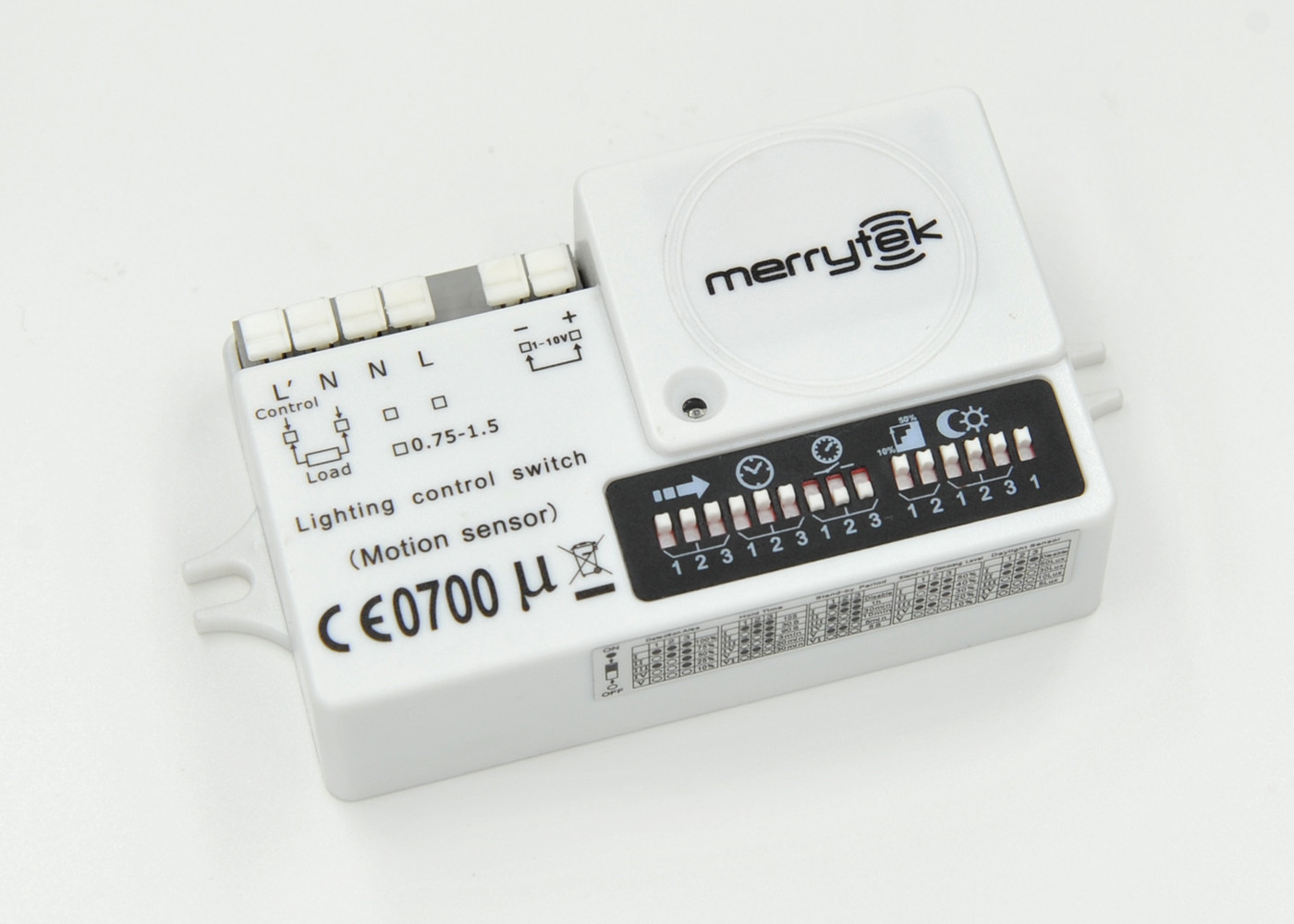

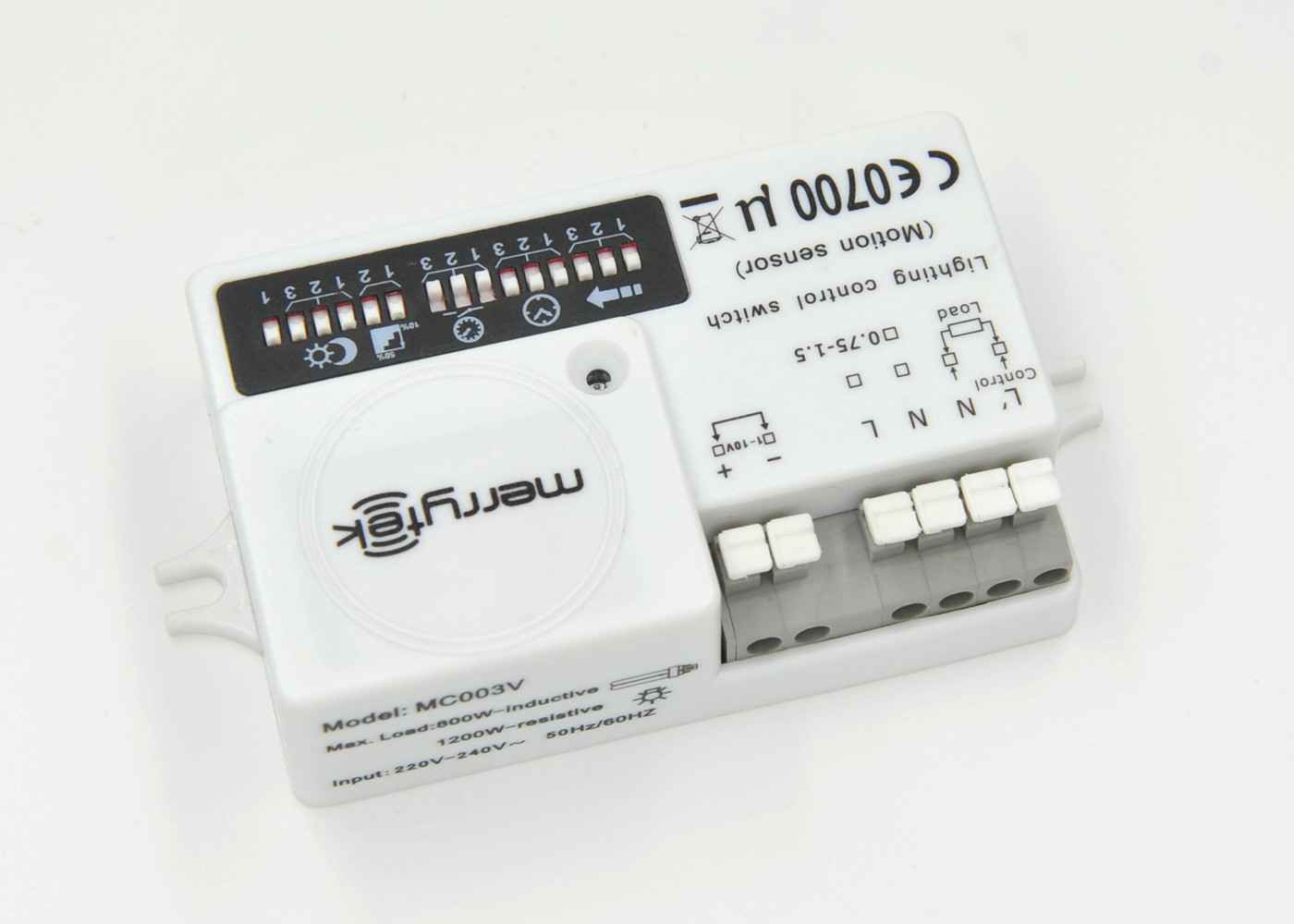

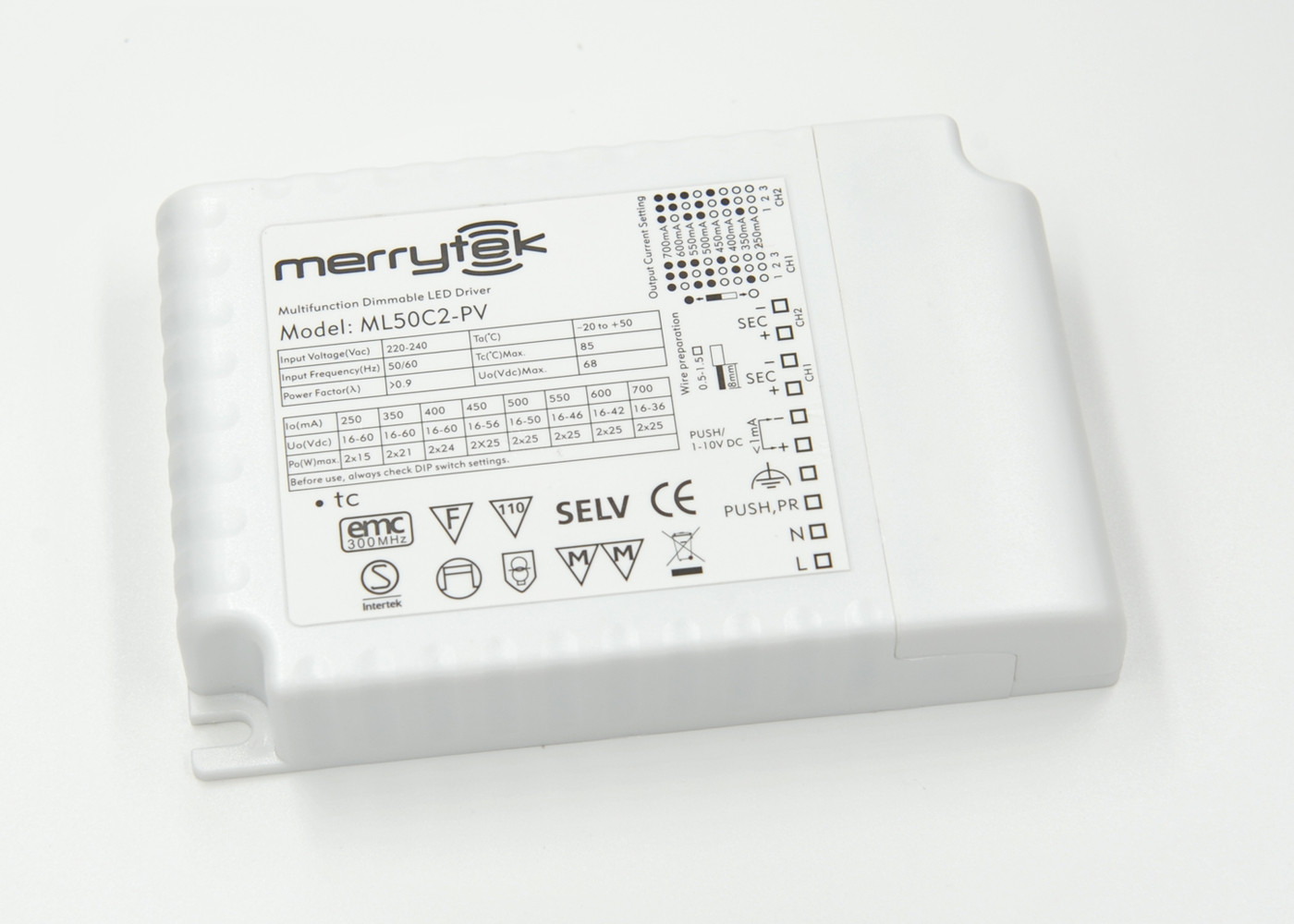

  •   MS01 work with dimmable led driver ML50C2-PV and dimming function MW sensor MC003V to provides daylight harvesting, auto switch off and dimming function
  •   Output current to load selectable from 250mA to 700mA
  •   With ambient light dependent control.
  •   MS01 is directly connected to 1-10V interface.
  •   Simple setting of the target light level by mean of potentiometer.

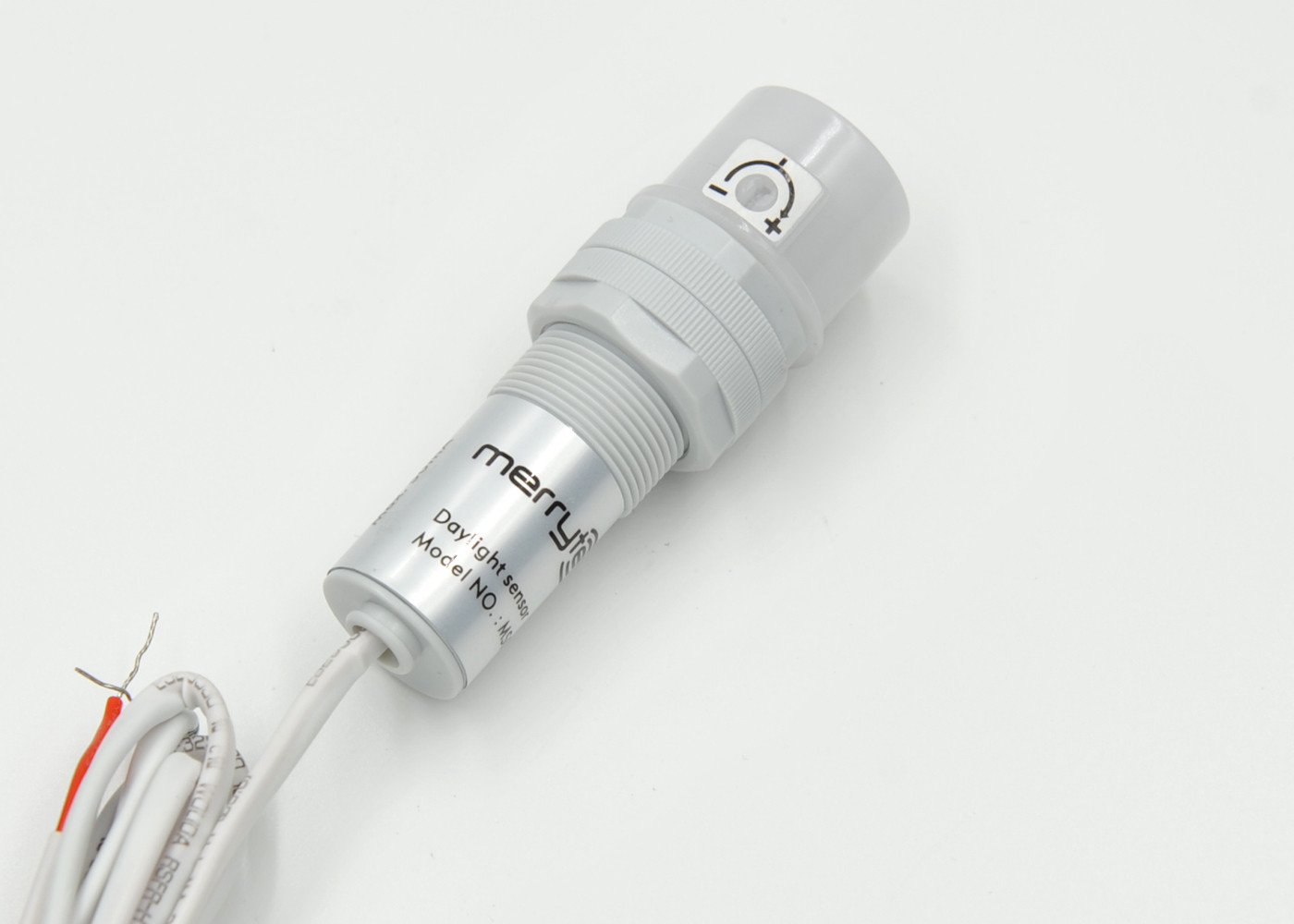

  •   MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V interface and using photocell to measure ambient lux level and automatically calculate how much artificial light is need, and then convert the amount of light to 1-10V dimmable control gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output according to the signal from the daylight sensor.



Function:



Daylight harvesting



Specifications:



Operating voltage

1 - 10Vdc(MS01)

220-240Vac(ML50C2-PV,MC003V)

Max. current sink

50mA(MS01)

700mA(ML50C2-PV)

Dimming range

1％~100％

Output voltage

60Vdc max

Cable length

80Cm

Color coding of cable

Red+, Black-

Detection angle

        90°

IP rating

 IP20

Operation Temperature

 -0℃~45℃(MS01)

-20℃ ~ 50 ℃(ML50C2-PV)

-35℃ ~ 70 ℃(MC003V)







Applications:



Office, Workshop, Warehouse, etc
