Wall Mounted Microwave Motion Sensor MC001S-1With 150° Detection Angle Energy Saving

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MC001S-1
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Max(D×H):16m×8m HF System 5.8GHz ±75MHz, ISM Wave Band
Product Name Microwave Motion Sensor Size (L×W×H) 92x 52 X 25.5 Mm
Approval CE Operation Temperature -30℃~70℃
Function On-off Control IP Rating IP 20
Rated Load 400W (inductive), 1000W (resistive) Operating Voltage 220-240Vac,50HZ
Highlight

microwave sensors for lighting

,

floodlight motion sensor

,

Wall Mounted Microwave Motion Sensor

Leave a Message
Product Description

Wall Mounted Microwave Motion Sensor MC001S-1With 150° Detection Angle Energy Saving





Description:

MC001S-1 is a sensor special for the need of  long-narrow detection ,such as warehouse application ,when 5-6m high wall mounted ,it with a long detection distance for 15m ,can achieve good performace .as an innovative motion sensor, supplies a simple energy-saving solution to use light only when and where you need it. It automatically switches on/off light based on motion and ambient light level.  4-pole press-in terminal (L, N,N, L'), very easy to install.



Features:

1. IP65 design for stand-alone installation

2. With 150° angle for long-narrow detection .

3. 4-pole press-in terminal (L, N, N,L′),easy assembly.

4. 5.8GHz high frequency microwave(C-Band license-free operation)

5. Automatic switching based on motion and ambient light level.

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Zero-crossing point operation helps protect the sensor against in-rush current.

8.Adopt the lates radar technology for detection



Function:

ON-OFF function

Wall Mounted Microwave Motion Sensor MC001S-1With 150° Detection Angle Energy Saving 0

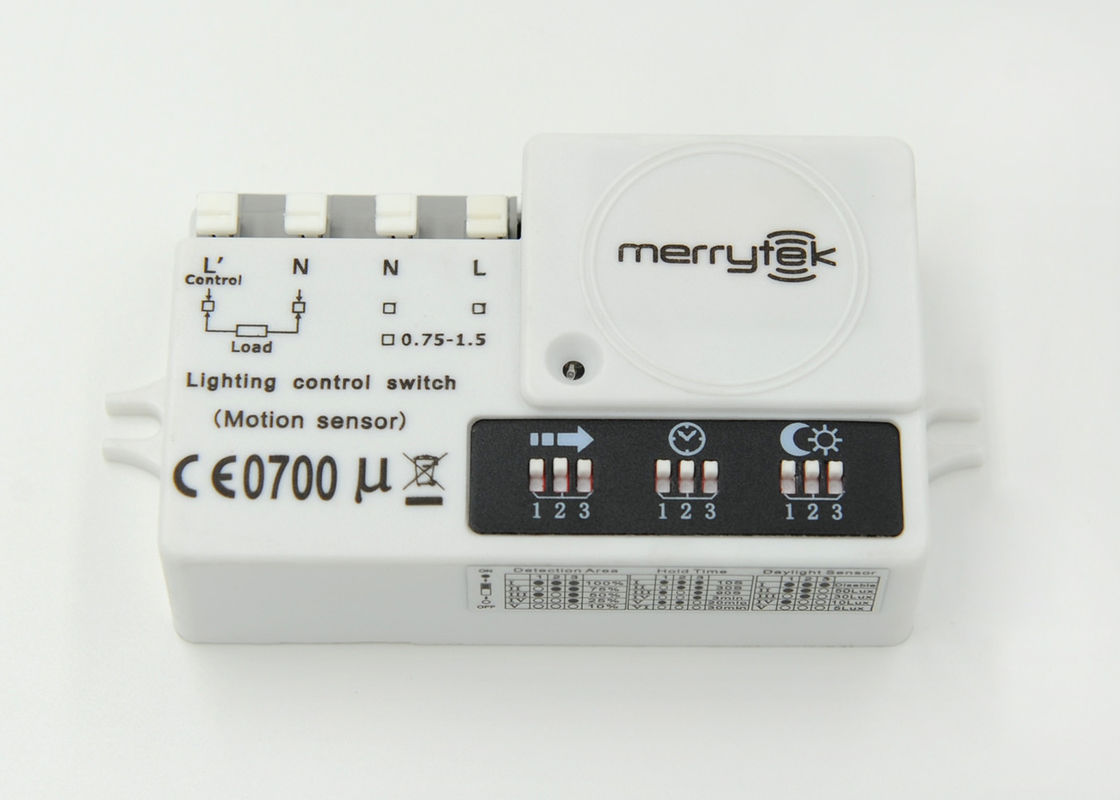

Wall Mounted Microwave Motion Sensor MC001S-1With 150° Detection Angle Energy Saving 1

Specifications:



Operating voltage

220-240Vac, 50Hz

Rated load

400W (inductive), 1000W (resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 15m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-30℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

25%/50%/75%/100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years



Wall Mounted Microwave Motion Sensor MC001S-1With 150° Detection Angle Energy Saving 2



Wiring:

Wall Mounted Microwave Motion Sensor MC001S-1With 150° Detection Angle Energy Saving 3

Applications:

Stairwell, Corridor, Balcony, Pathway, etc
