Unique 15M Range Microwave Motion Sensor 4 - Pole Press - In Terminal

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MC001S
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Approval CE
Operation Temperature -30℃~70℃ Rated Load 400W (inductive), 1000W (resistive)
Function On-off Control IP Rating IP 20
Operating Voltage 220-240Vac,50HZ Detection Max(D×H):16m×8m
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 92x 52 X 25.5 Mm
High Light

microwave sensors for lighting

,

rf motion sensor

,

15M Range Microwave Motion Sensor

Leave a Message
Product Description

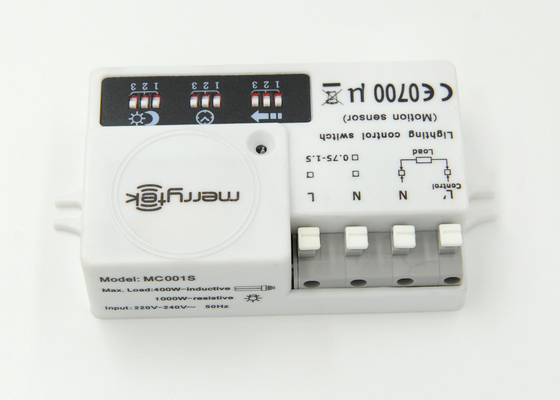

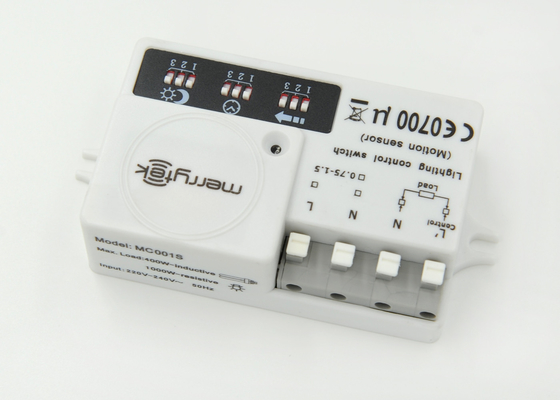

Unique 15M Range Microwave Motion Sensor 4 - Pole Press - In Terminal



Description:

1. Automatic switching based on motion and ambient light level.

2. Unique design for wall mounting application .

3. 4-pole press-in terminal (L, N, N,L′),easy assembly.

4. 5.8GHz high frequency microwave(C-Band license-free operation)

5. Zero-crossing point operation helps protect the sensor against in-rush current.

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. MC001S is an innovative motion sensor, supplies a simple energy-saving solution to use light only when and where you need it. It is special for wall mounting ,with long detection range up to 15m at 6m mounting height .



Function:

ON-OFF function

Unique 15M Range Microwave Motion Sensor 4 - Pole Press - In Terminal 0

Detection Pattern:



Unique 15M Range Microwave Motion Sensor 4 - Pole Press - In Terminal 1



Unique 15M Range Microwave Motion Sensor 4 - Pole Press - In Terminal 2

Specifications:



Operating voltage

220-240Vac, 50Hz

Rated load

400W (inductive), 1000W (resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(R x H)

15m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation)

IP rating

IP20

Operation temperature

-30℃~70℃

Hold time

5S/3min/10min/20min/30min/disable

Detection sensitivity

25%/50%/75%/100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years





Unique 15M Range Microwave Motion Sensor 4 - Pole Press - In Terminal 3



Wiring:



Unique 15M Range Microwave Motion Sensor 4 - Pole Press - In Terminal 4



Applications:



Stairwell, Corridor, Balcony, Pathway, etc
