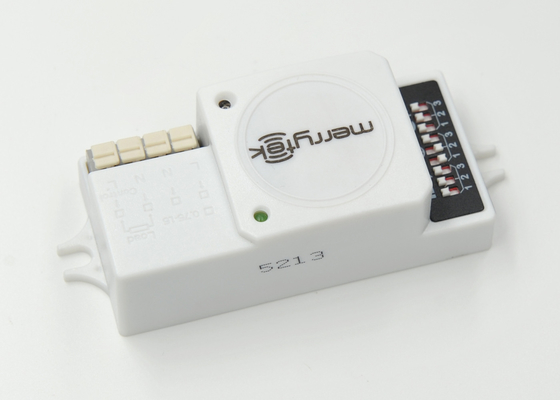

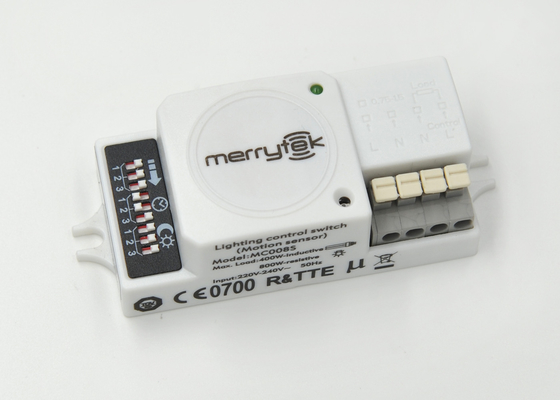

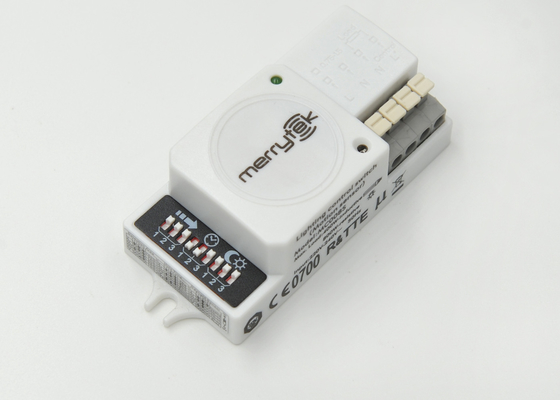

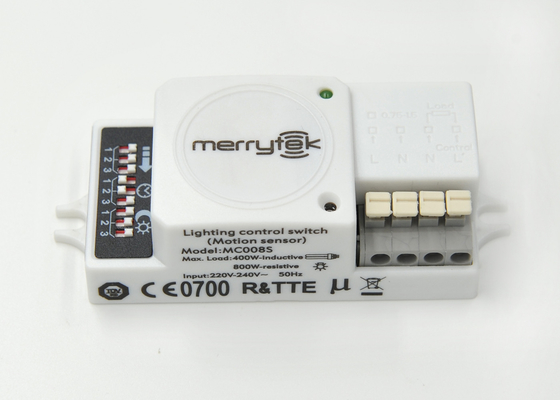

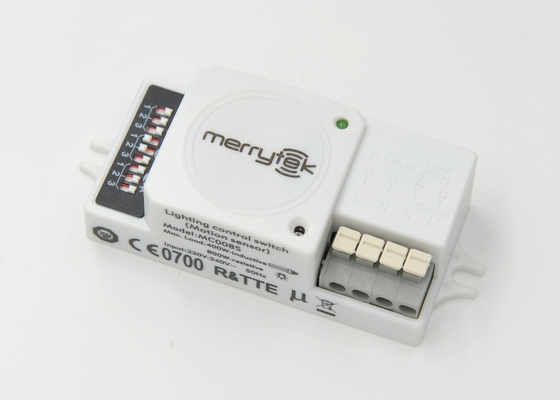

Microwave Motion Sensor MC008S / Wide detection Area / 5 Years Warranty / On-off Function

Place of Origin China
Brand Name Merrytek
Certification TUV, CE & R&TTE
Model Number MC008S
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model No. MC008S Product Name Microwave Motion Sensor
Size (L×W×H) 82x36.5x 25.5 Mm Approval TUV ,CE , R&TTE
Operation Temperature -20℃~60℃ Rated Load 400W (inductive), 1000W (resistive)
Function On-off Control Operating Voltage 220-240Vac,50HZ
IP Rating IP 20 Detection Max(D×H):12m×6m
Highlight

microwave sensors for lighting

,

floodlight motion sensor

,

Wide Detection Area Microwave Motion Sensor

Leave a Message
Product Description

Microwave Motion Sensor MC008S / Wide detection Area / 5 Years Warranty / On-off Function





Description:

MC008S Is An Innovative And Active Motion Detector With HF System 5.8GHz. Motion Can Be Detected

Through Plastic, Glass And Thin Non-Metal Materials.

The Sensor Supplies A Simple Energy Saving Solution To Use Light Only When And Where You Need It. It

Automatically Switches On/Off Light Based On Motion And Ambient Light Level.

Can Control All Kinds Of Lamps, For Example, Halogen, Fluorescent And LED Lights. Compact Size And Small

Casing, Suitable To Fix Within Most Luminaires. 4-Pole Press-In Terminal (L, N, N, L'), Very Easy To Install.

The High Quality Relay Is Particularly Suitable For Commercial Use With Switching Power Up To 400W ForLEDs

And Fluorescent Lamps And Up To 800W For Incandescent Lamps.



Feartures:

1. Buit-in daylight sensor and motion sensor

2. Speical for built-in installation

3.  With easy loop in and loop out

4. Zero-crossing point operation helps protect the sensor against in-rush current..

5. 5.8GHz high frequency microwave(C-Band license-free operation)

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. MC008S E is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.



Function:

ON-OFF function

Microwave Motion Sensor MC008S / Wide detection Area / 5 Years Warranty / On-off Function 0



Detection Patter:

Microwave Motion Sensor MC008S / Wide detection Area / 5 Years Warranty / On-off Function 1



Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

Inductive :400W,Resistive : 800W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

10s / 30s / 90s / 3min / 20min / 30min

Detection sensitivity

10% / 25% / 50% / 75% / 100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years



Microwave Motion Sensor MC008S / Wide detection Area / 5 Years Warranty / On-off Function 2



Microwave Motion Sensor MC008S / Wide detection Area / 5 Years Warranty / On-off Function 3

Applications:

Stairwell, Corridor,Balcony, Pathway, etc
