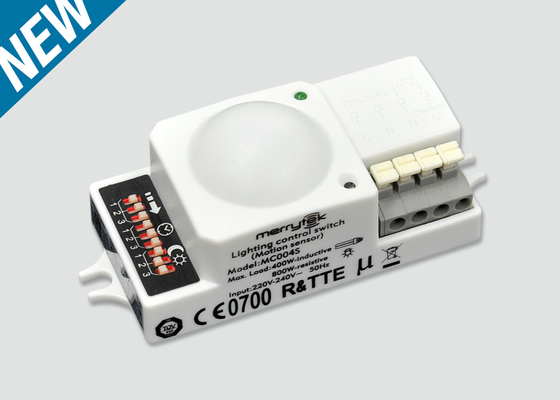

Microwave Motion Sensor MC004S / On-off Contro /Support Load 400W (Inductive) / 82x36.5x 25.5 mm

  • Microwave Motion Sensor MC004S / On-off Contro /Support Load 400W (Inductive) / 82x36.5x 25.5 mm
Place of Origin China
Brand Name Merrytek
Certification TUV, CE & R&TTE
Model Number MC004S
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
HF System 5.8GHz ±75MHz, ISM Wave Band Product Name HF Motion Sensor
Size (L×W×H) 82x36.5x 25.5 Mm Approval TUV ,CE , R&TTE
Operation Temperature -20℃~60℃ Rated Load 400W (inductive), 1000W (resistive)
Function On-off Control Operating Voltage 220-240Vac,50HZ
IP Rating IP 20 Detection Max(D×H):12m×6m
Highlight

microwave sensors for lighting

,

rf motion sensor

,

On Off Control Microwave Motion Sensor
Leave a Message
Product Description

Microwave Motion Sensor MC004S / On-off Contro /Support  Load 400W (Inductive) / 82x36.5x 25.5 mm





Description:

MC004S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.



Features:

1. With compact size of 82x36.5x 25.5 mm

2. Lifetime:50,000H

3.  4-pole press-in terminal (L, N, N,L′),easy assembly

4. Zero-crossing point operation helps protect the sensor against in-rush current..

5. 5.8GHz high frequency microwave(C-Band license-free operation)

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Hold time:10s / 30s / 90s / 3min / 20min / 30min

8.Dection sensitivity:10% / 25% / 50% / 75% / 100%

9.Daylight sensor :5lux / 10lux / 30lux / 50lux / Disable



Function:

ON-OFF function

Microwave Motion Sensor MC004S / On-off Contro /Support Load 400W (Inductive) / 82x36.5x 25.5 mm 0



Detection Patter:

Microwave Motion Sensor MC004S / On-off Contro /Support Load 400W (Inductive) / 82x36.5x 25.5 mm 1



Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

Inductive :400W,Resistive : 800W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

10s / 30s / 90s / 3min / 20min / 30min

Detection sensitivity

10% / 25% / 50% / 75% / 100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years



Microwave Motion Sensor MC004S / On-off Contro /Support Load 400W (Inductive) / 82x36.5x 25.5 mm 2



Microwave Motion Sensor MC004S / On-off Contro /Support Load 400W (Inductive) / 82x36.5x 25.5 mm 3

Applications:

Stairwell, Corridor,Balcony, Pathway, etc
