IP65 Rating Microwave Motion Sensor MC042S / Independent Installation / On-off Control 200w

Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC042S
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
HF System 5.8GHz ±75MHz, ISM Wave Band Product Name Microwave Motion Sensor
Size (L×W×H) 115x35x 25.5 Mm Approval CE , R&TTE
Operation Temperature -35℃~70℃ Rated Load 200W (inductive)
Function On-off Control Operating Voltage 220-240Vac,50HZ
IP Rating IP 65 Detection Max(D×H):12m×6m
High Light

rf motion sensor

,

floodlight motion sensor

,

Independent Installation Microwave Motion Sensor

Leave a Message
Product Description

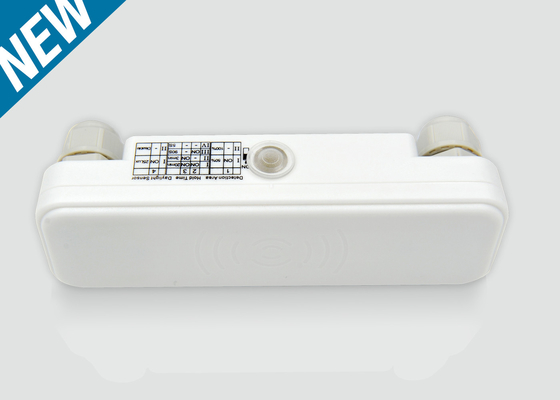

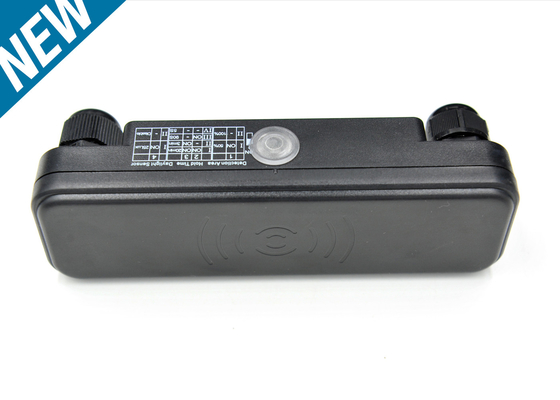

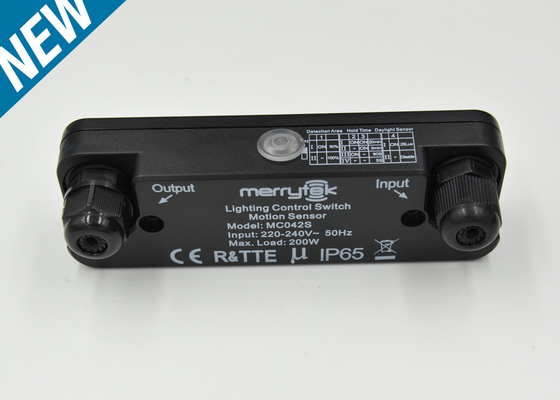

IP65 Rating Microwave Motion Sensor MC042S / Independent Installation / On-off Control 200w





Description:

MC042S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Motion can be detected through plastic, glass and thin non-metal materials.



Because of high quality microwave motion sensor and programming ,the product shows high anti-interference capability on breeze and light rain .



This sensor is special for flood light application .



1. Automatic switching based on motion and ambient light level.

2. Compact size makes it suitable to fix within most luminaires.

3.  4-pole press-in terminal (L, N, N,L′),easy assembly

4. Zero-crossing point operation helps protect the sensor against in-rush current..

5. 5.8GHz high frequency microwave(C-Band license-free operation)

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.



Product Information :





Function:

ON-OFF function

IP65 Rating Microwave Motion Sensor MC042S / Independent Installation / On-off Control 200w 0

Wiring:

IP65 Rating Microwave Motion Sensor MC042S / Independent Installation / On-off Control 200w 1



Detection Patter:

IP65 Rating Microwave Motion Sensor MC042S / Independent Installation / On-off Control 200w 2



Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

Inductive :200W,Resistive : 800W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP65

Operation temperature

-35℃~70℃

Hold time

5s / 90s / 3min / 20min

Detection sensitivity

50% / 100%

Daylight sensor

25lux / Disable

Life time

50,000 hours

Guaranty

5 years







IP65 Rating Microwave Motion Sensor MC042S / Independent Installation / On-off Control 200w 3

Applications:

Stairwell, Corridor,Balcony, Pathway, etc



IP65 Rating Microwave Motion Sensor MC042S / Independent Installation / On-off Control 200w 4
