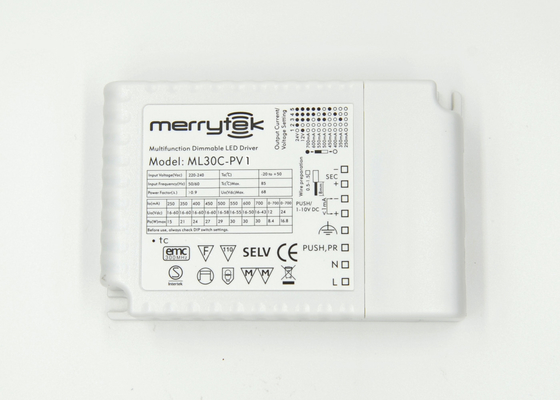

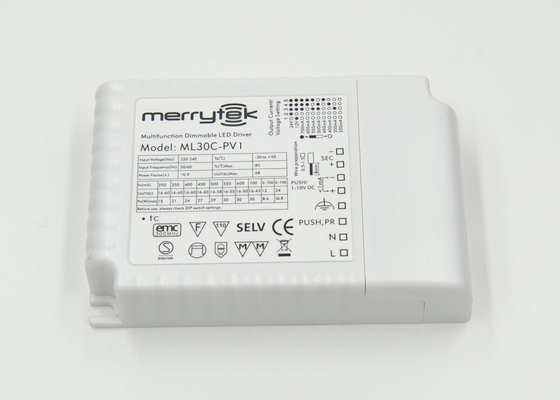

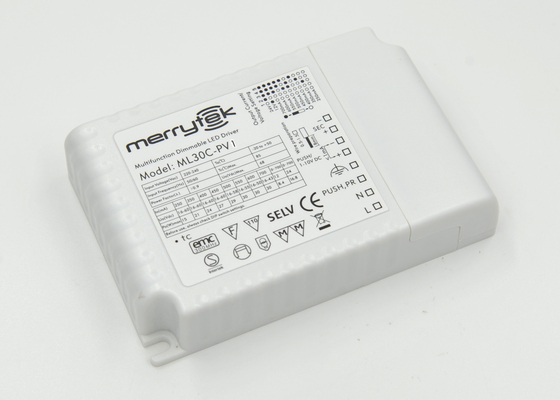

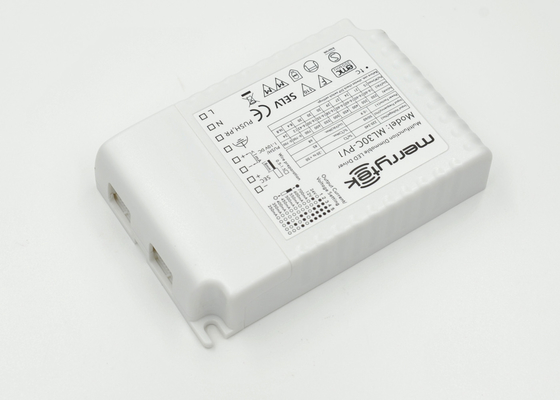

1x30W PUSH / 1-10V Dimmable LED Driver , 250 – 700mA Electronic LED Driver

  • 1x30W PUSH / 1-10V Dimmable LED Driver , 250 – 700mA Electronic LED Driver
  • 1x30W PUSH / 1-10V Dimmable LED Driver , 250 – 700mA Electronic LED Driver
  • 1x30W PUSH / 1-10V Dimmable LED Driver , 250 – 700mA Electronic LED Driver
  • 1x30W PUSH / 1-10V Dimmable LED Driver , 250 – 700mA Electronic LED Driver
Place of Origin China
Brand Name Merrytek
Certification SEMKO /CE
Model Number ML30C-PV1
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit.
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Dimming Led Driver Output Load 30W Max
Output Current 250mA-700mA Output Voltage 60Vdc Max
Efficiency ≥85% Input Currenct 0.16A Max
Certification CE,SEMKO Protection Class IP20
Life Time 50000
High Light

led light driver

,

700ma dimmable led driver

,

1x30W Push Dimmable LED Driver
Leave a Message
Product Description

ML30C-PV1 German terminal 1x30W PUSH / 1-10V Dimmable LED Driver 250 – 700mA 103x67x22mm for LED Panel light



Features

1, German press-in terminals at input and output side,conveninent for wire connection.

2, DIP switch design is for different current and voltage selecting, maximum current up to 700mA. Different LED light can chose the same model LED driver, save cost for purchasing and inventory management.

3, Three kinds of dimming mode: 1-10V dimming,Primary push dim,Secondary push dim.

4, Customized label support is available.

5, With top circuit design, AC-DC-DC, no flicker.

6, Jumper design for switching different dimming modes, it is very convenient to select suitable.

dimming mode as you required.

7, Synchronization: thanks to the MCU programme, up to 15pcs drivers should be controlled by the

same switch. This means there is no need for any additional synchrony wire in larger installations.

where many drivers should be controlled by one switch.

8, Memory function: The driver has built-in permanent memory against power failure. Lights can

return to previous dimming level when switch off and on again, even at mains restores.

9, Maximum length of the cable, from switch to last driver is 20m.

10, Factory setting: 100% dimming level and 250mA output.

11, Reset the LED dirver easily by a jumper.

12, Protection: Short circuit / Over voltage / Over temperature.

13, 5 years guaranty



Mechanical Specification







1x30W PUSH / 1-10V Dimmable LED Driver , 250 – 700mA Electronic LED Driver 0



Specifications



1x30W PUSH / 1-10V Dimmable LED Driver , 250 – 700mA Electronic LED Driver 1







Applications



For LED panel light, LED down light, led strip, led tube etc…





Wire diagram



1x30W PUSH / 1-10V Dimmable LED Driver , 250 – 700mA Electronic LED Driver 2
