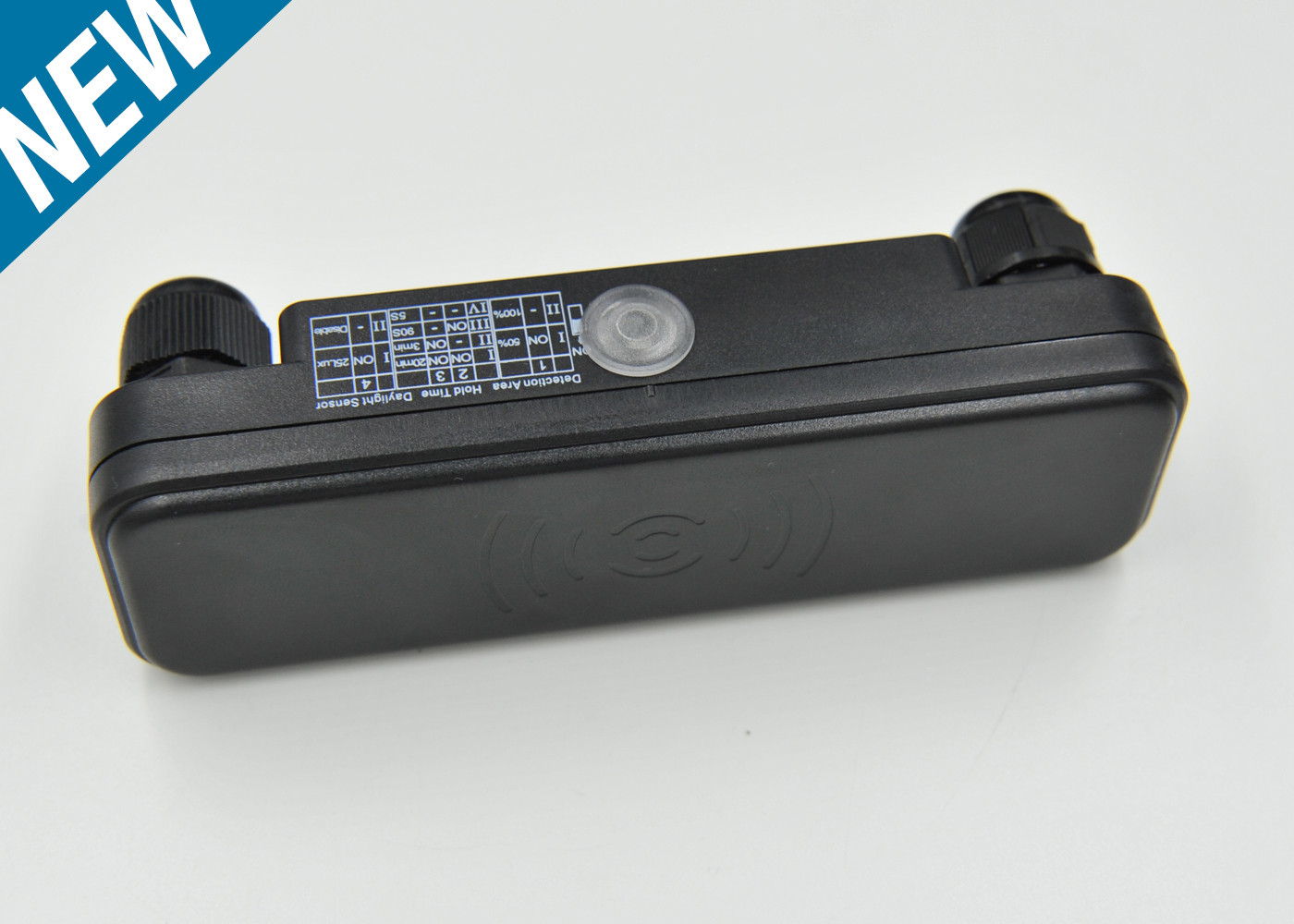

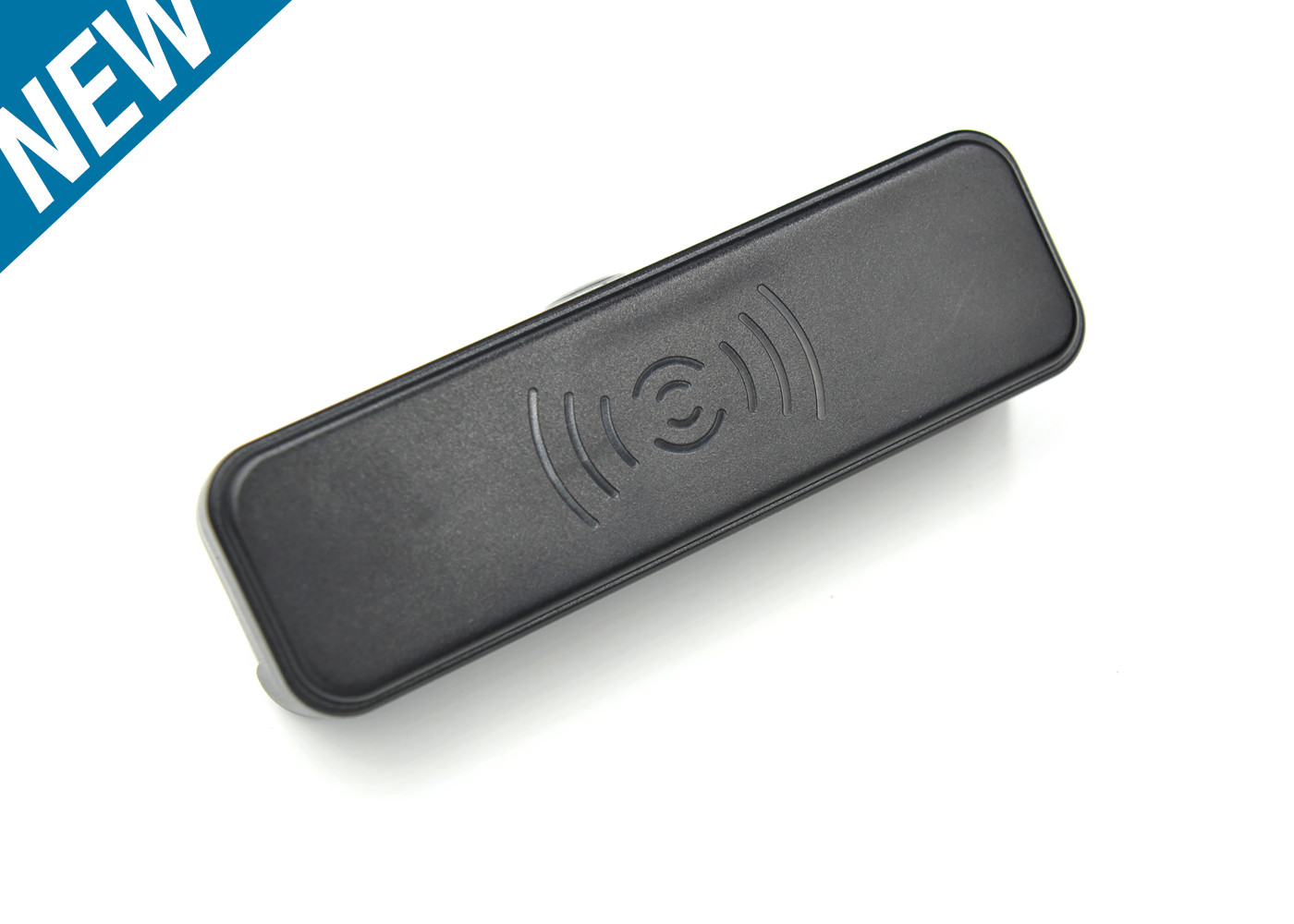

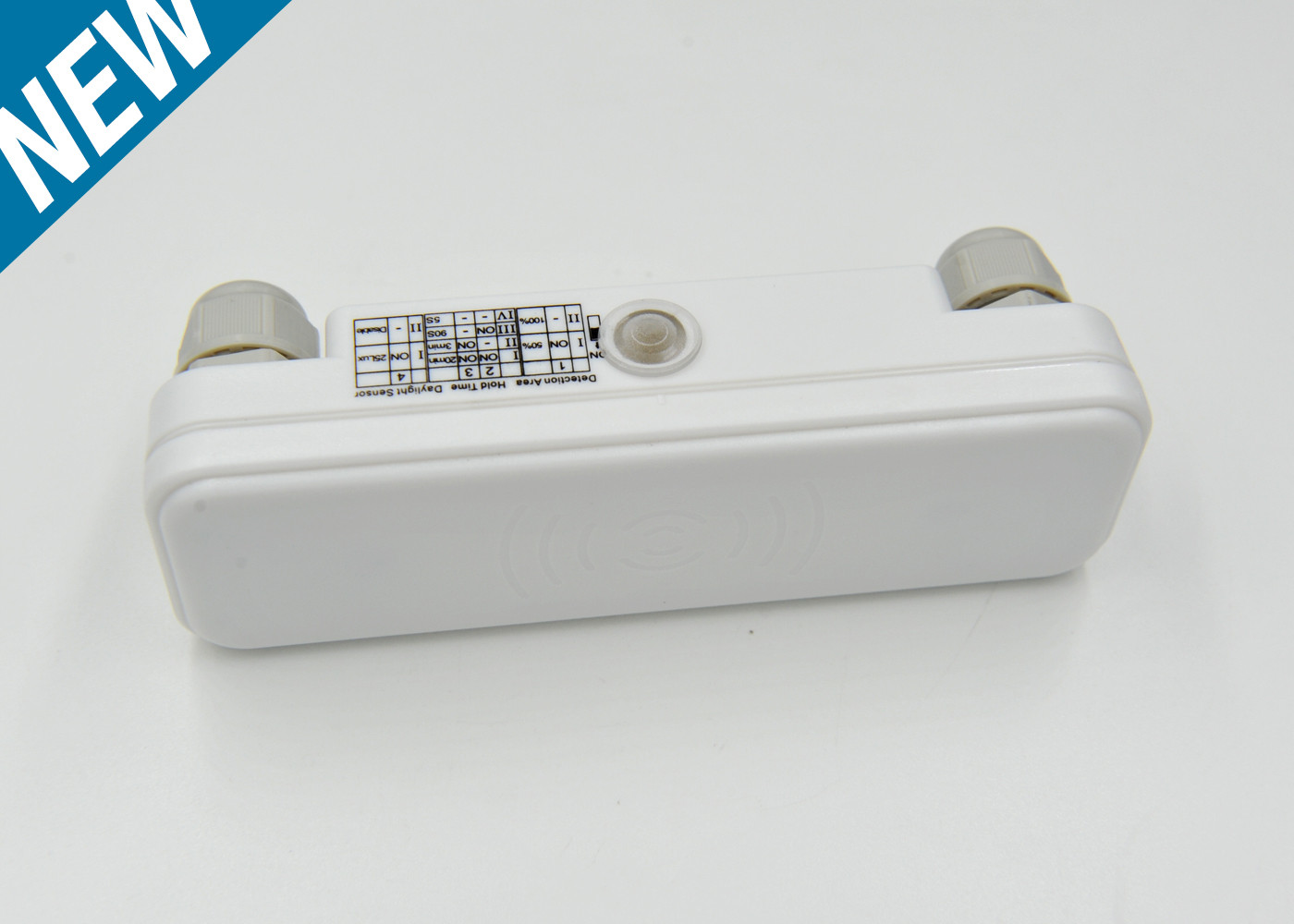

Anti - Interference IP65 Rating Microwave Motion Sensor for COB Flood Light

IP65 Rating Microwave Motion Sensor MC042P / Independent Installation / Night/ Light Function  for COB Flood Light


Description:

As use of Merrytek new 4th generation microwave motion detection technology, strong anti-interference capability on breeze and light rain, it's suitable fro outdoor application.

MC042P is special for COB flood light  to get dimming funciton.

MC042P is an innovative and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.

The sensor supplies a simple energy-saving solution to use light only when and where you need it. It automatically switch on/off and dim light based on motion , can be applicable to super thin flood light.

Night-light sensor function will be triggered when dimming level reach to 10%,when ambient brightless is over preset close lux level,sensor will switch off lamp,if less than preset open lux level,lamp will be switched on automatically.

Feature
1. With 5.8G Hz microwave technology, stable detection performance and long life time.
2. Strong anti-interference capacity for raindrop and breeze, suitable for outdoor use.
3. Water proof sensor with IP65 rating.
4. Long detection area up to 10m with wall mounting.
5. Compact housing design, can be applicable to super thin flood light.
6. Automatic switching and dimming based on motion and light level.
7. With night /light function, automatically switch on at dusk and turn off at dawn
8. Zero-crossing point operation helps protect the sensor against in-rush current.
9. Detection area, hold time can be set via DIP switches easily.

Product Information :


Function:
Night / Light  function


Wiring:


Detection Patter:


Specifications:


Setting



Applications:
Stairwell, Corridor,Balcony, Pathway, etc
