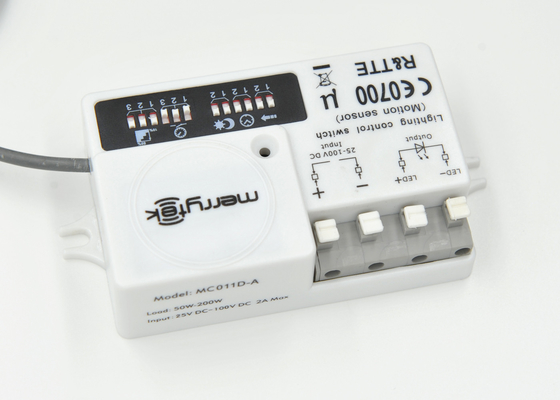

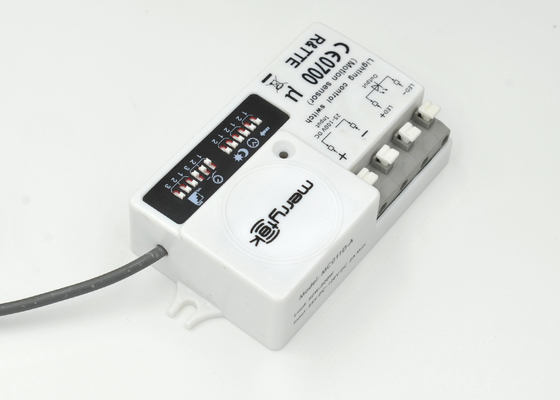

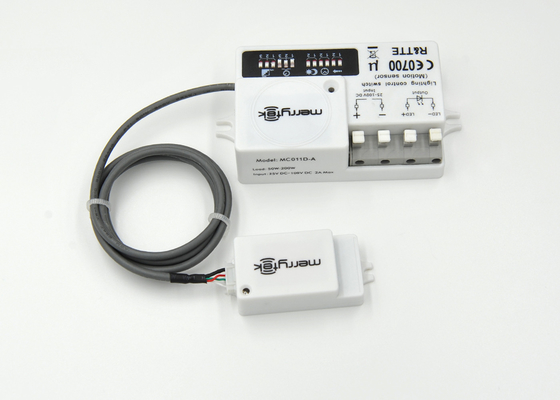

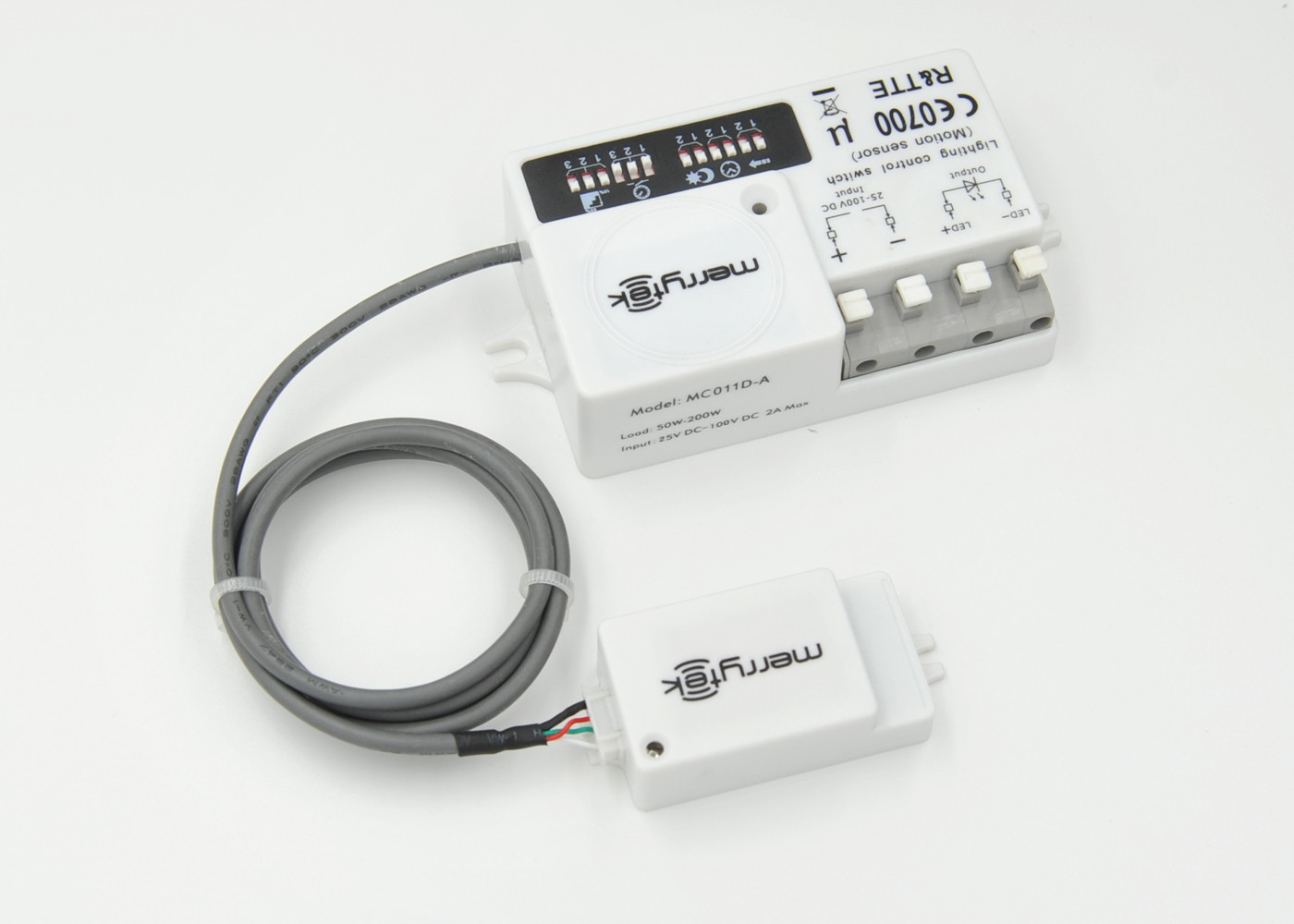

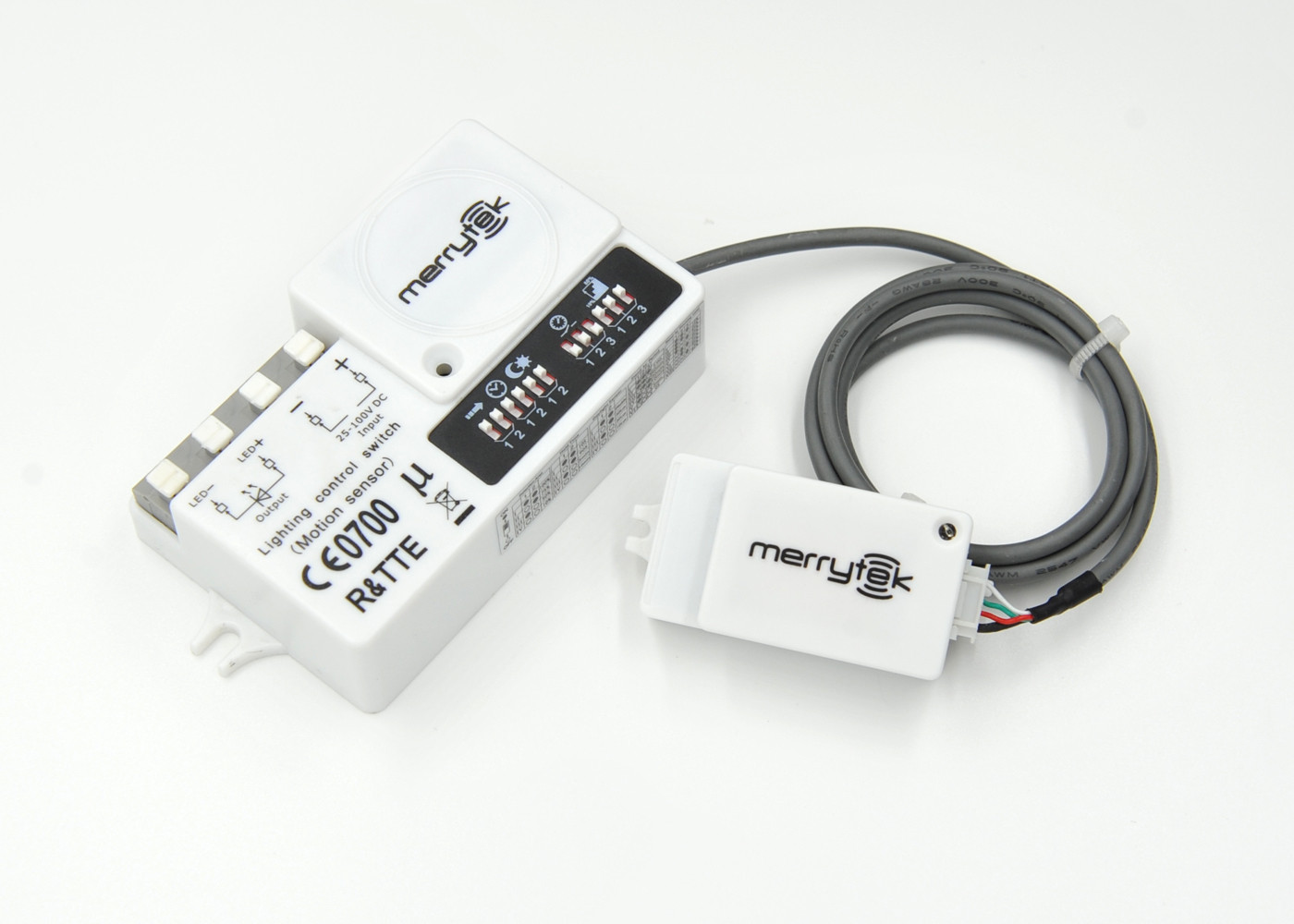

DC Operating Motion Sensor MC011D /A with Split Sensor for 200W Max LED Light
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE , R&TTE |
| Model Number | MC011D/A |
| Minimum Order Quantity | Stop production, not available. |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or western Union |
| Supply Ability | 20,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage | 25-100Vdc | Rated Load | Max. 200W LED Light |
|---|---|---|---|
| Operating Current | 2A Max | HF System | 5.8GHz ±75MHz，ISM Wave Band |
| Approvals | CE & R&TTE | Detection Zone | Max(D×H):16m×6m |
| Operation Temperature | -25℃~75℃ | Function | 2 Step Dimming/ On Off Function |
| IP Rating | IP20 | ||
| High Light | indoor light motion sensor,motion detection sensor,DC Motion Sensor With Split Sensor |
||
Product Description
DC Operating Motion Sensor MC011D /A with Split Sensor for 200W Max LED Light
Description
MC011D/A is an innovation and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.
The sensor provides a simple and cost-effective sensor DIM solution. With DC operation voltage from LED driver, no need extra power from power line. No DALI or 1-10V dimmable LED drivers it is suitable for common LED drivers and achieve 3-step dimming function. Particularly suitable for price sensitive luminaires.
The sensor adopts a unique gradual dimming mode. Slowly and softly dimming supply the comfortable vision for users.
Feature:
1. Automatic dimming when used in combination with comman current LED drivers or ballasts.
2. Built-in adjustable daylight sensor.
3. 4-pole press-in terminal (L,N,N,L′),easy assembly.
4. Compact size makes it suitable to fix within most luminaries
5. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
6. Wide detection area, range up to 16m in diameter.
Product Information
Function:
On off function
2- Step dimming function
3-step dimming function
Wiring
Specifications:
|
Operating voltage |
DC 25-100V |
| Rated load | Max.200W LED light |
| Operating current | 2A max |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation Temperature |
-25℃~70℃ |
|
Hold time |
10s/1min/3min/10min |
| Daylight sensor | 10lux/30lux/50lux/Disable |
|
Detection sensitivity |
10%/50%/75%/100% |
|
Dimming level |
10%/20%/30%/40%/50%/60%/70%/80% |
| Mounting height | 6m Max |
| Stand-by period | 0s/5min/10min/30min/60min/Disable |
|
Life time |
50000 hours |
|
Guaranty |
5 years |
Detection Pattern
Applications:
Stairwell, corridor, balcony, pathway, et
