12-24VDC Dimmable Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function

Basic Information
Place of Origin: China
Brand Name: Merrytek
Certification: CE , R&TTE
Model Number: MC011D6
Minimum Order Quantity: Stop production, not available.
Price: Negotiation
Packaging Details: Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms: T/T or western Union
Supply Ability: 20,000pcs per Month
Detail Information
Operating Voltage: 12-24Vdc Rated Load: Max. 120W LED Light
Operating Current: 5A Max HF System: 5.8GHz ±75MHz,ISM Wave Band
Approvals: CE & R&TTE Detection Zone: Max(D×H):16m×6m
Operation Temperature: -25℃~75℃ Function: 2 Step Dimming/ On Off Function
IP Rating: IP20
High Light:

indoor light motion sensor

,

high frequency sensor

,

24VDC Dimmable Motion Sensor


Product Description

12-24VDC Operating Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function



Description





The sensor adopts a unique gradual dimming mode. Slowly and softly dimming supply the comfortable vision for users.





MC011D6 is an innovation and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.



The sensor provides a simple and cost-effective sensor DIM solution. With DC operation voltage from LED driver, no need extra power from power line. No DALI or 1-10V dimmable LED drivers it is suitable for common LED drivers and achieve 3-step dimming function. Particularly suitable for price sensitive luminaires.







Feature:

1. Automatic dimming when used in combination with comman current LED drivers or ballasts.

2. Built-in adjustable daylight sensor.

3. 4-pole press-in terminal (L,N,N,L′),easy assembly.

4. Compact size makes it suitable to fix within most luminaries

5. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

6. Wide detection area, range up to 16m in diameter.



Product Information

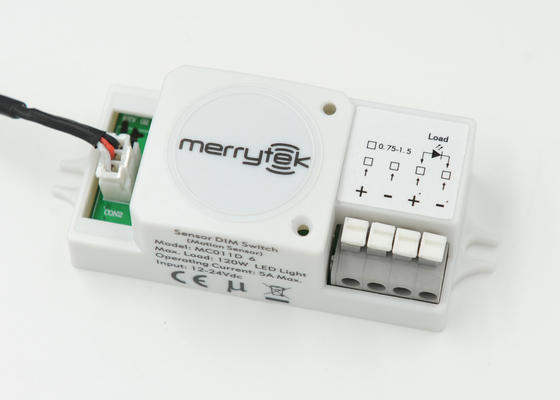

12-24VDC Dimmable Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function 0

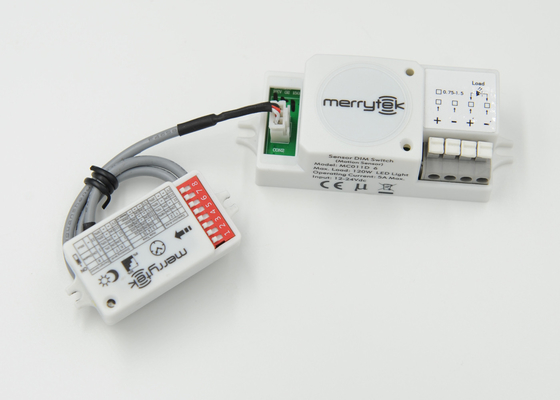

12-24VDC Dimmable Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function 1



Function:



On off function

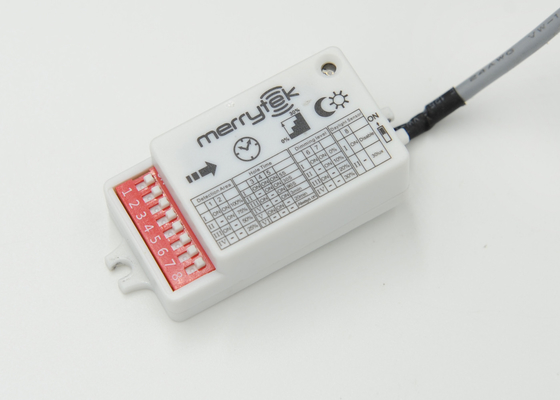

12-24VDC Dimmable Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function 2



2- Step dimming function

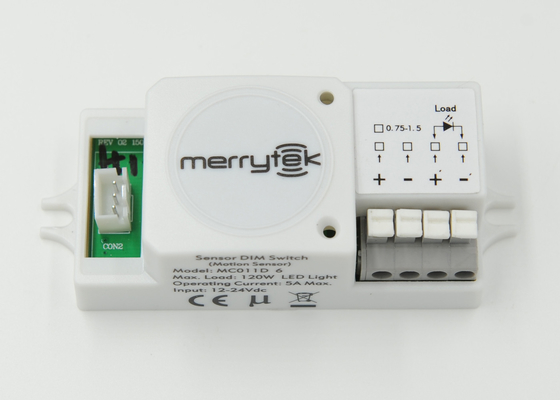

12-24VDC Dimmable Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function 3



Wiring

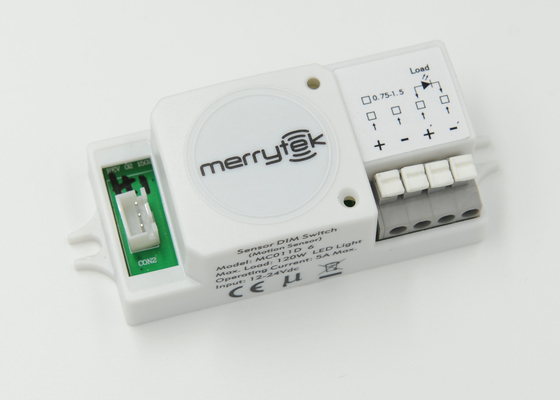

 12-24VDC Dimmable Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function 4



Specifications:

Operating voltage

DC 12-24V

Rated load Max.120W LED light
Operating current 5A max

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-25℃~70℃

Hold time

5s/30s/90s/3min/20min/Always on

Daylight sensor 30lux/Disable

Detection sensitivity

25%/50%/75%/100%

Dimming level

0%/10%/20%/30%

Mounting height 6m Max

Life time

50000 hours

Guaranty

5 years



12-24VDC Dimmable Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function 5

Detection Pattern

12-24VDC Dimmable Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function 6



Applications:

Stairwell, corridor, balcony, pathway, et
