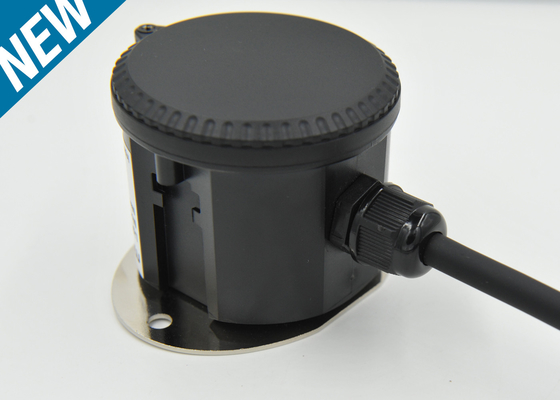

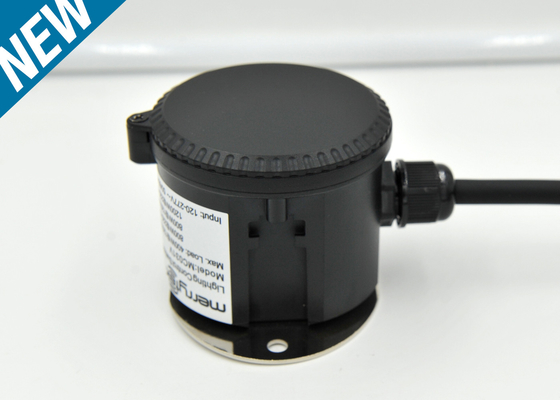

MC054V RC B IP65 Rating Waterproof Motion Sensor With Remote Control Function
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | UL |
| Model Number | MC054V RC B |
| Minimum Order Quantity | Stop production, not available. |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or western Union |
| Supply Ability | 20,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production Name | IP65 Rating Microwave Motion Sensor | Operation Voltage | 120-277Vac |
|---|---|---|---|
| Bracket | Oval Surface Mounted Bracket | Road Load | 120Vac 4A Electronic/magnetic Ballast 277Vac 3A Electronic/magnetic Ballast |
| Transmitting Power | ＜0.5mW(1% Of Transmitting Power For Cell Phone) | Detection Zone | Max(D×H):16m×15m |
| Operation Temperature | -35℃~70℃ | Function | 2 Step /3 Step Dimming/ On Off Function |
| IP Rating | IP65 | Cover Color | Black Or White |
| Highlight | microwave motion sensor,light motion sensor,IP65 Waterproof Motion Sensor |
||
Product Description
MC054V RC B IP65 Rating Waterproof Motion Sensor with remote control function
Description
It supports the higher mounting height 15m Max. And it allows energy saving without compromising comfort. When used in combination with 0-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.
The sensor is designed for warehouse use, and special oval surface mounted bracket can support for ceiling mounting.
the 0-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.
Feature
1. Automatic dimming when used in combination with 0-10V dimmable LED drivers or ballasts.
2. Built-in adjustable daylight sensor.0-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
3. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
4. Wide detection area, range up to 16m in diameter and mounting height 15M Max.
5. suitable for high bay because of metal reflector clip.
6. Dimming function or on off function
Product Information
Function
3-step dimming function:
Wiring
Installation:
Specifications
|
Operating voltage |
120-277Vac, 50/60Hz |
|
|
|
Rated load |
120Vac 4A electronic/magnetic ballast;277Vac 3A electronic/magnetic ballast |
|
|
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
|
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
|
|
Transmitting power |
<0.5mW |
|
|
|
Detection zone Max.(D x H) |
16m x 15m |
|
|
|
Motion detection |
0.5~3m/s |
|
|
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
|
|
IP rating |
IP65 |
|
|
|
Operation Temperature |
-35℃~70℃ |
|
|
|
Hold time |
5s/30s/90s/3min/20min/30min |
|
|
|
Detection sensitivity |
50% / 100% |
|
|
|
Daylight sensor |
50lux / 100lux / 200lux / Disable |
|
|
|
Stand-by period |
5s / 5min / 10min / 30min / 1h / Disable |
|
|
|
Stand-by dimming level |
10% / 20% / 30%/ 50% |
|
|
| Life time | 50000hours | ||
Detection pattern
Applications:
Warehouse
