IP65 Waterproof On Off Function Sensor 100W

Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC042P
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Load 100W(inductive) Approval CE
Input Voltage 220-240Vac Sensor Principle Microwave Motion Sensor
Operation Temperature -35℃~50℃ Transmitting Power <0.5mW
Function Dimming Funciton/ Night Light Function HF System 5.8GHz±75MHz, ISM Wave Band
IP Rating IP 65 Detection Max(D×H):10m×3m
Production Name IP65 Rating Microwave Motion Sensor
High Light

motion detection sensor

,

ip65 motion sensor

,

Waterproof On Off Function Sensor

Leave a Message
Product Description

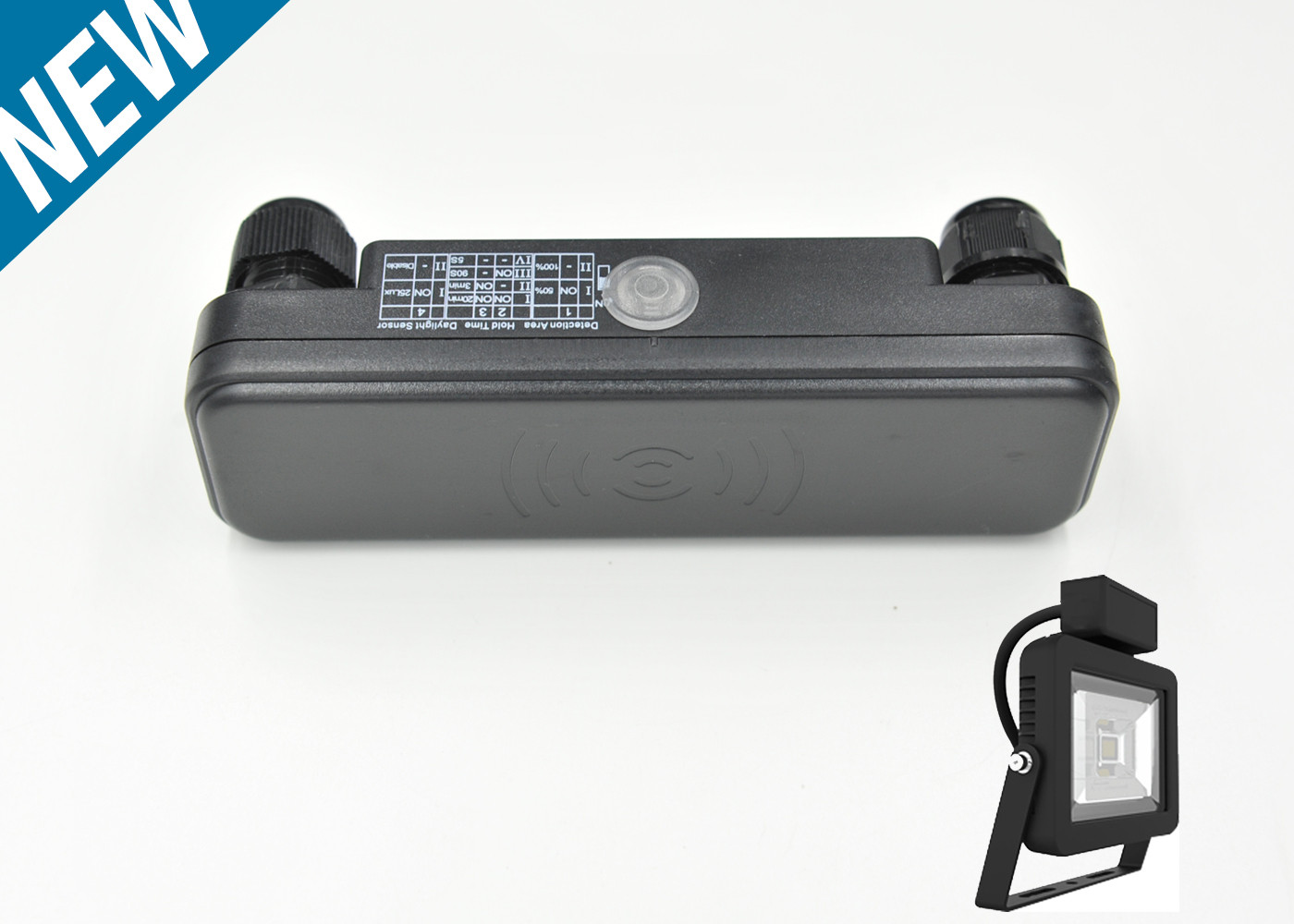

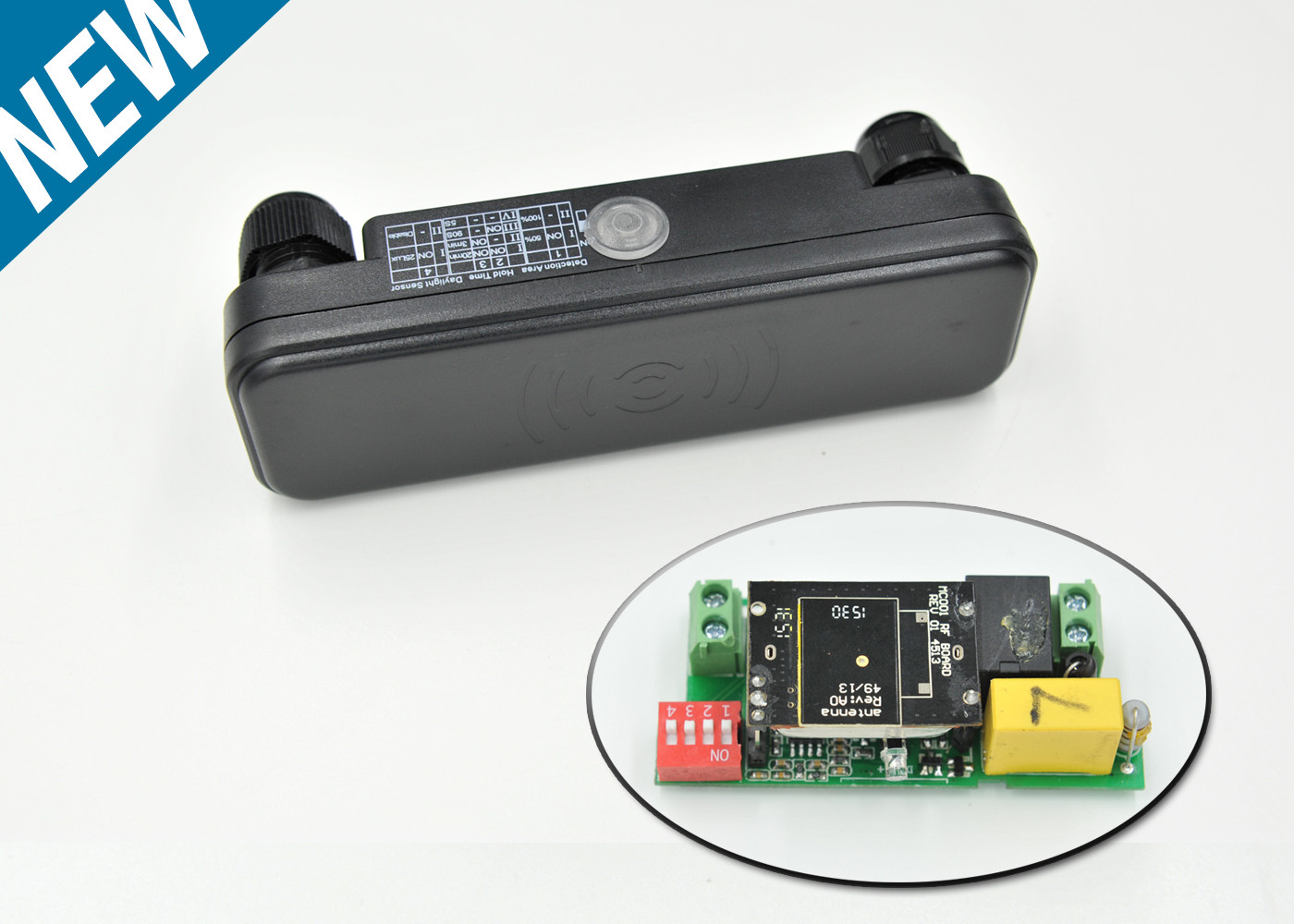

IP65 Waterproof  Microwave Motion Sensor MC042P Night/ Light Function  for COB Flood Light

Description:

The sensor supplies a simple energy-saving solution to use light only when and where you need it. It automatically switch on/off and dim light based on motion , can be applicable to super thin flood light.

Night-light sensor function will be triggered when dimming level reach to 10%,when ambient brightless is over preset close lux level,sensor will switch off lamp,if less than preset open lux level,lamp will be switched on automatically.

As use of Merrytek new 4th generation microwave motion detection technology, strong anti-interference capability on breeze and light rain, it's suitable fro outdoor application.

MC042P is special for COB flood light  to get dimming funciton.

MC042P is an innovative and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.


Feature
1. With 5.8G Hz microwave technology, stable detection performance and long life time.
2. Strong anti-interference capacity for raindrop and breeze, suitable for outdoor use.
3. Water proof sensor with IP65 rating.
4. Long detection area up to 10m with wall mounting.
5. Compact housing design, can be applicable to super thin flood light.
6. Automatic switching and dimming based on motion and light level.
7. With night /light function, automatically switch on at dusk and turn off at dawn
8. Zero-crossing point operation helps protect the sensor against in-rush current.
9. Detection area, hold time can be set via DIP switches easily.

Product Information :
 IP65 Waterproof On Off Function Sensor 100W 0

Function:
Night / Light  function
IP65 Waterproof On Off Function Sensor 100W 1

Wiring:
IP65 Waterproof On Off Function Sensor 100W 2

Detection Patter:
IP65 Waterproof On Off Function Sensor 100W 3

Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

100W max

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

10m x 3m

Motion detection

0.5~3m/s

Detection angle

120°(wall installation) 360°(ceiling installation)

IP rating

IP65

Operation temperature

-35℃~50℃

Hold time

5s /60s / 3min / 5min

Detection sensitivity

100%

Night/ Light function( open/ close)

25lux/50lux, 50lux/100lux, disable

Life time

50,000 hours

Guaranty

5 years


Setting
IP65 Waterproof On Off Function Sensor 100W 4


Applications:
Stairwell, Corridor,Balcony, Pathway, etc

IP65 Waterproof On Off Function Sensor 100W 5
