Motion Detection On Off Function Sensor

Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC042S
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240Vac, 50Hz Rated Load 200W(inductive)
HF System 5.8GHz ±75MHz, ISM Wave Band Approval CE , R&TTE
Operation Temperature -35℃~70℃ Production Name IP65 Waterpoof Micrwave Motion Sensor
Function On-off Control Transmitting Frequency <0.5mW(1% Of Transmitting Power For Ceiling Light)
IP Rating IP 65 Detection Max(D×H):12m×6m
High Light

indoor light motion sensor

,

motion detection sensor

,

Motion Detection On Off Function Sensor

Leave a Message
Product Description

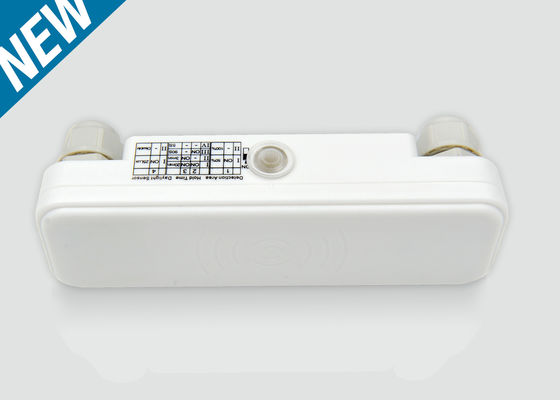

MC042S Independent  Waterproof Installation Microwave Motion Sensor / On-off Control 200w for Flood Light





Description:



As MC042s is used Merrytek new 4th generation microwave detection technology and with high quality microwave motion sensor and programming ,the product shows high anti-interference capability on breeze and light rain



Special design, it is suitable for flood light.



MC042S is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Motion can be detected through plastic, glass and thin non-metal materials.





Feature:

1. Automatic switching based on motion and ambient light level.

2. Compact size makes it suitable to fix within most luminaires.

3.  4-pole press-in terminal (L, N, N,L′),easy assembly

4. Zero-crossing point operation helps protect the sensor against in-rush current..

5. 5.8GHz high frequency microwave(C-Band license-free operation)

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Water proof sensor with IP65 rating

8. Strong-anti-intergerence capcacity for raindrop and breeze, suitable for outdoor use.



Product Information :

Motion Detection On Off Function Sensor 0



Function:

ON-OFF function

Motion Detection On Off Function Sensor 1

Wiring:

Motion Detection On Off Function Sensor 2



Detection Patter:

Motion Detection On Off Function Sensor 3



Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

Inductive :200W

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

10m x 6m

Motion detection

0.5~3m/s

Detection angle

120°(wall installation) 360°(ceiling installation)

IP rating

IP65

Operation temperature

-35℃~70℃

Hold time

5s / 90s / 3min / 20min

Detection sensitivity

50% / 100%

Daylight sensor

25lux / Disable

Life time

50,000 hours

Guaranty

5 years







Motion Detection On Off Function Sensor 4

Applications:

Stairwell, Corridor,Balcony, Pathway, etc



Motion Detection On Off Function Sensor 5
