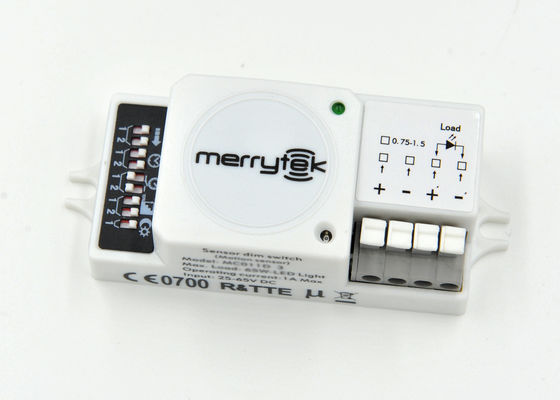

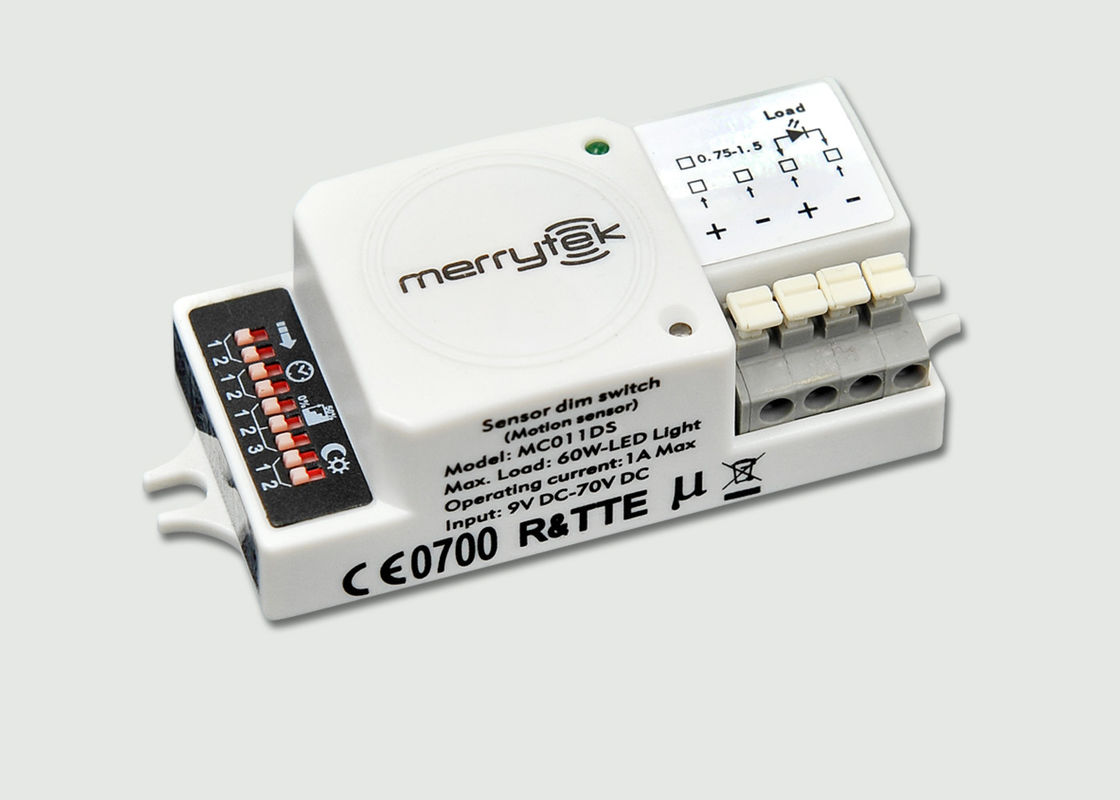

Microwave Motion Sensor MC011DS / Movement Detector On-Off Control With DC 3-36v Operated

Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC011DS
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
HF System 5.8GHz ±75MHz, ISM Wave Band Product Name Microwave Motion Sensor
Size (L×W×H) 82x36.5x 25.5 Mm Approval CE , R&TTE
Operation Temperature -20℃~60℃ Rated Load 36W LED
Function On-off Control Operating Voltage 220-240Vac,50HZ
IP Rating IP 20 Detection Max(D×H):12m×6m
High Light

rf motion sensor

,

floodlight motion sensor

,

On Off Control Microwave Movement Detector

Leave a Message
Product Description

Microwave Motion Sensor MC011DS / Movement Detector On-off Control With DC 3-36v Operated





Description:

MC011DS Has The Same Specification As MC008S, Except The Different DC Input.

The Sensor Supplies A Simple Energy-Saving Solution To Use Light Only When And Where You Need It.

It Automatically Switches On/Off Light Based On Motion And Ambient Light
Level. Can Control LED Lights.

Compact Size And Small Casing, Suitable To Fix Within Most Luminaries.

The High Quality Relay Is Particularly Suitable For Commercial Use With Switching

Power Up To 36W For LED (Voltage 36V DC Current : 1A Max.)



Features:

1. 3-36Vdc Operated for high power factor.

2. ON-Off function ,light on when you need light .

3.  4-pole press-in terminal (L, N, N,L′),easy assembly

4. Zero-crossing point operation helps protect the sensor against in-rush current..

5. 5.8GHz high frequency microwave(C-Band license-free operation)

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Compact size makes it suitable to fix within most luminaires.

8. Automatic switching based on motion and ambient light level.

9. MC011DS is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.



Function:

ON-OFF function

Microwave Motion Sensor MC011DS / Movement Detector On-Off Control With DC 3-36v Operated 0



Detection Patter:

Microwave Motion Sensor MC011DS / Movement Detector On-Off Control With DC 3-36v Operated 1



Wiring :

Microwave Motion Sensor MC011DS / Movement Detector On-Off Control With DC 3-36v Operated 2



Specifications:

Operating voltage

3-36vdc, 50Hz

Rated load

36w LED

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-20℃~60℃

Hold time

10s / 30s / 90s / 3min / 20min / 30min

Detection sensitivity

10% / 25% / 50% / 75% / 100%

Daylight sensor

5lux / 10lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years



Microwave Motion Sensor MC011DS / Movement Detector On-Off Control With DC 3-36v Operated 3



Microwave Motion Sensor MC011DS / Movement Detector On-Off Control With DC 3-36v Operated 4

Applications:

Stairwell, Corridor,Balcony, Pathway, etc
