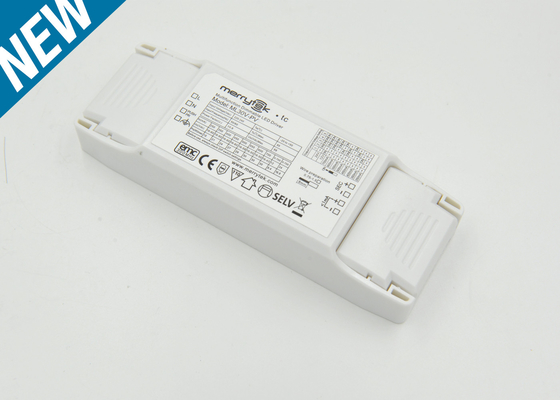

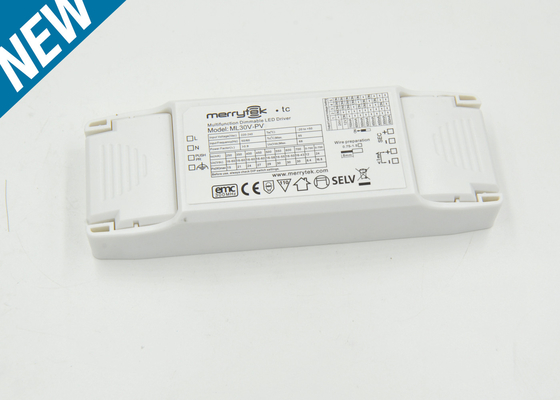

No Flicker 12V LED Constant Voltage Driver 30w

  • No Flicker 12V LED Constant Voltage Driver 30w
  • No Flicker 12V LED Constant Voltage Driver 30w
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML30V-PV
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit.
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Constant Voltage 1-10V And PUSH DIM LED Driver 30w 12Vdc Output Load 30W Max
Output Current 2.5A Max Output Voltage 12Vdc
Efficiency ≥85% Certification CE
Protection Class IP20 Life Time 50000
Dimming Mode 0-10V,1-10V ,Push
High Light

triac dimmable driver

,

high power led driver

,

No Flicker LED Constant Voltage Driver
Leave a Message
Product Description

ML30V-PV Constant Voltage 1-10V and PUSH DIM LED Driver 30w 12Vdc 150x52x30mm


Description

1, Dimming mode include 0-10V,1-10V,Push dim.
2, With top circuit design, AC-DC-DC, no flicker.

3, Press-in terminals in primary and secondary side, easy assembly.
4, Output voltage:12Vdc.

5, Ouput power: 30w Max

6, Output current: 2.5A max
7, Synchronization: thanks to the MCU programme, up to 15pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.
8, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.
9, Maximum length of the cable, from switch to last driver is 20m.
10, Factory setting: 100% dimming level.
11, Protection: Short circuit / Over voltage / Over temperature.
12, 50,000 hours life time,5 years warranty.


Mechanical Specification



No Flicker 12V LED Constant Voltage Driver 30w 0



No Flicker 12V LED Constant Voltage Driver 30w 1


Specifications


Model NO.

ML30V-PV

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

Stand-by power

≤0.5W

Max. output voltage

12V DC

Output

Output current

12V DC, 2.5A max.

Voltage accuracy

±5%

Rated power

30W Max.

Dimming mode

0-10V,1-10V, PUSH

Dimming

Dimming range

0%-100%

Working temperature

-25℃~50℃

Environment

Storage temperature

-40℃~80℃

Insulation class

Class II, SELV

Safety and EMC

Withstand voltage

Input-Output: 3.75kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

Short circuit

Protection mode: Auto recovery

Protection

Over temperature

Protection mode: Auto recovery

Dimension

202x58x40mm

Others

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 6-hole press-in type terminal(L, L, N, N)
Output: Screw terminal block (LED +, LED -) , (1-10V+,1-10V-) , (1-10V+,1-10V-)

Life time

50,000h

Certification

CE

Packing

Bubble bag +  cardboard + Carton





Applications



For LED panel light, LED down light, led strip, led tube etc…



Wire diagram



No Flicker 12V LED Constant Voltage Driver 30w 2
