Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc

  • Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc
  • Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc
  • Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc
  • Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc
Place of Origin China
Brand Name Merrytek
Certification TUV
Model Number MLC16C-P
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Current 300mA/350mA Selectable By Dip Switches Product Name Sensor Driver 16w Corridor Function
Output Voltage 28-48Vdc Working Mode Auto On-off,Auto Dimming
Output Power 16w Max Efficiency ≥80%
Power Factor ≥0.9 Size(D X H) 78 X 28.5mm
High Light

low voltage led driver

,

high efficiency led driver

,

Constant Voltage Compact Motion Sensor
Leave a Message
Product Description

MLC16C-P Sensor driver 16w 300mA/350mA integrated with sensor dimming function



Description



1, Output power: 16w max.

2, Output current: 300mA,350mA set via dip sw.itches.

3, Output voltage: 28-48Vdc.

4, Working mode: Auto switch on/off,or dimming by motion and ambient brightness level.

5, HF system: 5.8GHz±75MHz,ISM wave band.

6, Transmitting power: ≤0.5mW.

7, Power consumption: ≤1w(Stand-by).

8, Detection zone(D x H): 16m x 6m.

9, Detection sensitivity: 10%,50%,75%,100% set via dip switches.

10, Hold time: 5s,90s,3min,10min set via dip switches.

11, Corridor function:0s,30s,10min,disable set via dip switches.

12, Daylight sensor: 5Lux,15Lux,50Lux,set via by dip switches.

13, Stand-by dimming level: 20%.

14, Mounting height: 6m max.

15, IP rating: IP 20.

16, Designed esp. for ceiling lamp.

17, Integrate Microwave sensor and dimmable led driver technology,save labour cost for installation.



Mechanical Specification

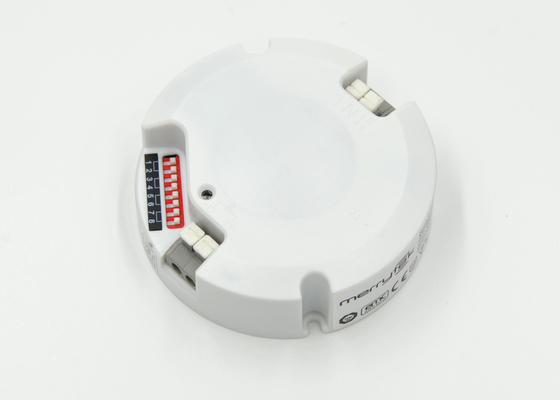

Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc 0

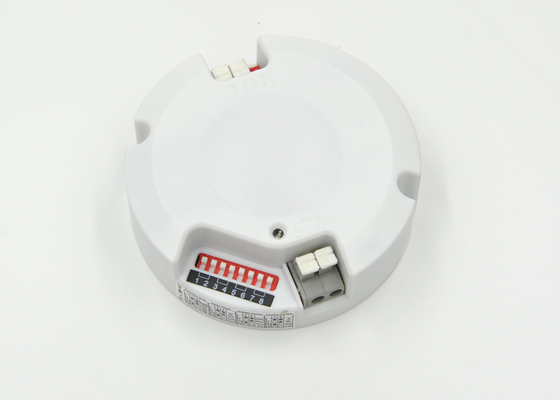

Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc 1



Functions

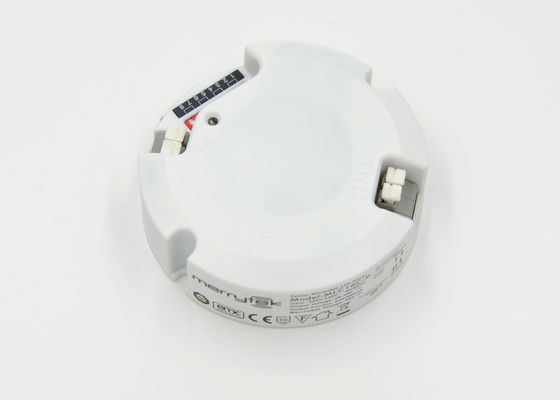

Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc 2

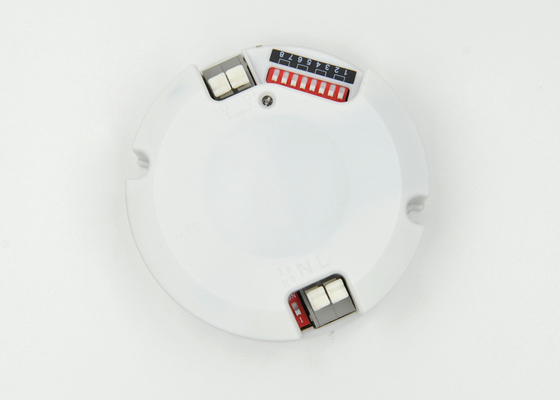

Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc 3



Specifications



Operating voltage

220-240Vac, 50Hz

Output power

16w max

Output current

300mA/350mA set via dip switch
Output voltage 28-48Vdc

Power consumption

≤1W(standby)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation  Temperature

 -25℃~45℃

Hold time

5s / 90s / 3min/ 10min

Detection sensitivity

10%  / 50% / 75% / 100%

Daylight sensor

5lux / 15lux  / 50lux / Disable

Stand-by period

0s / 3min / 10min  / Disable

Stand-by dimming level

20%
Life time 30,000 hours
Guaranty 3 years



Application



Ceiling lamp,bulk head in corridor balcony,stairway,underground passage



Wire diagram



Compact Motion Sensor Constant Voltage Dimmable LED Driver 16w 28 - 48Vdc 4
