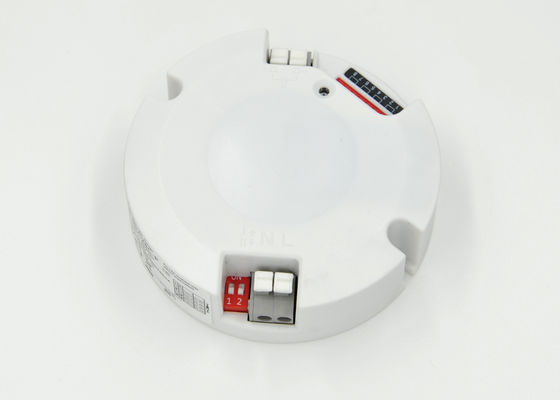

Integrate Microwave Sensor Driver 28w 450mA / 550mA / 600mA / 700mA

Place of Origin China
Brand Name Merrytek
Certification TUV
Model Number MLC28C-P
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sensor Driver 16w Corridor Function Output Power 28w Max
Output Current 450mA / 550mA / 600mA / 700mA Selectable By Dip Switches Output Voltage 22-40Vdc
Working Mode Auto On-off,Auto Dimming Efficiency ≥80%
Power Factor ≥0.9 Size(D X H) 82 X 28.5mm
Highlight

high efficiency led driver

,

LED Panel Light Driver

,

Integrate Microwave Sensor Driver

Leave a Message
Product Description

MLC28C-P Sensor driver 28w 450mA / 550mA / 600mA /700mA integrated with sensor dimming function 82x28.5mm



Description



1, Integrate Microwave sensor and dimmable led driver technology,save labour cost for installation.

2, Designed esp. for ceiling lamp.

3, Working mode: Auto switch on/off,or dimming by motion and ambient brightness level.

4, Output power: 28w max.

5, Output current: 450mA,550mA,600mA,700mA set via dip sw.itches.

6, Output voltage: 22-40Vdc.

7, HF system: 5.8GHz±75MHz,ISM wave band.

8, Transmitting power: ≤0.5mW.

9, Power consumption: ≤1w(Stand-by).

10, Detection zone(D x H): 16m x 6m.

11, Detection sensitivity: 10%,50%,75%,100% set via dip switches.

12, Hold time: 5s,90s,3min,10min set via dip switches.

13, Corridor function:0s,30s,10min,disable set via dip switches.

14, Daylight sensor: 5Lux,15Lux,50Lux,set via by dip switches.

15, Stand-by dimming level: 20%.

16, Mounting height: 6m max.

17, IP rating: IP 20.



Mechanical Specification



Integrate Microwave Sensor Driver 28w 450mA / 550mA / 600mA / 700mA 0

Integrate Microwave Sensor Driver 28w 450mA / 550mA / 600mA / 700mA 1



Functions



Integrate Microwave Sensor Driver 28w 450mA / 550mA / 600mA / 700mA 2

Integrate Microwave Sensor Driver 28w 450mA / 550mA / 600mA / 700mA 3



Specifications



Operating voltage

220-240Vac, 50Hz

Output power

28w max

Output current

450mA/550mA/600mA/700mA set via dip switch

Output voltage 22-40Vdc

Power consumption

≤1W(standby)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation  Temperature

-25℃~45℃

Hold time

5s / 90s / 3min/ 10min

Detection sensitivity

10%  / 50% / 75% / 100%

Daylight sensor

5lux / 15lux  / 50lux / Disable

Stand-by period

0s / 3min / 10min  / Disable

Stand-by dimming level

20%

Life time 30,000 hours
Guaranty 3 years



Application



Ceiling lamp,bulk head in corridor balcony,stairway,underground passage



Wire diagram



Integrate Microwave Sensor Driver 28w 450mA / 550mA / 600mA / 700mA 4
