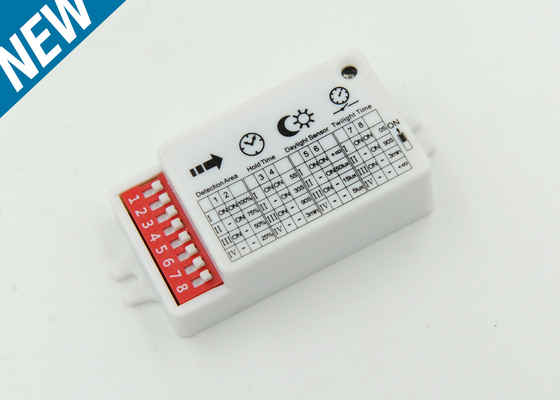

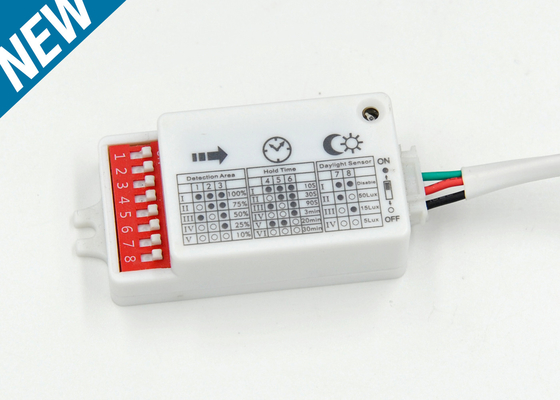

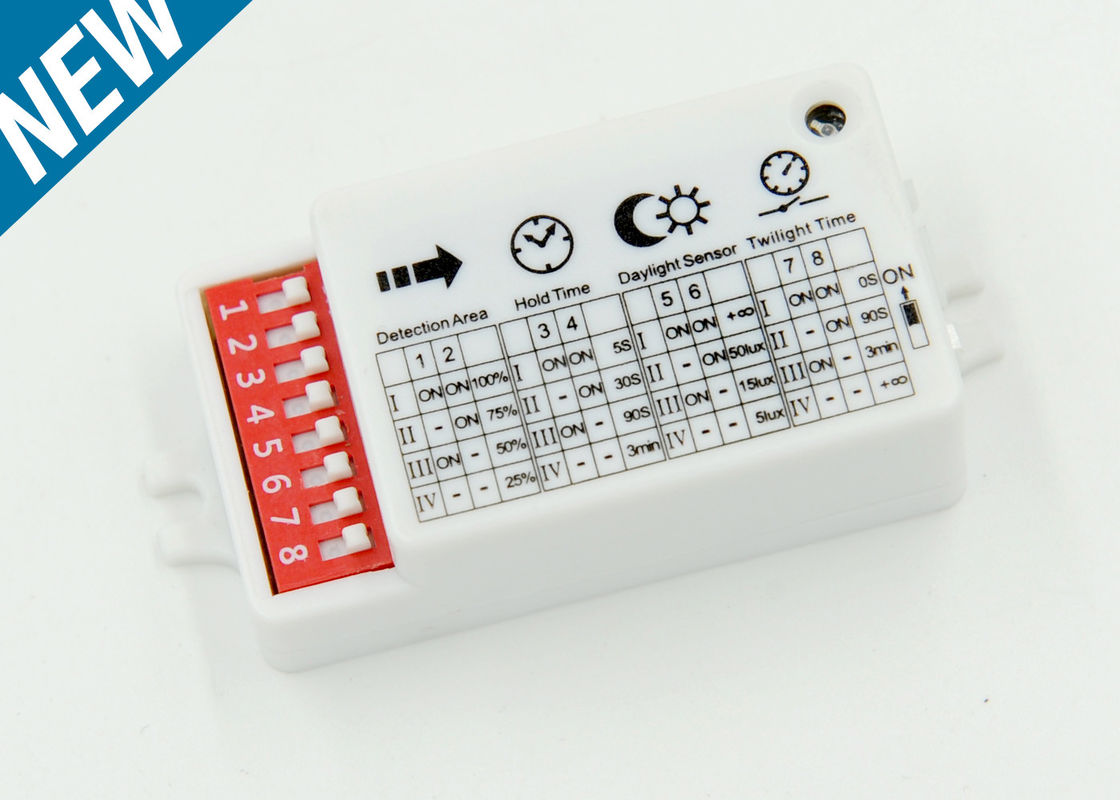

12v DC Microwave Motion Senosr With 5vdc Signal Output , Long Range Motion Sensor

  • 12v DC Microwave Motion Senosr With 5vdc Signal Output , Long Range Motion Sensor
  • 12v DC Microwave Motion Senosr With 5vdc Signal Output , Long Range Motion Sensor
  • 12v DC Microwave Motion Senosr With 5vdc Signal Output , Long Range Motion Sensor
Place of Origin China
Brand Name Merrytek
Certification CE & R&TTE
Model Number MC002D6
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor HF System 5.8GHz ±75MHz, ISM Wave Band
Operating Voltage 12Vdc Detection Max(D×H):12m×9m
Approval CE , R&TTE Operation Temperature -25℃~70℃
Function On-off Control IP Rating IP20
High Light

microwave sensors for lighting

,

rf motion sensor

,

12v DC Microwave Motion Sensor
Leave a Message
Product Description

12v DC Microwave Motion senosr MC002D6 for 5vdc Signal Output, Long Detection Range To 12m





Description:

MC002D6 is a DC input microwave motion sensor, will output 5vdc signal output . it is a compact sensor module for unival match ,with high-low voltage signal & PMW signal ,suggested mount height 3-4m .



1. 12Vdc input, output 5vdc Signal

2. High quality microwave motion sensor, can detect slight movement.

3. High sensitivity and normal sensitivity mode selectable.

4. 5.8GHz high frequency microwave(C-Band license-free operation)

5. Transmitting power:05mW Max .

6. Built in motion sensor and daylight sensor ,automatically switch on and off based on motion and light level .

7. IP20 ,for built-in installation .



12v DC Microwave Motion Senosr With 5vdc Signal Output , Long Range Motion Sensor 012v DC Microwave Motion Senosr With 5vdc Signal Output , Long Range Motion Sensor 1

Function:

ON-OFF function



12v DC Microwave Motion Senosr With 5vdc Signal Output , Long Range Motion Sensor 2



Specifications:

Input

 12Vdc +/- 2Vdc

Rated voltage

12vdc

HF system

5.8GHz+/-75Hz, ISM wave band

Transmitting power

<0.5mW

Stand-by power

≤1W

Working mode

High-low voltage signal & PMW

Mounting height

3-4m ,6m Max.

Detection sensitivity

25% /50%/75%/100%, set via DIP switch

Hold time

5s/30s/90s/3min

Daylight threshold

Disable/50lux/5lux, set via DIP switch

Detection range



150°(wall installation)

360°(ceiling installation)

Operating temperature

 -25℃~70℃

IP rating

IP20

Life time

50,000h

Certification

 CE




Applications:

Corridor, etc
