16 - 28V Panel Light Microwave Movement Sensor Driver 8w 300mA Approved CE

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MLC08C-P
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sensor Driver 18w Corridor Function Output Power 8w Max
Output Current 300mA Output Voltage 16-28Vdc
Working Mode Auto On-off,Auto Dimming Efficiency ≥80%
Power Factor ≥0.9 Size 90 X 54.5 X 16 Mm
Highlight

low voltage led driver

,

LED Panel Light Driver

,

Panel Light Microwave Movement Sensor

Leave a Message
Product Description

MLC08C-P Sensor driver 8w 300mA integrated with sensor dimming function 90 x 54.5mm x 16mm



Description



1, Designed esp. for 300x300mm Panel light in washing room.

2, Integrate Microwave sensor and dimmable led driver technology,save labour cost for installation.

3, Working mode: Auto switch on/off,or dimming by motion and ambient brightness level.

4, Output power: 8w max.

5, Output current: 300mA

6, Output voltage: 16-28Vdc.

7, HF system: 5.8GHz±75MHz,ISM wave band.

8, Transmitting power: ≤0.5mW.

9, Power consumption: ≤1w(Stand-by).

10, Detection zone(D x H): 12m x 6m.

11, Detection sensitivity: 10%,50%,75%,100% set via dip switches.

12, Hold time: 10s,90s,3min,10min set via dip switches.

13, Corridor function:0s,30s,10min,disable set via dip switches.

14, Daylight sensor: 5Lux,15Lux,50Lux,set via by dip switches.

15, Stand-by dimming level: 20%.

16, Mounting height: 6m max.

17, IP rating: IP 20.



Mechanical Specification

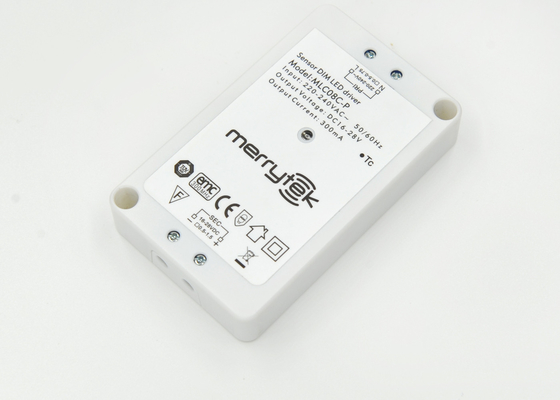

16 - 28V Panel Light Microwave Movement Sensor Driver 8w 300mA Approved CE 0

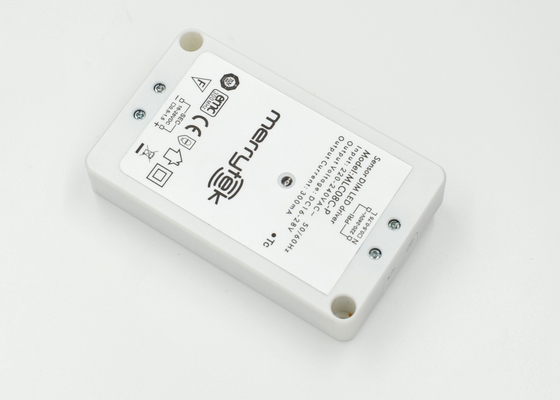

16 - 28V Panel Light Microwave Movement Sensor Driver 8w 300mA Approved CE 1

Functions

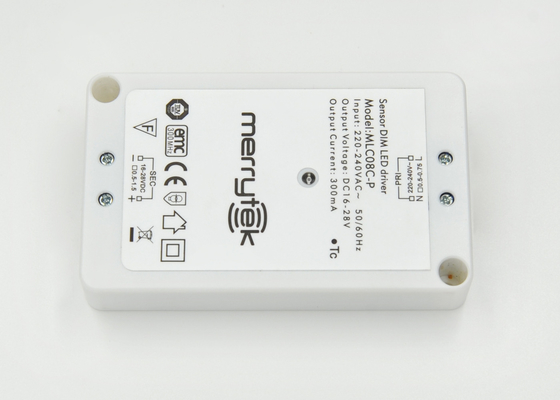

16 - 28V Panel Light Microwave Movement Sensor Driver 8w 300mA Approved CE 2

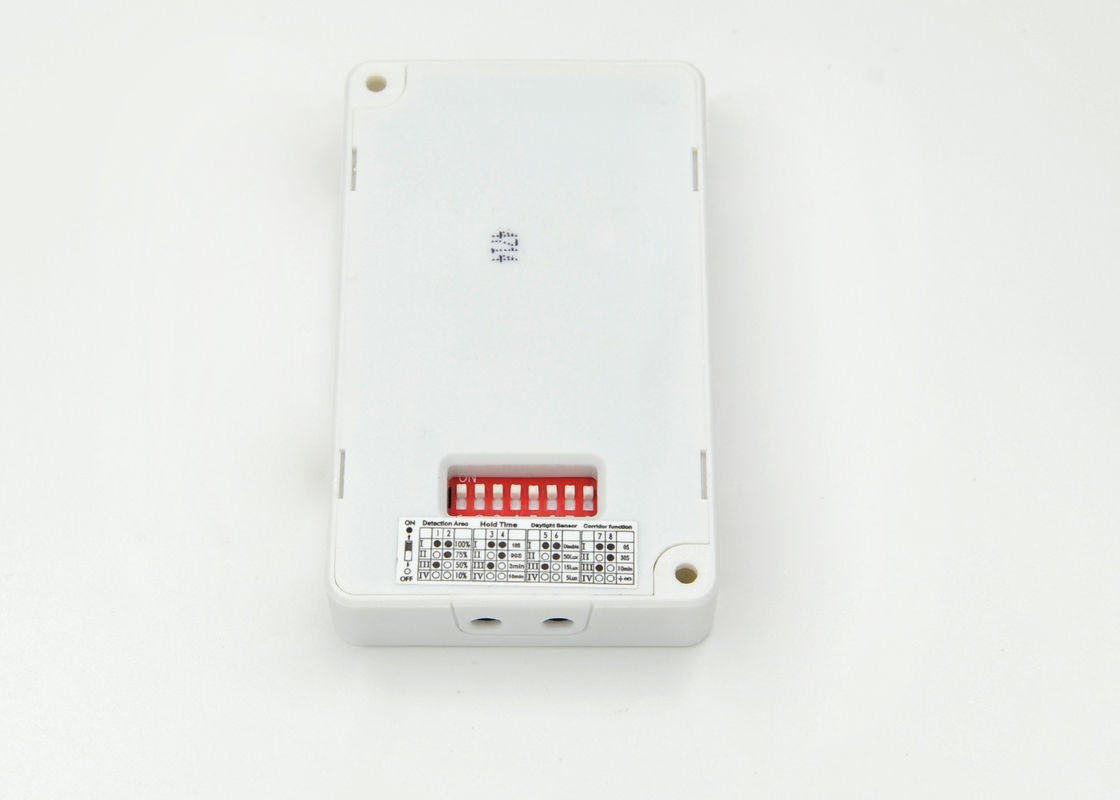

16 - 28V Panel Light Microwave Movement Sensor Driver 8w 300mA Approved CE 3



Specifications



Operating voltage

220-240Vac, 50Hz

Output power

8w max

Output current

300mA

Output voltage 16-28Vdc

Power consumption

≤1W(standby)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation  Temperature

-20℃~50℃

Hold time

5s / 90s / 3min/ 10min

Detection sensitivity

10%  / 50% / 75% / 100%

Daylight sensor

5lux / 15lux  / 50lux / Disable

Stand-by period

0s / 3min / 10min  / Disable

Stand-by dimming level

20%

Life time 30,000 hours
Guaranty 3 years



Application



300x300mm LED Panel in washing room



Wire diagram



16 - 28V Panel Light Microwave Movement Sensor Driver 8w 300mA Approved CE 4
