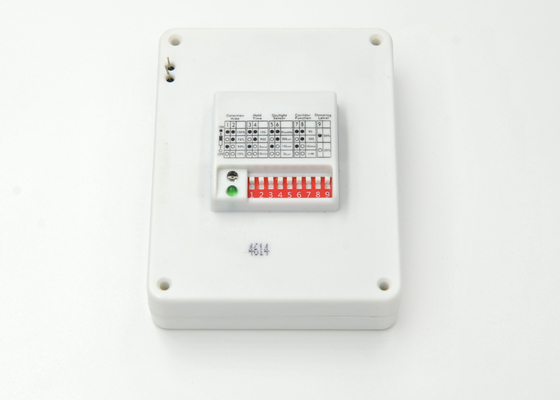

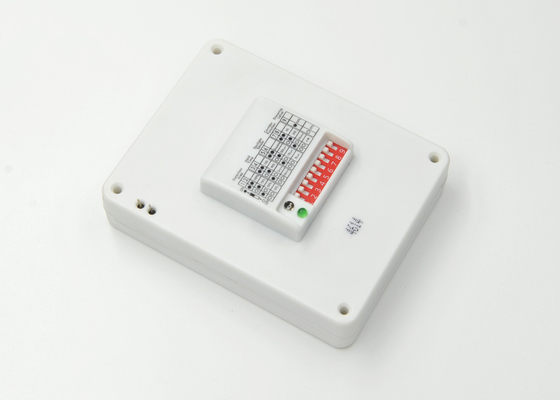

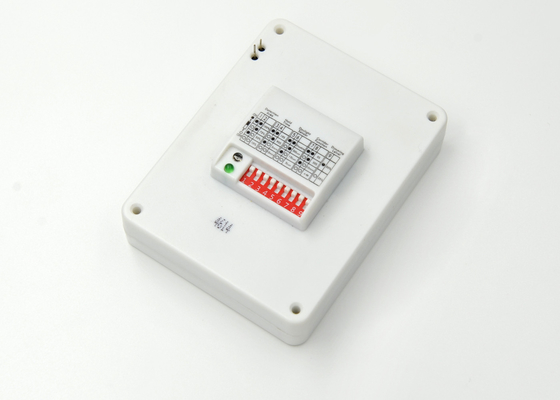

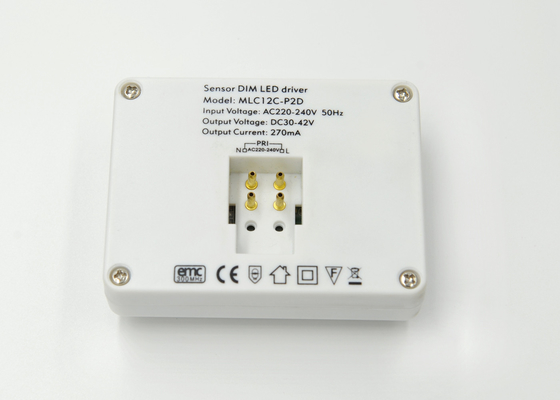

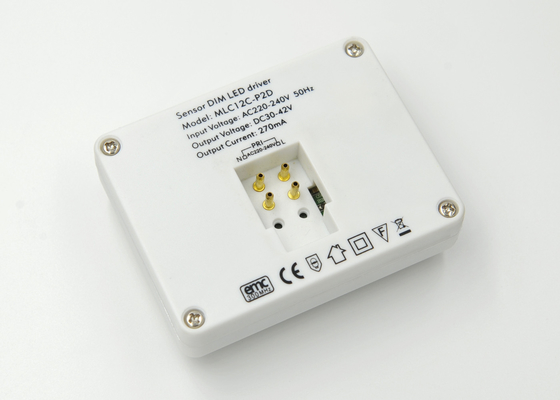

Dimmable Sensor Driver 12w 270mA Integrated With Sensor Dimming Function

Basic Information
Place of Origin: China
Brand Name: Merrytek
Certification: CE
Model Number: MLC12C-P2D
Minimum Order Quantity: Stop production, not available.
Price: Negotiation
Packaging Details: Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs per month
Detail Information
Product Name: Sensor Driver 12w Corridor Function Output Power: 12w Max
Output Current: 270mA Output Voltage: 30-42Vdc
Working Mode: Auto On-off,Auto Dimming Efficiency: ≥80%
Power Factor: ≥0.9 Size: 88 X 68 X 28.5 Mm
High Light:

low voltage led driver

,

high efficiency led driver

,

Sensor Driver Integrated With Sensor Dimming


Product Description

MLC12C-P2D Sensor driver 12w 270mA integrated with sensor dimming function 88 x 68 x 28.5mm



Description



1,35 x 35mm Sensor head,user only need to open a 35 x 35mm hole on LED board.

2, Applied for silm ceiling lamp

3,Integrate Microwave sensor and dimmable led driver technology,save labour cost for installation.

4, Working mode: Auto switch on/off,or dimming by motion and ambient brightness level.

5, Output power: 12w max.

6, Output current: 270mA

7,Output voltage: 30-42Vdc.

8, HF system: 5.8GHz±75MHz,ISM wave band.

9, Transmitting power: ≤0.5mW.

10, Power consumption: ≤1w(Stand-by).

11, Detection zone(D x H): 12m x 6m.

12, Detection sensitivity: 10%,50%,75%,100% set via dip switches.

13, Hold time: 5s,90s,3min,10min set via dip switches.

14, Corridor function:0s,30s,10min,+∞ set via dip switches.

15, Daylight sensor: 5Lux,15Lux,50Lux,set via by dip switches.

16, Stand-by dimming level: 20%.

17, Mounting height: 6m max.

18, IP rating: IP 20.



Mechanical Specification



Dimmable Sensor Driver 12w 270mA Integrated With Sensor Dimming Function 0





Functions



Dimmable Sensor Driver 12w 270mA Integrated With Sensor Dimming Function 1

Dimmable Sensor Driver 12w 270mA Integrated With Sensor Dimming Function 2



Specifications



Operating voltage

220-240Vac, 50Hz

Output power

12w max

Output current

270mA

Output voltage 30-42Vdc

Power consumption

≤1W(standby)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation  Temperature

-20℃~50℃

Hold time

5s / 90s / 3min/ 10min

Detection sensitivity

10%  / 50% / 75% / 100%

Daylight sensor

5lux / 15lux  / 50lux / Disable

Stand-by period

0s / 3min / 10min  / Disable

Stand-by dimming level

20%

Life time 30,000 hours
Guaranty 3 years



Application



Slim ceiling lamp for balcony,corridor,stairways



Wire diagram



Dimmable Sensor Driver 12w 270mA Integrated With Sensor Dimming Function 3
