Microwave Motion Sensor Dimmable LED Driver 65w Auto On - Off / Dimming

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MLC65C-P1
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sensor Driver 65w Corridor Function Output Power 65w Max
Output Current 1500mA Output Voltage 30-42Vdc
Working Mode Auto On-off,Auto Dimming Efficiency ≥86%
Power Factor ≥0.9 Size 202 X 58 X 30 Mm
High Light

high efficiency led driver

,

LED Panel Light Driver

,

Auto On Off Dimmable LED Driver

Leave a Message
Product Description

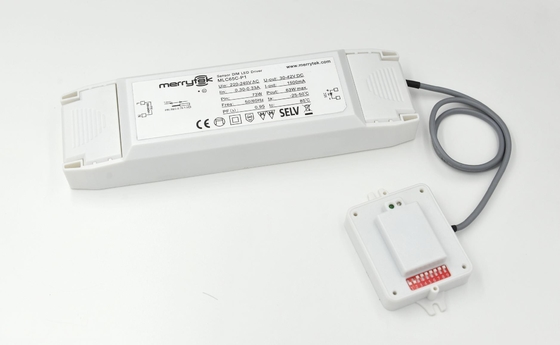

MLC65C-P1 Sensor driver 65w 1500mA integrated with sensor dimming function 202 x 58 x 30mm





Description



1, Integrate Microwave sensor and dimmable led driver and daylight sensor technology.

2, Detection area,hold time,stand-by period,stand-by dimming level,daylight sensor are selectable by dip switches.

3 ,Detachable design,easy to install inside tri-proof light

4, Working mode: Auto switch on/off,or dimming by motion and ambient brightness level.

5, Output power: 65w max.

6, Output current: 1500mA

7,Output voltage: 30-42Vdc.

8, HF system: 5.8GHz±75MHz,ISM wave band.

9, Transmitting power: ≤0.5mW.

10, Power consumption: ≤1w(Stand-by).

11, Detection zone(D x H): 12m x 6m.

12, Detection sensitivity: 10%,50%,75%,100% set via dip switches.

13, Hold time: 5s,90s,3min,10min set via dip switches.

14, Corridor function:0s,30s,10min,+∞ set via dip switches.

15, Daylight sensor: 5Lux,15Lux,50Lux,set via by dip switches.

16, Stand-by dimming level: 20%,35% set vip dip switches

17, Mounting height: 6m max.

18, IP rating: IP 20.



Mechanical Specification





Microwave Motion Sensor Dimmable LED Driver 65w Auto On - Off / Dimming 0

Microwave Motion Sensor Dimmable LED Driver 65w Auto On - Off / Dimming 1





Functions



Microwave Motion Sensor Dimmable LED Driver 65w Auto On - Off / Dimming 2

Microwave Motion Sensor Dimmable LED Driver 65w Auto On - Off / Dimming 3



Specifications



Operating voltage

220-240Vac, 50Hz

Output power

65w max

Output current

1500mA

Output voltage 30-42Vdc

Power consumption

≤1W(standby)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation  Temperature

-20℃~50℃

Hold time

5s / 90s / 3min/ 10min

Detection sensitivity

10%  / 50% / 75% / 100%

Daylight sensor

5lux / 15lux  / 50lux / Disable

Stand-by period

0s / 3min / 10min  / Disable

Stand-by dimming level

20%,35%

Life time 30,000 hours
Guaranty 3 years



Application



Slim ceiling lamp for balcony,corridor,stairways



Wire diagram



Microwave Motion Sensor Dimmable LED Driver 65w Auto On - Off / Dimming 4
