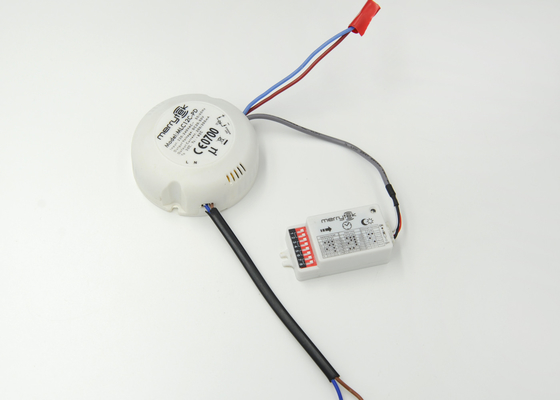

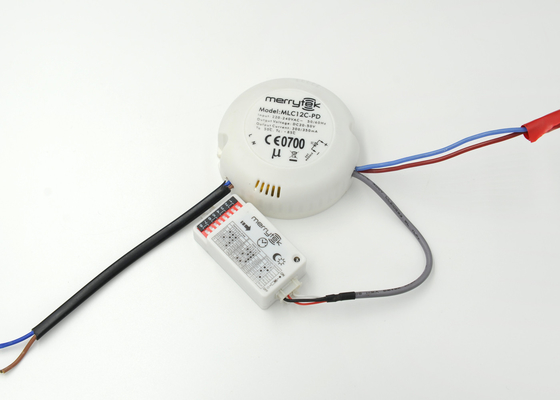

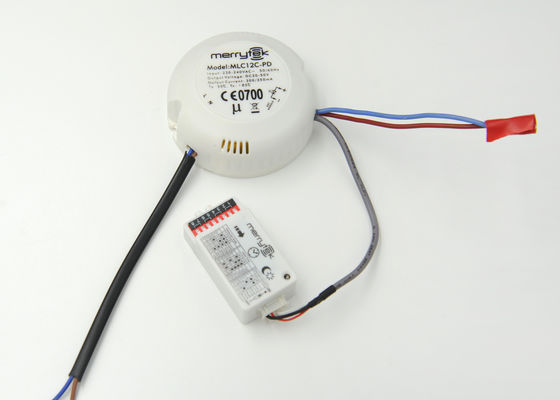

Floodlight Motion Sensor LED Light Driver 17.5w 300mA / 350mA Approved CE

  • Floodlight Motion Sensor LED Light Driver 17.5w 300mA / 350mA Approved CE
  • Floodlight Motion Sensor LED Light Driver 17.5w 300mA / 350mA Approved CE
  • Floodlight Motion Sensor LED Light Driver 17.5w 300mA / 350mA Approved CE
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MLC12C-PD
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sensor Driver 17.5w On-off Function Output Power 17.5w Max
Output Current 300mA / 350mA Output Voltage 20-50Vdc
Working Mode Auto On-off Efficiency ≥80%
Power Factor ≥0.9 Size 68x28mm
High Light

low voltage led driver

,

LED Panel Light Driver

,

Floodlight Motion Sensor LED Light Driver
Leave a Message
Product Description

MLC12C-PD Sensor driver 17.5w 300mA / 350mA integrated with sensor on-off function



Description



1, Detachable design make sensor head can be installed inside many luminaires.

2, Applied for ceiling lamp,tri-proof light,linear light.

3, Integrate Microwave sensor and dimmable led driver technology,save labour cost for installation.

4, Working mode: Switch on/off by motion and ambient brightness level.

5, Output power: 17.5w max.

6, Output current: 350mA

7,Output voltage: 20-50Vdc.

8, HF system: 5.8GHz±75MHz,ISM wave band.

9, Transmitting power: ≤0.5mW.

10, Power consumption: ≤1w(Stand-by).

11, Detection zone(D x H): 12m x 6m.

12, Detection sensitivity: 10%,25%,50%,75%,100% set via dip switches.

13, Hold time: 10s,30s,90s,3min,20min,30min set via dip switches.

14, Daylight sensor: 5Lux,15Lux,50Lux,Disable set via by dip switches.

15, Mounting height: 6m max.

16, IP rating: IP 20.



Mechanical Specification









Functions



Floodlight Motion Sensor LED Light Driver 17.5w 300mA / 350mA Approved CE 0



Specifications



Operating voltage

220-240Vac, 50Hz

Output power

17.5w max

Output current

300mA,350mA
Output voltage 20-50Vdc

Power consumption

≤1W(standby)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

12m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation  Temperature

-20℃~50℃

Hold time

10s /30s / 90s / 3min/ 20min / 30min

Detection sensitivity

10%  / 25% / 50% / 75% / 100%

Daylight sensor

5lux / 15lux  / 50lux / Disable
Life time 30,000 hours
Guaranty 3 years



Application



Ceiling lamp,tri-proof light,linear light



Wire diagram
