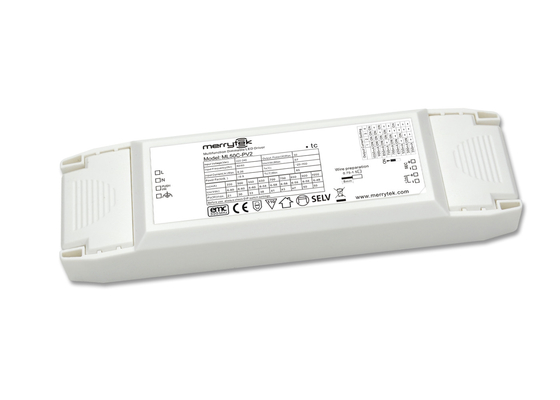

Multi - Output 1-10V Dimmable LED Driver 50W For LED Panel Light , RoHS

Place of Origin China
Brand Name Merrytek
Model Number ML50C-PV2
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification CE /RoHS Product Name 1x50w 0-10V And PUSH DIM Led Driver Slim Design
Input Voltage 220-240Vac Outut Current 350mA - 1050mA Set Via Dip Switches
Output Voltage 1 X 50w Max Dimming Mode 0-10V,PUSH DIM
Dimming Range 0 - 100% Protection Class IP20
Life Time 50000hours
High Light

led light driver

,

700ma dimmable led driver

,

Multi Output Dimmable LED Driver

Leave a Message
Product Description

ML50C-PV2  1x50w 0-10V and push dimmable led driver 350mA to 1050mA (3-60Vdc) multi-output 202 x 58 x 30mm for LED Panel Light



Feature



1, Multi-selection output current range from 350mA to 1050mA,output voltage is 3 - 60 Vdc,min load 1pcs LEDs.

2, Two circuit design AC-DC-DC, Long life time with better dimming performance,no flicckering in dimming 0%-100%.

3, Dimming range 0 - 100%,workable for 0 - 10V,and 1 - 10 V dimmer.

4, Dimmable LED driver with primary PUSH,  and 1-10V dimming interface.

5, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.

6, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

7, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.

8, Maximum length of the cable, from switch to last driver is 20m.

9, Factory setting: 100% dimming level and 350mA output.

10, Reset the LED diver easily by a jumper.

11, Press-in terminals in primary and secondary side, easy assembly.

12, Protection: Short circuit / Over voltage / Over temperature.

13, Long life span 50,000h, 5 years guaranty.



Mechanical Specification



Multi - Output 1-10V Dimmable LED Driver 50W For LED Panel Light , RoHS 0





Specifications







INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.26A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

<0.5mA/240Vac







OUTPUT



Output current/voltage

 and load

350mA 3-60V DC 21W max

5000mA 3-60V DC 30W max

550mA 3-60V DC 33W max

650mA 3-58V DC 38W max

700mA 3-58V DC 41W max

750mA 3-56V DC 42W max

850mA 3-56V DC 47W max

900mA 3-56V DC 50W max

1050mA 3-48V DC, 50W max

Output load range

1x50W max

Current accuracy

±5%

Dimming mode

0-10V, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours



PROTECTION



Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1 EN61347-2-13 EN60598-1 EN60598-2-6

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

Approvals

SEMKO, CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min;

IN-FG:1500VAC/5mA/1min

OUT-FG:500VAC/5mA/1min



NOTE

1, Efficiency is measured at 1050mA/48Vdc output set by DIP switch

2, All parameters not specially mentioned are measured at 230Vac input,

rated load and 25℃of ambient temp.



Applications





For LED panel light, LED down light, led strip, led tube etc…





Wire diagram
