Ceiling Mounted Motion Sensor IP20 DC Motion Sensor Switching 12v Outdoor

Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC011DS
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Load Max.36W LED Light
Operating Voltage 9-36Vdc 1A Max Detection Max(D×H):16m×6m
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 82x36.5x 25.5 Mm
Approval CE & R&TTE Operation Temperature -20℃~50℃
Function ON-OFF 2 Step Dimming IP Rating IP20
High Light

high frequency sensor

,

motion detection sensor

,

Ceiling Mounted Motion Sensor IP20

Leave a Message
Product Description



Ceiling Mount IP20 DC Motion Sensor Switching , 12v Outdoor Motion Sensor





Description:



1. Automatic switching based on motion and ambient light level.

2. 4-pole press-in terminal (L, N, N, L′), easy assembly.

3. Compact size, suitable to fix within most luminaries.

4. Sensor data can be simply set via DIP switch.

5. Wide detection area, range up to 16m in diameter.

6. The sensor provides a simple and cost effective dimming solution. With DC operation voltage from LED

driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most

common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive

luminaries.



Function:

On-off function

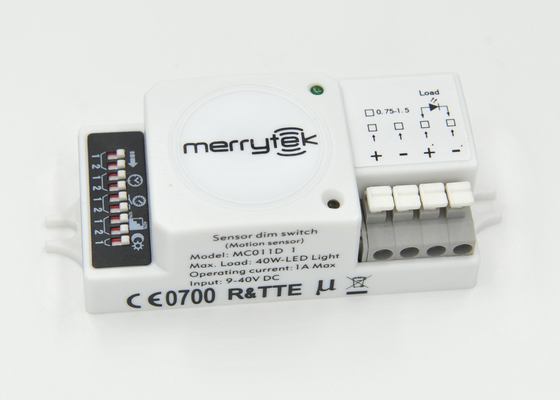

Ceiling Mounted Motion Sensor IP20 DC Motion Sensor Switching 12v Outdoor 0

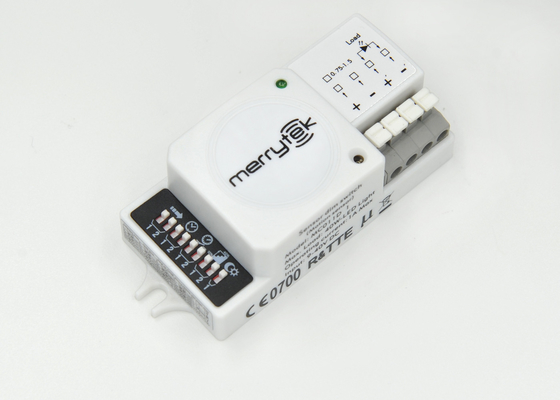

Ceiling Mounted Motion Sensor IP20 DC Motion Sensor Switching 12v Outdoor 1





Specifications:

Operating voltage

MC011D1(9~40Vdc),MC011D2(25-100VDC)

Rated load

Max.40WLED light(MC011D1)

Max.100wLED light(MC011D2)

Operating current

1A max

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-20℃~50℃

Hold time

10s/90s/3min/10min

Detection sensitivity

10%/50%/75%/100%

Dimming level

10%/20%/30%/40%

Dimming mode

Step dimming

Daylight Sensor

30lux/Disable

Life time

50000 hours

Guaranty

5 years



Wiring:

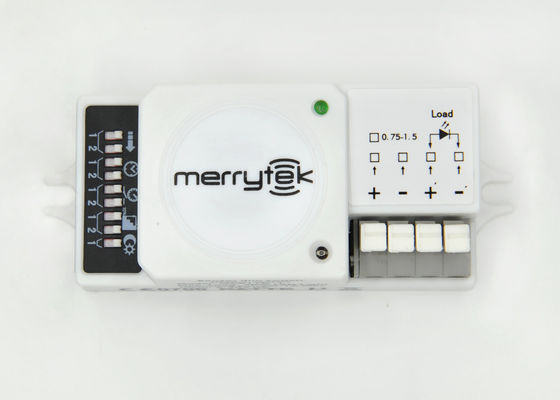

Ceiling Mounted Motion Sensor IP20 DC Motion Sensor Switching 12v Outdoor 2



Applications:

Stairwell, corridor, balcony, pathway, etc.
