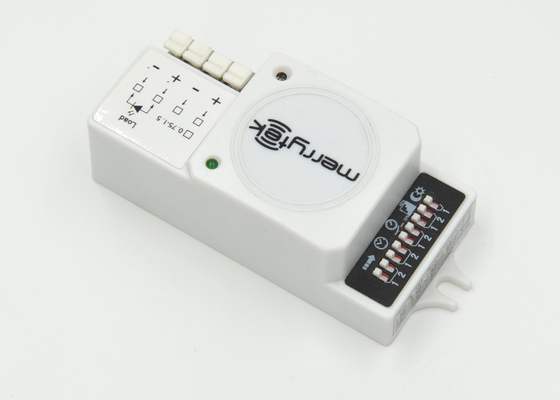

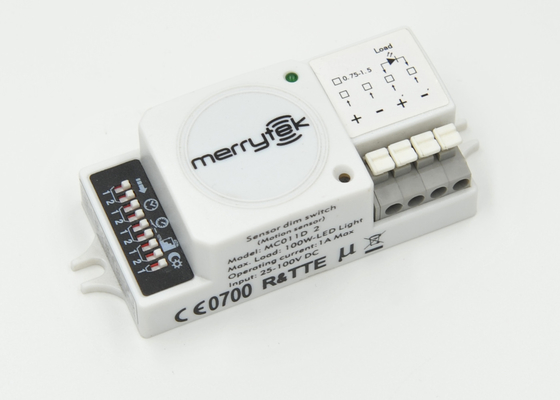

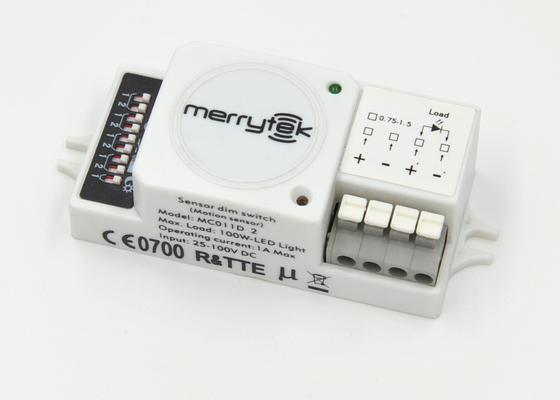

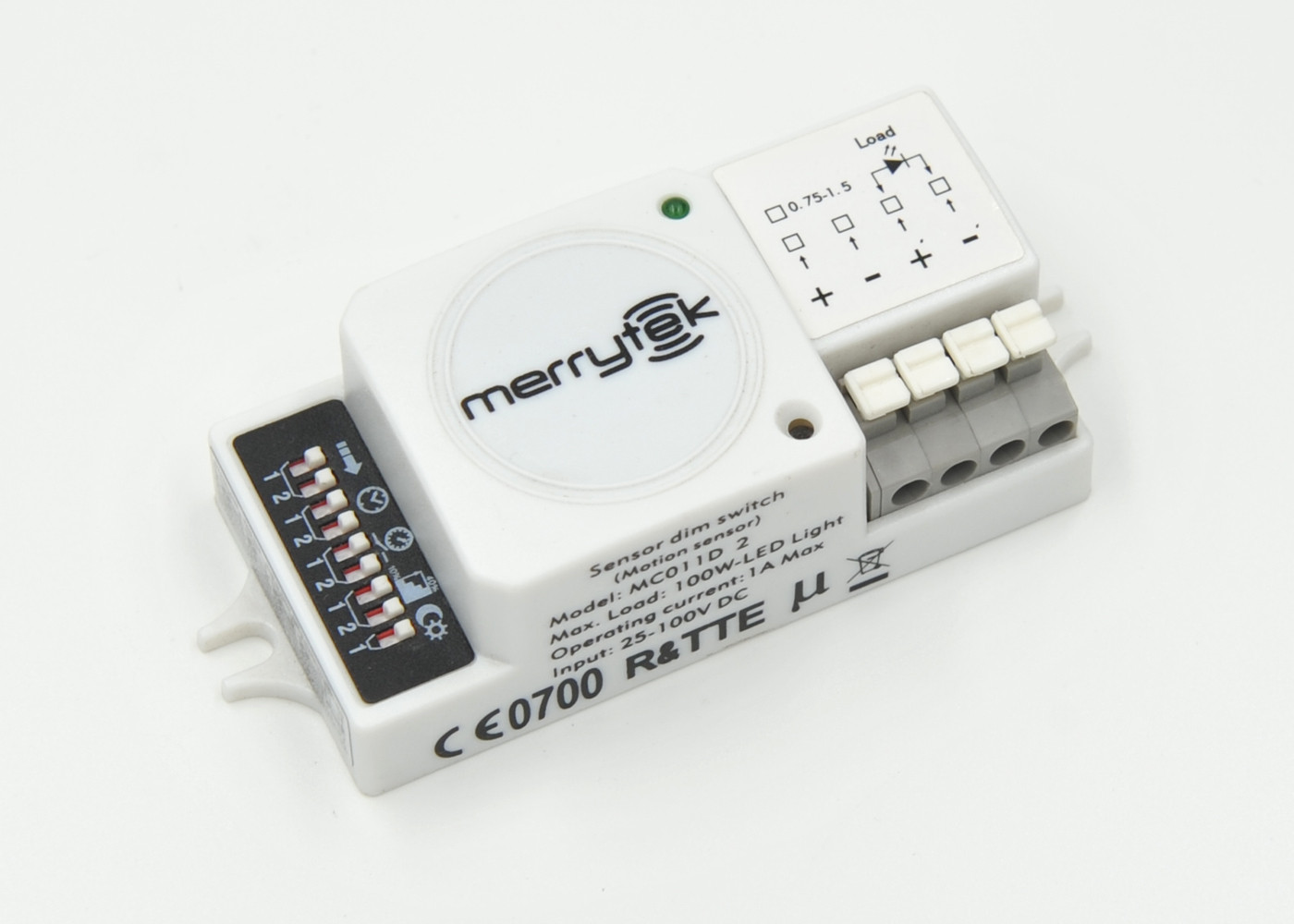

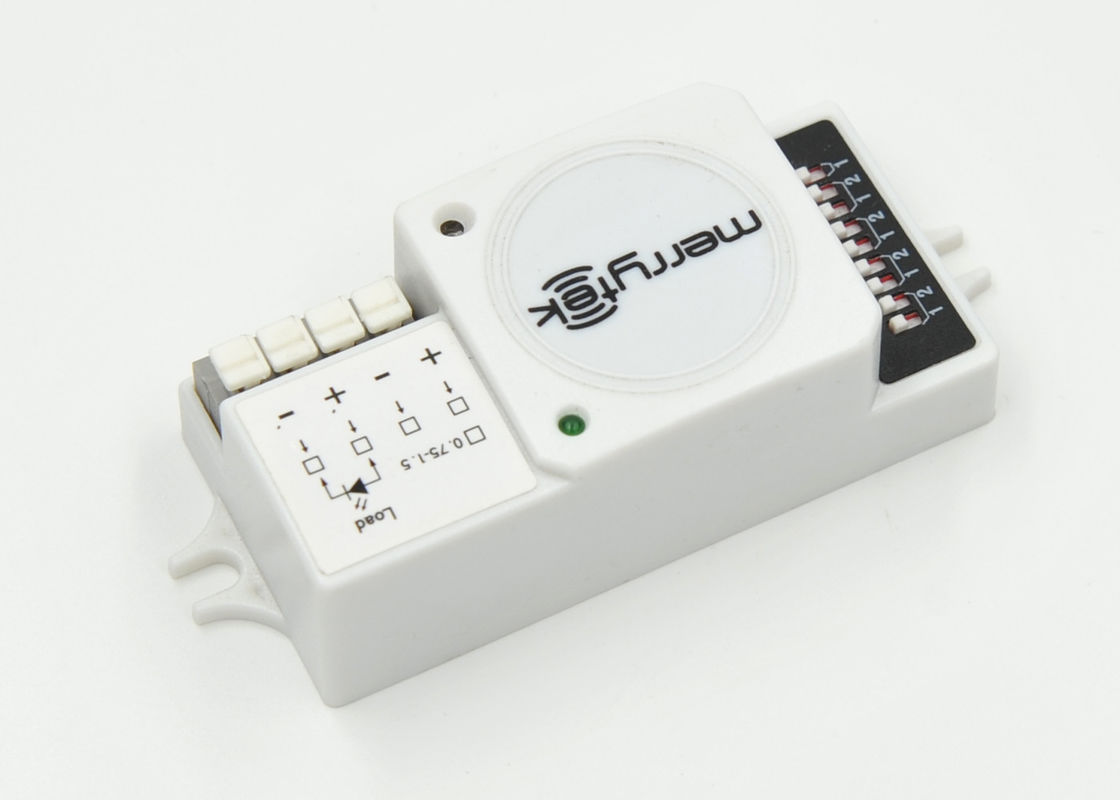

Compact DC Ceiling Light Motion Sensor 5.8GHz Hold Time 10s / 90s CE
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE , R&TTE |
| Model Number | MC011D2 |
| Minimum Order Quantity | Stop production, not available. |
| Price | Negotiation |
| Packaging Details | Packed in bubble bags firstly, and then reinforced with carton or outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Microwave Motion Sensor | Approval | CE & R&TTE |
|---|---|---|---|
| Operation Temperature | -20℃~50℃ | Function | ON-OFF 2 Step Dimming |
| Rated Load | Max.100WLED Light | IP Rating | IP20 |
| Operating Voltage | 25-100vdc | Detection | Max(D×H):16m×6m |
| HF System | 5.8GHz ±75MHz, ISM Wave Band | Size (L×W×H) | 82x36.5x 25.5 Mm |
| Highlight | indoor light motion sensor,motion detection sensor,Compact DC Ceiling Light Motion Sensor |
||
Product Description
Merrytek 5.8GHz DC Motion Sensor MC011D2 , Hold Time 10s / 90s
Description
- Economic solution to achieve dimming function
- No need dimmable led driver, simple constant current led driver is comparable
- Easy installation, workable for ceiling lamp, tri-proof light.
- Automatic switching based on motion and ambient light level.
- 4-pole press-in terminal (L, N, N, L′), easy assembly.
- Compact size, suitable to fix within most luminaries.
- Sensor data can be simply set via DIP switch.
- Wide detection area, range up to 16m in diameter.
- The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.
Function:
On-off function
2- Step dimming function
Specifications:
|
Operating voltage |
25 ~ 100Vdc |
|
Rated load |
Max.100wLED light |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Operating current |
1A max |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation Temperature |
-20℃~50℃ |
|
Hold time |
10s/90s/3min/10min |
|
Detection sensitivity |
10％/50％/75％/100％ |
|
Dimming level |
10%/20%/30%/40% |
|
Dimming mode |
Step dimming |
|
Daylight Sensor |
30lux/Disable |
|
Life time |
50000 hours |
|
Guaranty |
5 years |
Applications:
Stairwell, Corridor, Balcony, Pathway, etc.
