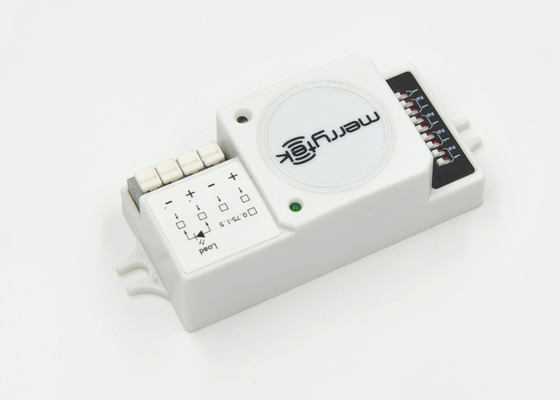

Corridor Light DC Microwave Motion Sensor With 4 - Pole Press - In Terminal

  • Corridor Light DC Microwave Motion Sensor With 4 - Pole Press - In Terminal
  • Corridor Light DC Microwave Motion Sensor With 4 - Pole Press - In Terminal
  • Corridor Light DC Microwave Motion Sensor With 4 - Pole Press - In Terminal
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC011D3
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Load Max.65WLED Light
Operating Voltage 25-65vdc Detection Max(D×H):16m×6m
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 82x36.5x 25.5 Mm
Approval CE & R&TTE Operation Temperature -20℃~50℃
Function ON-OFF 2 Step Dimming IP Rating IP20
High Light

indoor light motion sensor

,

motion detection sensor

,

Corridor Light DC Microwave Motion Sensor
Leave a Message
Product Description



Corridor Light DC Motion Sensor With 4 - Pole Press - In Terminal





Description



  •   Better compatibility version, match with more led drivers
  •   Optically controlled shut off function

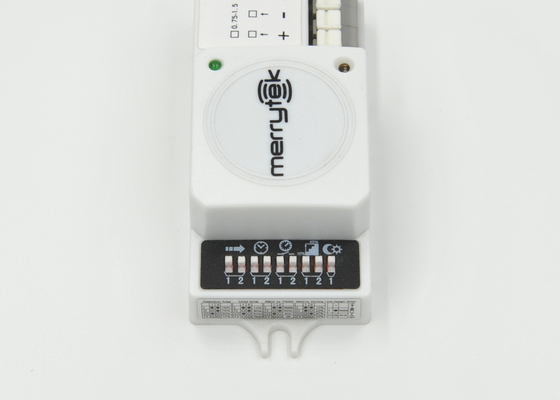

  •   Sensor data can be simply set via DIP switch.
  •   No need dimmable led driver, simple constant current led driver is comparable
  •   Easy installation, workable for ceiling lamp, tri-proof light.
  •   Automatic switching based on motion and ambient light level.

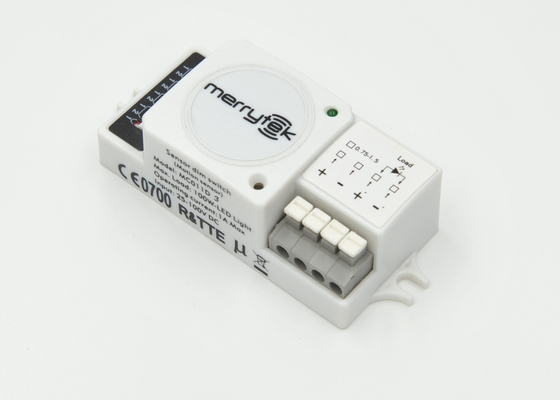

  •   4-pole press-in terminal (L, N, N, L′), easy assembly.
  •  Compact size, suitable to fix within most luminaries.
  •   Wide detection area, range up to 16m in diameter.
  •   The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.



Function:



On-off function



2- Step dimming function



Specifications:



Operating voltage

25 - 65Vdc

Rated load

Max.65wLED light

HF system

5.8GHz±75MHz, ISM wave band

Operating current

1A max

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-20℃ ~ 50℃

Hold time

10s/1min/3min/10min

Detection sensitivity

10％/50％/75％/100％

Dimming level

10%/20%/30%/40%

Dimming mode

Step dimming

Daylight Sensor

30lux/Disable

Life time

50000 hours

Guaranty

5 years






Applications:



Stairwell, Corridor, Balcony, Pathway, etc.
