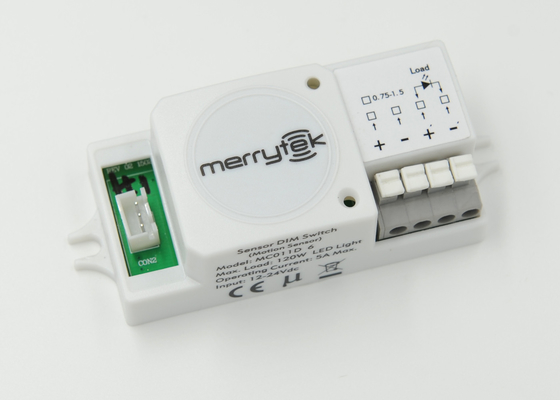

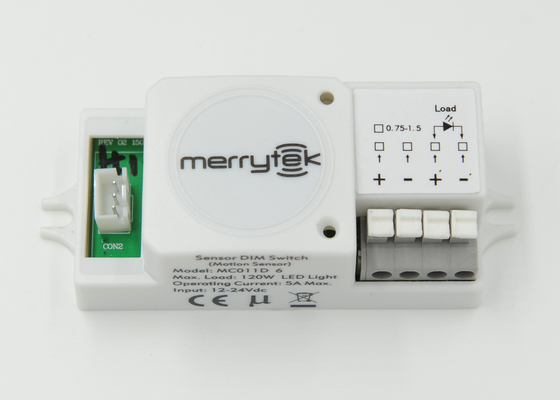

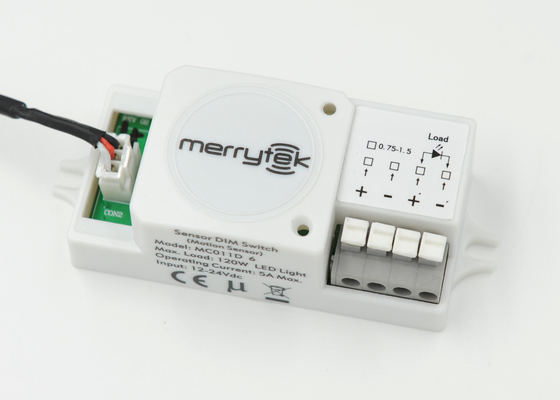

Professional Dimming 360 Degree Motion Sensor 5.8GHz With DC Operation

Basic Information
Place of Origin: China
Brand Name: Merrytek
Certification: CE , R&TTE
Model Number: MC011D6
Minimum Order Quantity: Stop production, not available.
Price: Negotiation
Packaging Details: Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time: 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 20,000pcs per Month
Detail Information
Product Name: Microwave Motion Sensor Rated Load: Max.120WLED Light
Operating Voltage: 12 - 24vdc Detection: Max(D×H):16m×6m
HF System: 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H): 82x36.5x 25.5 Mm(power Supply Part) 53x26.1x16mm(sensor Part)
Approval: CE & R&TTE Operation Temperature: -20℃~50℃
Function: ON-OFF 2 Step Dimming IP Rating: IP20
High Light:

high frequency sensor

,

motion detection sensor

,

DC Operation Dimming Motion Sensor


Product Description



Dimming 360 Degree Motion Sensor 5.8GHz With DC Operation







Description



  •   ISM Band 5.8GHz
  •   Constant voltage design

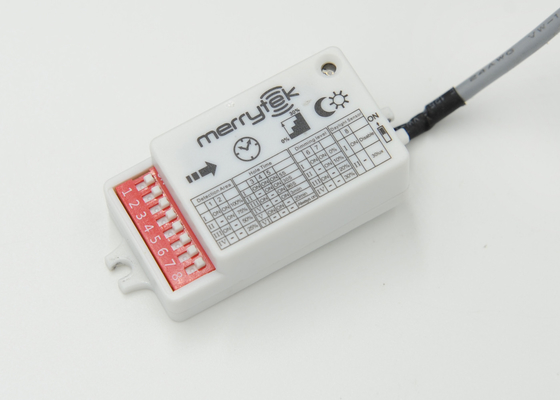

  •   Sensor data can be simply set via DIP switch
  •   Wide detection area, range up to 16m in diameter

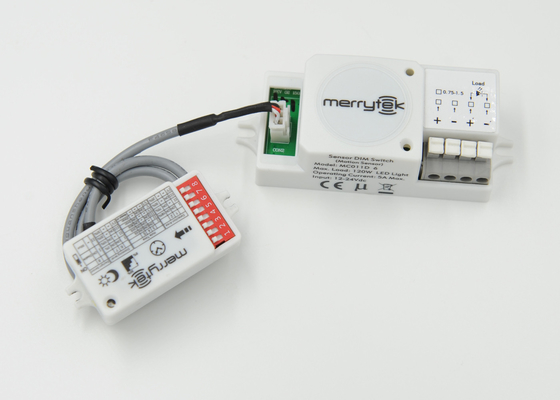

  •   Detachable design between sensor and power supply part
  •   On off and 2 steps dimming design
  •   Sensor part only take small area on led board 53x26.1x16mm
  •   Automatic switching based on motion and ambient light level.
  •   4-pole press-in terminal (L, N, N, L′), easy assembly.
  •   Compact size, suitable to fix within most luminaries.
  •   The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.



On-off function



2- Step dimming function



Specifications:





Operating voltage

12 - 24Vdc

Rated load

Max.120WLED light

Operating current

5A max

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-20℃~50℃

Hold time

10s/30s / 90s / 3min/20min

Detection sensitivity

25%/50%/75%/100%

Dimming level

0%/10%/20%/30%

Dimming mode

Gradual dimming

Daylight Sensor

30lux/Disable

Life time

50000 hours

Guaranty

5 years






Applications:



Stairwell, Corridor, Balcony, Pathway, etc.
