Compact DC Dimmable Motion Sensor With 5.8GHz Dimming Constant Current Led Driver

Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC011D8
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Load Max.50WLED Light
Operating Voltage 13 - 42vdc Detection Max(D×H):16m×6m
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 82x36.5x 25.5 Mm(power Supply Part) 53x26.1x16mm(sensor Part)
Approval CE & R&TTE Operation Temperature -20℃~50℃
Function ON-OFF 2 Step Dimming IP Rating IP20
High Light

indoor light motion sensor

,

motion detection sensor

,

Compact DC Dimmable Motion Sensor

Leave a Message
Product Description

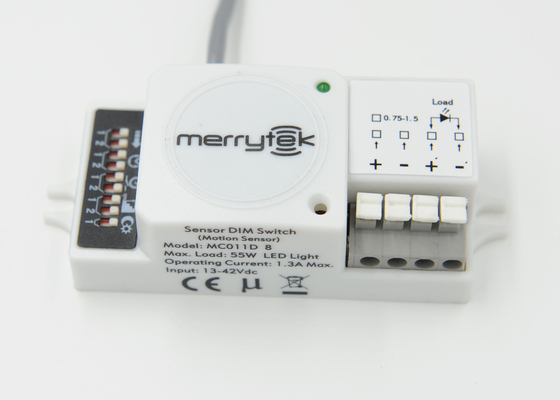

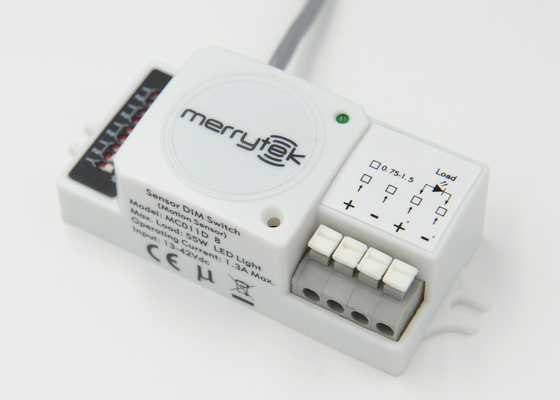

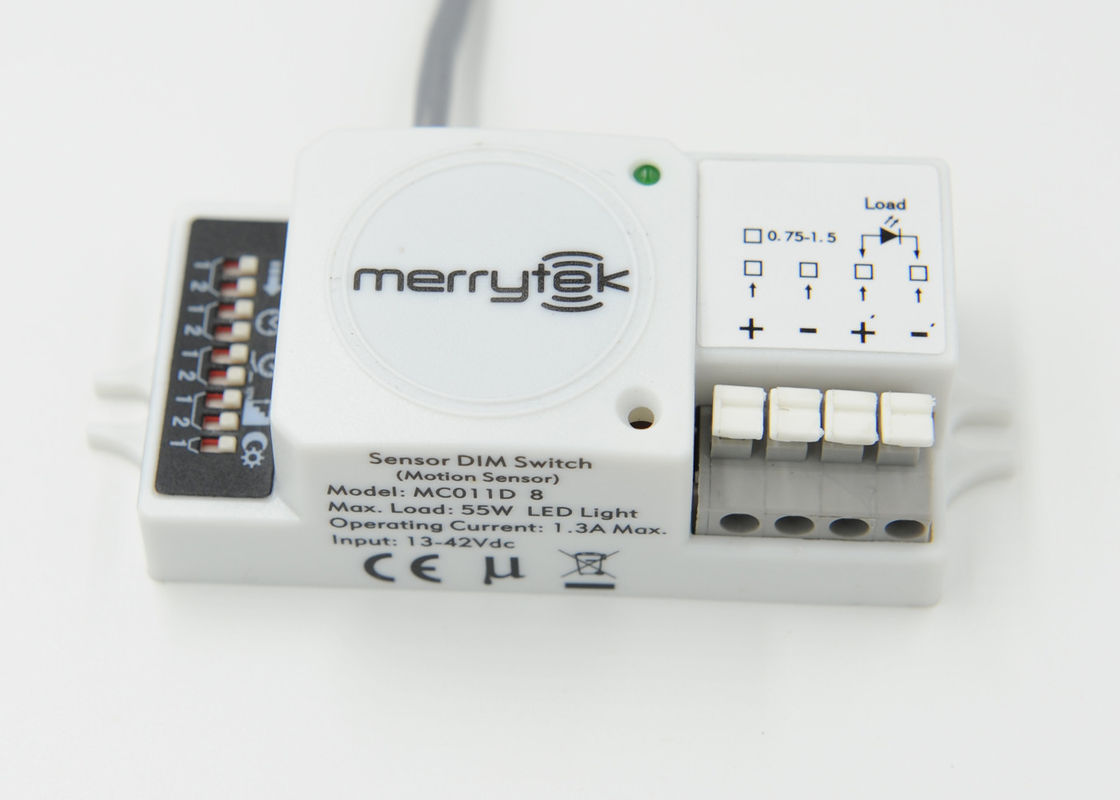

Compact DC Motion Sensor 5.8GHz Dimming Constant Current Led Driver





Description



  •   DC operation design
  •   Dimming function working with simple constant current led driver
  •   Hold time detection zone and daylight sensor can be set by DIP switch

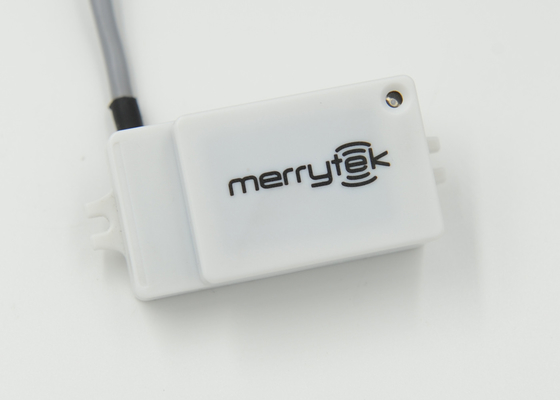

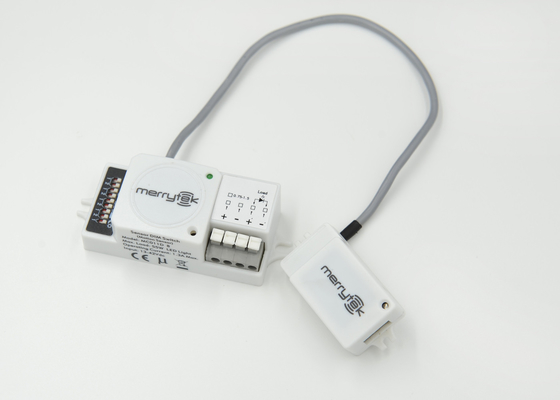

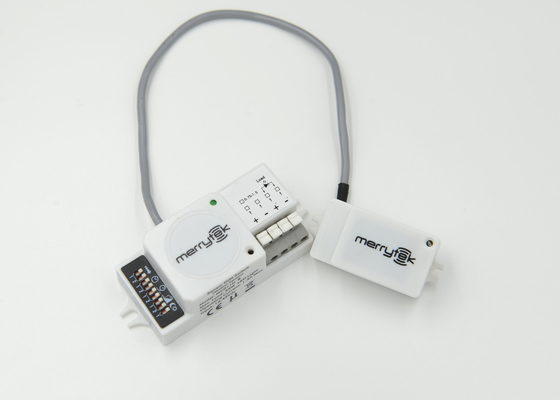

  •   Detachable design between sensor and power supply part
  •   Automatic switching based on motion and ambient light level.
  •   4-pole press-in terminal (L, N, N, L′), easy assembly.
  •   Compact size, suitable to fix within most luminaries.
  •   Wide detection area, range up to 16m in diameter.
  •   The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.



On-off function



2- Step dimming function



Specifications:





Operating voltage

13 - 42Vdc

Rated load

Max.50WLED light

Operating current

1.3A max

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-20℃~50℃

Hold time

0s / 5min / 30min / Disable

Detection sensitivity

25%/50%/75%/100%

Dimming level

10%/20%/30% / 40%

Stand-by period

10s / 90s / 3min / 10min

Dimming mode

Gradual dimming

Daylight Sensor

30lux/Disable

Life time

50000 hours

Guaranty

5 years





Applications:



Stairwell, Corridor, Balcony, Pathway, etc.
