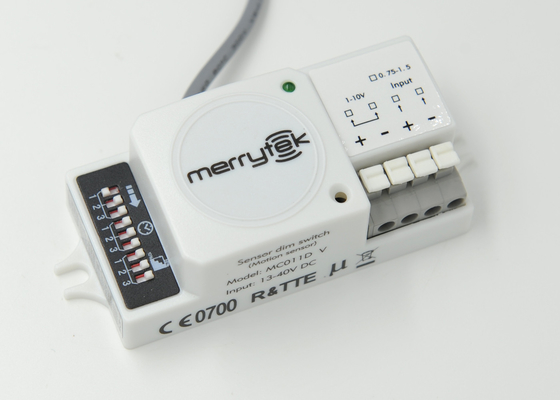

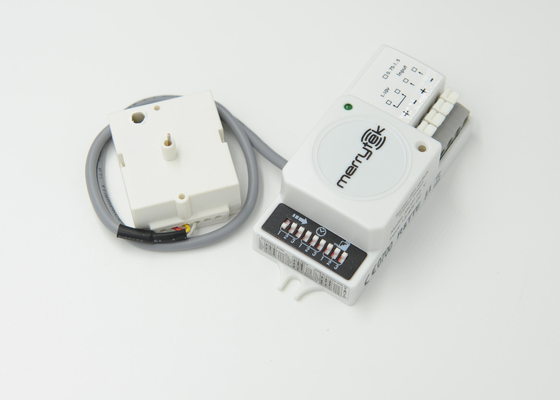

High Frequency Dimmable Motion Sensor , 1 – 10V Dimming Microwave Motion Sensor

  • High Frequency Dimmable Motion Sensor , 1 – 10V Dimming Microwave Motion Sensor
  • High Frequency Dimmable Motion Sensor , 1 – 10V Dimming Microwave Motion Sensor
  • High Frequency Dimmable Motion Sensor , 1 – 10V Dimming Microwave Motion Sensor
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC011DV
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Detection Max(D×H):16m×6m
HF System 5.8GHz ±75MHz, ISM Wave Band Rated Load Max.40WLED Light

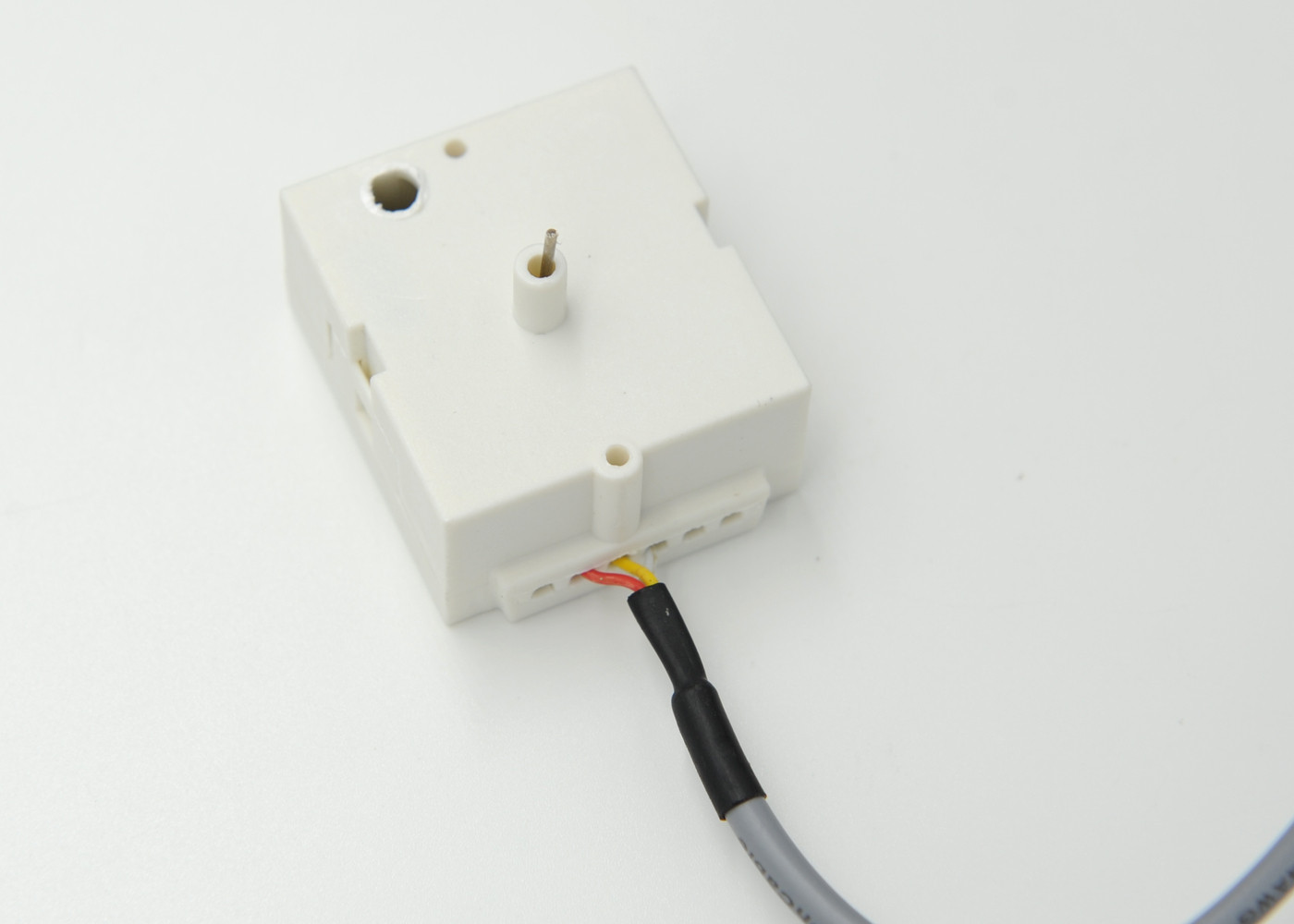

Size (L×W×H) 82x36.5x 25.5 Mm(power Supply Part) 38.5x33.8x27.4mm(sensor Part) Operating Voltage 13-40vdc
Approval CE & R&TTE Operation Temperature -20℃~50℃
Function ON-OFF 2 Step Dimming IP Rating IP20
High Light

high frequency sensor

,

motion detection sensor

,

High Frequency Dimming Microwave Motion Sensor
Leave a Message
Product Description



1 – 10V dimming Microwave Motion Sensor , High Frequency Sensor





Description





  •   High PF value
  •   Economic solution for 1-10v dimming, save cost for use
  •   DC input design
  •   Sensor data can be simply set via DIP switch..
  •   Automatic switching based on motion
  •   4-pole press-in terminal (L, N, N, L′), easy assembly.
  •   Compact size, suitable to fix within most luminaries.
  •   Wide detection area, range up to 16m in diameter.
  •   The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Work with 1-10v dimmable led driver for 2-step dimming function. Particularly suitable for price sensitive luminaries.

On-off function



2- Step dimming function



Specifications:



Operating voltage

13 - 40Vdc

Rated load

Max.40wLED light

HF system

5.8GHz±75MHz, ISM wave band

Operating current

1A max

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-20℃ ~ 50℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

10％/25%/50％/75％/100％

Dimming level

10%/20%/30%/40% 50%

Dimming mode

Gradullay dimming

Life time

50000 hours

Guaranty

5 years





5 years


Wiring:



Applications:



Stairwell, Corridor, Balcony, Pathway, etc.
