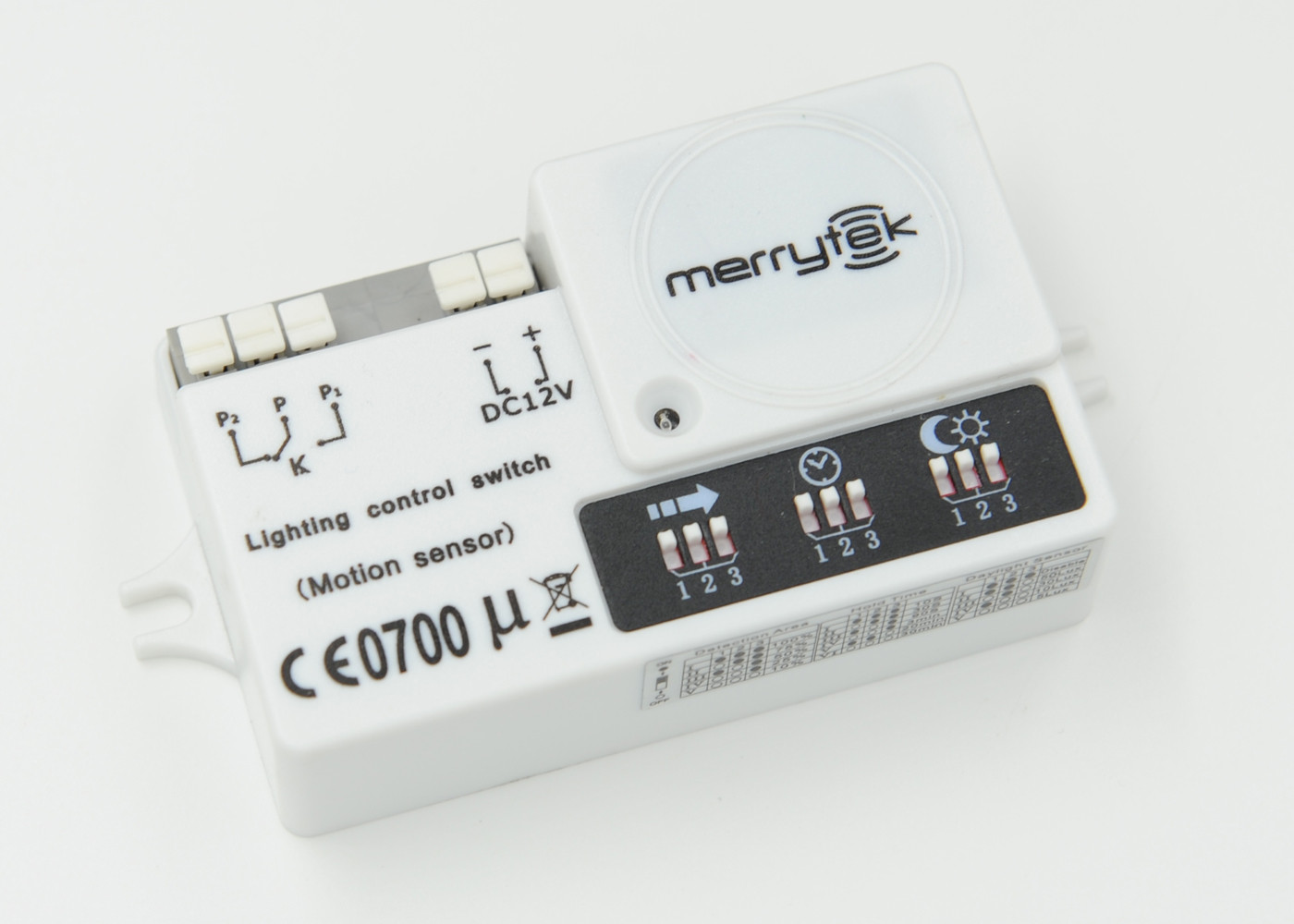

12Vdc Dry Contact Waterproof Dimmable Motion Sensor , Wall Mounted Motion Sensor

  • 12Vdc Dry Contact Waterproof Dimmable Motion Sensor , Wall Mounted Motion Sensor
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC017D
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 92x52x 25.5
Product Name Microwave Motion Sensor Approval TUV
Operation Temperature -35℃~70℃ Function Dry Contact
Rated Load Power Free Sensor(sensor And Load Are In Different Power Supply System) IP Rating IP20
Operating Voltage 12Vdc Detection Max(D×H):16m×6m
Highlight

indoor light motion sensor

,

high frequency sensor

,

Dry Contact Dimmable Motion Sensor
Leave a Message
Product Description

12Vdc Dry Contact Waterproof Motion Sensor Wall Mount with IP20





Description

​

  •   DC 12V input
  •   Dry contact Esp. for solar energy garden lamp and industrial application
  •   sensor and load are in different power supply system, voltage free
  •   Dry contact works in normally closed mode and normally open mode
  •   ISM Band 5.8GHz
  •   Automatic switching based on motion and ambient light level
  •   3 pole relay design, user can choose normally open mode or normally closed mode according to different application
  •   Sensor data can be simply set via DIP switch.
  •   Wide detection area, range up to 16m in diameter.
  •   The sensor can be detected through plastic, glass and thin non-metal materials. It supplies dry contacts in normally closed mode and normally open mode. Dry contact means open or close relay without any current or voltage. It is perfect for the solar energy garden lamp or industrial control application where requires isolation between motion signal and power supply



On-off function





Specifications:



Operating voltage

12Vdc

Rated load

Power free

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-35℃~70℃

Hold time

0S/30S/90S/3min/30min/+∞

Detection sensitivity

100%/75%/50%/25%

Daylight Sensor

5lux / 15lux /  50lux /Disable

Life time

50000 hours

Guaranty

5 years






Wiring:



Applications:



Stairwell, Corridor, Balcony, Pathway, etc.
