Supports LED Hot Swap 1-10V PUSH 25W LED Dimmer Driver Module With Short Circuit Protection
Place of Origin | China |
---|---|
Brand Name | Merrytek |
Certification | Semko, CE, RoHS |
Model Number | ML25C-PV2 |
Minimum Order Quantity | Stop production, not available. |
Price | Negotiation |
Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit. |
Payment Terms | T/T, Western Union |
Supply Ability | 10,000pcs per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput Power | 25W Max | Working Temperature | -25℃-50℃ |
---|---|---|---|
Product Name | Multifunction Dimmable Led Driver | Input Voltage | 220-240Vac |
Dimming Mode | 1-10V, PUSH | Efficiency | ≥85% |
Output Voltage | 68Vdc Max. | Approvals | Semko, CE, RoHS |
Isolation Class | Class II | ||
Highlight | led dimming driver,dimming motion sensor,25W LED Dimmer Driver Module |

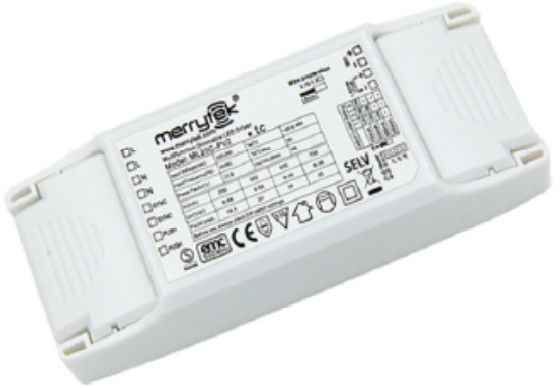

Supports LED hot swap 1-10V PUSH 25W LED Dimmer Driver Module
with Short Circuit Protection
Description:
- Flicker-free for whole dimming range
- Stand-by power below 0.5W
- Primary & secondary dimming with push button
- 1-10V dimming
- Dim via a potentiometer
- Supports LED hot swap
- Protection: short circuit/ over temperature/ over voltage
- Derating current for over high ambient temperature.
- Dimming level memory at mains restores
- Multi-output currents set via dip switches
- 5-year warranty
Applications:
For LED down light, LED panel light, led strip, led tube etc…
Dimming Operation:
1) Push button switch for dimming
- ON/OFF: Short push (0.12s~0.4s) on the switch.
- Dimming: Long push (>8s and <15s) on the switch. Dimming range 2%-100%, it takes 8s from the darkest to the brightest. Self recovery when blackout.
- Synchronization: If there is Led driver is not synchronized when the same PUSH switch is connected to the driver, long press the PUSH switch (>15S), the LED driver will stay at 50% brightness. (LED current will be the 50% of the maximum current), and achiever automatic synchronization.
2) 1-10V dimming
When the LED driver is on, it can achieve dimming by rotating the 1-10V dimmer, the dimming range is 2-100%. When the 1-10V dimmer output is 1V, LED will be adjusted to the darkest and LED current will be the 2% of the maximum current. When the 1-10V dimmer output is 10V, LED will be adjusted to the brightest and LED current will be the 100% of the maximum current.
Input | Operating Voltage | 198-264VAC 50Hz /60Hz |
Input Voltage | 220-240VAC 50Hz /60Hz | |
Input Current | 0.15A @230VAC | |
Input Inrush Current | <8A (Half current pulse width 50US ) @230VAC | |
Power Factor | ≥0.90 @230VAC(Full load) | |
No-load power | ≤1.5W | |
Stand-by Power | ≤0.5W | |
Efficiency | 85%Max. @230VAC(Full load) | |
Wiring Method | Colourful press fit terminal Wire Diameter:0.75-1.5mm2 | |
Output | Operating mode | Constant Current |
Load type | LED | |
Ripple requirement (Flickering or Flickering-Free) | Flicker value: less than 2% for whole dimming range | |
No-load output voltage | 68VDC Max. | |
Load output voltage range | 6-58VDC | |
Full load output power | 25W Max. | |
Load output current | Set via DIP switch, 250MA±5% (6-58V); 350MA±5%(6-58V);500MA±5%(6-50V);700MA±5%(6-36V) | |
Constant current/voltage Precision | Constant Current Precision ±5% | |
Wiring method | Colourful press fit terminal Wire Diameter:0.75-1.5mm2 | |
Control Method | Primary PUSH Dimming | Dimming range 2%-100% |
1-10V(0-10V)Dimming | Dimming range 0-100% | |
Primary PWM Dimming | 1-10V port PWM dimming(3HZ-8KHZ) | |
Potentiometer | Yes, 100kΩ | |
Exception Protection Requirements | Input Over voltage Protection | 300VAC 50Hz/60Hz 2 hours |
Output Over voltage Protection | N/A | |
Output over load protection | Yes, self recovery | |
Output no load protection | Yes, self recovery | |
Output over temperature protection | Yes, self recovery | |
Output short circuit protection | Yes, self recovery | |
Output LED hot swap | At least 2 series LED lamp (6V), electrothermal hot swap does not damage the LED lamp | |
Operating | Operating temperature/ humidity | -25℃+50℃ Humidity : 85% (Non-condensing) |
Storage temperature/ humidity | -40℃+80℃ | |
Outer Max. Temp(Tc) | 85℃ Max. | |
Safety | Isolation pressurization | 3750VAC 5mA 60S (Input“L N”, Output “SEC+ SEC- 1-10V”) |
EMC | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | |
DALI protocol standard | IEC62386-102IEC62386-207 | |
Safety requirement | EN61347-1 EN61347-2-13 | |
Certificate requirement | Semko, CE, RoHS | |
Others | IP rating | IP20 |
Protection level | Class II | |
Packaging requirement | Independent installation | |
Installation dimension | 110mm(Outer dimension:103*67*22 mm) | |
Blackout memory function | Yes, PUSH blackout memory | |
Dimming synchronization | PUSH switch dimming,supports 15 drivers synchronization | |
Packaging requirement | Bubble Bag Clapboard Outer Carton(K=A) | |
Weight | ||
Life | 50000h @Ta full load |
