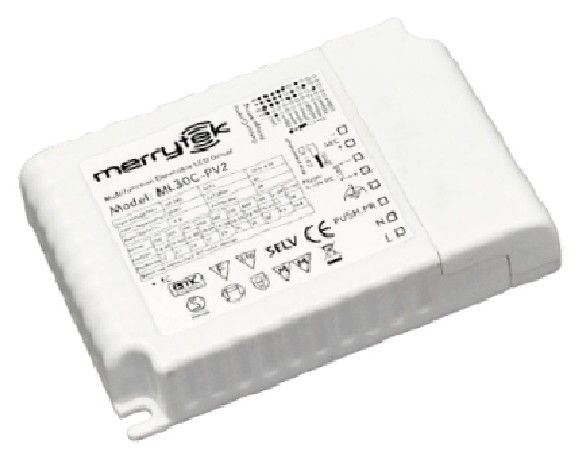

Supports LED Hot Swap 30W 1-10V, Push Constant Current Led Driver Dimmable High Power LED Strip

Supports LED hot swap 30W 1-10V, Push Dimmable LED Driver High Power LED Strip Constant Current


Description:

• 5 year warranty
• Flicker-free for whole dimming range
• Stand-by power below 0.5W
• Primary & secondary dimming with push button
• 1-10V dimming
• Dim via a potentiometer
• Supports LED hot swap
• Protection: short circuit / over temperature/ over voltage
• Derating current for over high ambient temperature.
• Dimming level memory at mains restores
• Multi-output currents set via dip switches

Applications:
For LED down light, LED panel light, led strip, led tube etc…

Dimming Operation:

1) High voltage & low voltage PUSH dimming (see wiring diagram, Fig A & B)

• ON/OFF: Short press push switch for 0.12s~0.4s.
• Dimming: Long press push switchfor (>8s and <15s). The dimming range is 2%-100%, it takes 8s from the darkest to the brightest. Self recovery when blackout.
• Synchronization: If there is any Led driver is not synchronized when the same PUSH switch is connected to the driver, long press the PUSH switch for (>15S), the connected LED driver will stay at 50% brightness. (LED current will be the 50% of the maximum current). It can achieve synchronization automatically for up to 15 pcs and the maxium lead length of the dimming control terminal is 20m.

2) 1-10V dimming (see wiring diagram, Fig C)

When the LED driver is on, it can achieve dimming by rotating the 1-10V dimmer, the dimming range is 2-100%. When the 1-10V dimmer output is 1V, LED will be adjusted to the darkest and LED current will be the 2% of the maximum current. When the 1-10V dimmer output is 10V, LED will be adjusted to the brightest and LED current will be the 100% of the maximum current.
