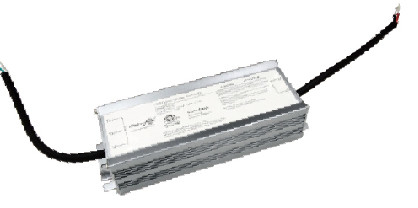

80W Constant Voltage TRIAC & ELV Edge American Dimmable LED Driver 24Vdc , 3.33A Max. MLU80V-T1
Place of Origin | China |
---|---|
Brand Name | Merrytek |
Certification | UL(Pending) |
Model Number | MLU80V-T1 |
Minimum Order Quantity | Stop production, not available. |
Price | Negotiation |
Packaging Details | Packed in the white box with instruction, clapboard and carton for outer packing |
Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit. |
Payment Terms | T/T, Western Union |
Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Name | American Dimmable Led Driver | Input Voltage | 120VAC |
---|---|---|---|
Input Current | 1.00A Max | No-load Power | ≤1.0W |
Efficiency | 82%Max. @120VAC | No-load Output Voltage | 24VDC Max. |
Load Output Current | 3.33A Max. | Full Load Output Power | 80W Max. |
Dimming Mode | TRAIC Dimming | Working Temperature | -25℃~50℃ |
Isolation Class | Class II | Approvals | UL(Pending) |
High Light | led dimmer driver,dimming motion sensor,ELV Edge Dimmable LED Driver |
Product Description
80W Constant Voltage TRIAC & ELV Edge American Dimmable LED Driver 24Vdc, 3.33A Max. MLU80V-T1
Description:
- Flicker-free for whole dimming range
- 24Vdc constant voltage
- Match up with most of Triac & ELV dimmers in America
- Protection: short circuit / over temperature/ over voltage
- Derating current for over high ambient temperature
- Dimming level memory at mains restores
- 5 year warranty
Applications:
For LED down light, LED panel light, LED tube etc…
Input | Operating Voltage | 100-130VAC 50Hz /60Hz |
Input Voltage | 120VAC 50Hz /60Hz | |
Input Current | 1.00A Max | |
Input Inrush Current | Cold start<15A@120VAC (Half current pulse width 270US) | |
Power Factor | ≥0.95 @120VAC(Full load) | |
No-load power | ≤1.0W | |
Stand-by Power | N/A | |
Efficiency | 82%Max. @120VAC | |
Wiring Method | 3C*18AWG 105℃ FT2 L(Black) N(White) E(Green) UL 600V 200mm | |
Output | Operating mode | Constant Voltage |
Load type | 24V LED | |
Ripple requirement (Flickering or Flickering-Free) | Flickering | |
No-load output voltage | 24VDC MAX. | |
Load output voltage range | 22.8-25.2VDC | |
Full load output power | 80W Max. | |
Load output current | 3.33A Max. | |
Constant current/voltage Precision | Constant Voltage Precision ±5% | |
Wiring method | 2C*18AWG 105℃ VW-1 LED+(Red)LED-(Black)UL 300V 200mm | |
Control Method | Dimming Range | 5%-100% or 0%-100% |
TRAIC Dimming | Lutron SELV-300P,DVLV-600P | |
Exception Protection Requirements | Input over voltage Protection | N/A |
Output over voltage Protection | Yes, self recovery | |
Output over load protection | Yes, self recovery | |
Output no load protection | Yes, self recovery | |
Output over temperature protection |
Yes, self recovery | |
Output short circuit protection |
Yes, self recovery | |
Operating Environment |
Operating temperature/ humidity | -25℃+50℃ Humidity : 85% (Non-condensing) |
Storage temperature/ humidity | -40℃+80℃ | |
Outer Max. Temp(Tc) | 75℃ | |
Safety & EMC
|
Isolation pressurization | Primary – secondary: 1500Vac 5mA 60S; L,N Ground: 1500Vac 5mA 60S |
EMC | FCC part15 Class A | |
DALI protocol standard | N/A | |
Safety requirement | UL1310,UL8750,UL935,CSA-CS22.2 No.250.13-12,CSA C22.2 No.233 | |
Certificate requirement | FCC ETL | |
Others | IP rating | IP65 |
Protection level | Class 2 unit | |
Packaging requirement | N/A | |
Installation dimension | 184*69*42mm | |
Noise | <25dB Class A | |
Packaging requirement | White box Instruction Clapboard Outer Carton(K=A) | |
Life | 50000h @Ta full load |
