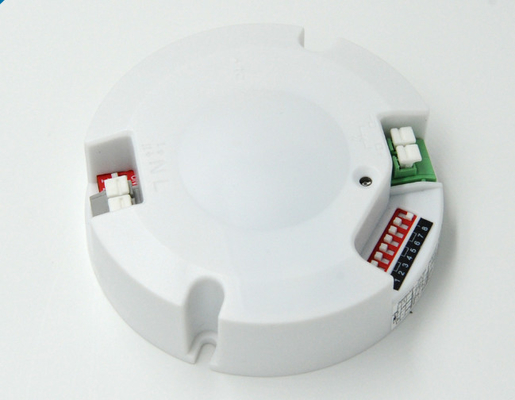

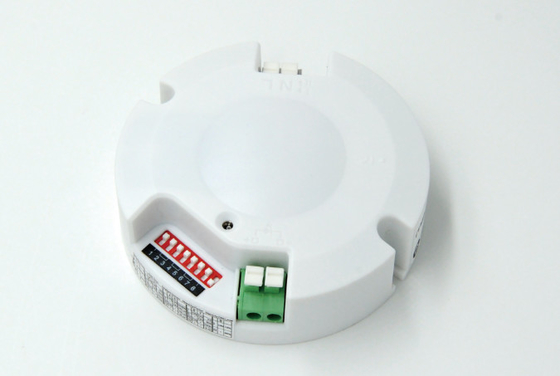

Sensor Dim LED Driver On-Off / 3-Step Dimming Function for LED Ceiling MLC14C-P

  • On-Off / 3-step dimming function for LED ceiling
  • Flicker-free dimming
  • Integration of microwave motion sensor and daylight sensor
  • Automatic switching and dimming based on motion and light level
  • Output current can be set via DIP switch
  • Unique design with mini sensor detector makes the drivers suitable to fix within compact luminaries
  • Stand-by power ≤1W
  • Detection area, Stand-by dimming level, time delay and daylight threshold can be precisely set via DIP switch



Specifications



Input Operating Voltage 198-264V AC 50Hz
Input Voltage 220-240V AC 50Hz
Input Current 0.08A
Power Factor ≥0.8(Full load)
Efficiency 78% Max. @230V
Stand-by Power ≤1W
Wiring Method Press fit terminal Wire Diameter: 0.5-1.5mm2
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering Free) Flicker - Free(10%-100% Flicker＜5%)
No-load output voltage 55VDC Max
Load output voltage range 28-48V
Full load output power 14W Max.
Load output current 250mA/ 300mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Press fit terminal LED+ LED- Wire Diameter: 0.5-1.5m m2
Exception Protection Requirements Input over voltage Protection N/A
Output over voltage Protection Yes
Output over load protection Yes
Output no load protection Yes
Output over temperature protection N/A
Output short circuit protection Yes
Sensor Parameter HF Operating Frequency 5.8 GHz ±75 MHz ISM wave band
HF Radiated power 0.5mW Max.
Hold Time 5s/90s/3min/10min(set via 2 DIP)
Dimming Ratio 10% 25% (set via 1 DIP)
Stand-by Period 0s/30s/10min/+∞(set via 2 DIP)
Detection Area 100% 50% (set via 1 DIP)
Daylight Sensor 5lux/15lux /50lux /Disable (set via 2 DIP)
HF Detection Area Radius 3-7m (Mounting height 3m)
Mounting Height: Suggested ounting Height:3-6m , 6m Max.
Detection Angle 150°(Wall Mounting), 360°(Ceiling Mounting)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity : 85% (Non-condensing)
Storage temperature/ humidity -35℃~80℃ Humidity : 85% (Non-condensing)
Outer Max. Temp(Tc) 80℃

Safety

& EMC



 Isolation pressurization (L N)Input-Output,3000VAC/5mA/1min
EMC EN61347-1
Safety requirement EN55015
Certificate requirement CE
Others IP rating IP20
Protection level Class II
Installation requirement Independent installation
Outer dimension Φ78*H27 mm
Life 30000h @ Ta Full load
