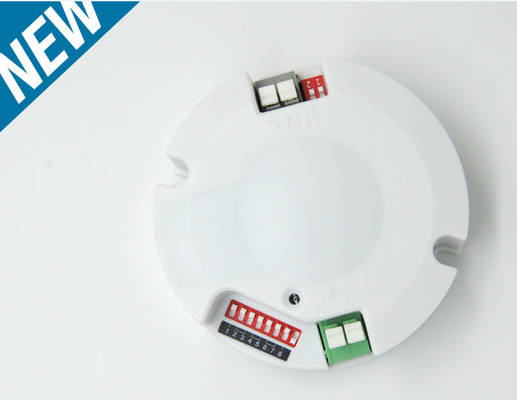

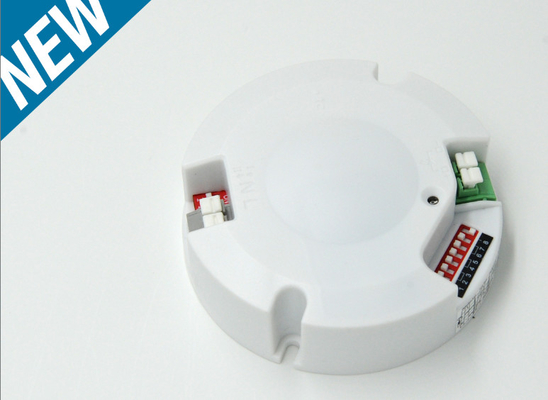

MLC09C-P Integration Of Microwave Motion Sensor And Daylight Sensor For LED Ceiling

  • MLC09C-P Integration Of Microwave Motion Sensor And Daylight Sensor For LED Ceiling
  • MLC09C-P Integration Of Microwave Motion Sensor And Daylight Sensor For LED Ceiling
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MLC09C-P
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240Vac 50Hz/60Hz Efficiency 78% Max. @230V
Stand-by Power ≤1W Product Name Sensor Dim LED Driver
Working Temperature -25℃-50℃ No-load Output Voltage 50VDC Max
Load Output Current 150mA/200mA Full Load Output Power 10W Max.
Protection Class IP20 Approvals CE
High Light

high efficiency led driver

,

LED Panel Light Driver

,

Microwave Motion Sensor And Daylight Sensor
Leave a Message
Product Description

MLC09C-P Integration of microwave motion sensor and daylight sensor for LED Ceiling

  • On-Off / 3-step dimming function for LED ceiling

  • Flicker-free dimming

  •        Stand-by power ≤1W

  • Integration of microwave motion sensor and daylight sensor

  • Automatic switching and dimming based on motion and light level

  • Output current can be set via DIP switch

  • Unique design with mini sensor detector makes the drivers suitable to fix within compact luminaries

  • Detection area, Stand-by dimming level, time delay and daylight threshold can be precisely set via DIP switch



Specifications



Input



 Operating Voltage 198-264Vac 50Hz/60Hz
Input Voltage 220-240Vac 50Hz/60Hz
Input Current 0.05A Max.
Power Factor ≥0.8 @230Vac (Full Load)
Standby Power ≤1W
Efficiency 78% Max. @230Vac
Wiring Method Press fit terminal Wire Diameter:0.5-1.5mm2
Output Operating mode Dimming control On/Off control
Load type LED
Ripple requirement (Flickering or Flickering Free) Flicker-free (10%-100% flicker＜2%)
No-load output voltage 50Vdc Max.
Load output voltage range 28-48Vdc
Full load output power 10W Max.
Load output current 150mA/200mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Press fit terminal LED+ LED- Wire Diameter:0.5-1.5mm2
Exception Protection Requirements Input over voltage Protection N/A
Output over voltage Protection Yes
Output over load protection Yes
Output no load protection Yes
Output over temperature protection Yes
Output short circuit protection Yes
Sensor Parameters HF Operating Frequency 5.8 GHz ±75 MHz ISM wave band
HF Radiated power 0.5mW Max.
Hold Time 5s/90S/3min/10min(set via 2 DIP)
Dimming Ratio 10% 25% (set via 1 DIP)
Stand-by Period 0S/30S/10min/+∞(set via 2 DIP)
Detection Area 100% 50% (set via 1 DIP)
Daylight Sensor 5lux/15lux /50lux /Disable (set via 2 DIP)
HF Detection Area Radius 3-7m (Mounting Height 3M)
Mounting Height: Suggested ounting Height:3-6m , 6m Max.
Detection Angle 150°(Wall Mounting), 360°(Ceiling Mounting)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ humidity:85%(Non-condensing)
Storage temperature/ humidity -35℃~80℃ humidity:85%(Non-condensing)
Outer Max. temperature(Tc) 80℃

Safety

& EMC

 Isolation pressurization (L N)Input - Output,3000VAC/5mA/1min
Safety Requirement EN61347-1
EMC EN55015
Certificate requirement CE
Others IP Rating IP20
Protection level Class II
Installation requirement Independent installation
Outer dimension Φ82*H28.5 mm
Life 30000h @ Ta Full load




Function:



MLC09C-P Integration Of Microwave Motion Sensor And Daylight Sensor For LED Ceiling 0





Dimension (Unit:mm)





MLC09C-P Integration Of Microwave Motion Sensor And Daylight Sensor For LED Ceiling 1



Wring Diagram:

MLC09C-P Integration Of Microwave Motion Sensor And Daylight Sensor For LED Ceiling 2
