Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control

  • Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control
Place of Origin China
Brand Name Merrytek
Certification UL
Model Number MC616V RC
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability Out of production

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Input Voltage 120/277VAC
Stand-by Power < 1W 1-10V Dimming < 50mA （Non Constant Current Source）
Operating Frequency 5.8 GHz ±75 MHz ISM Wave Band Working Temperature -35℃~+55℃
Protection Class IP20 Approvals FCC UL
Mounting Height 12m Max. Installation Size 82*82*42mm
Highlight

light motion sensor

,

high bay motion sensor

,

UL Remote Control Microwave Motion Sensor
Leave a Message
Product Description

Notice: this product is out of production, please contact our sales for the alternative products.

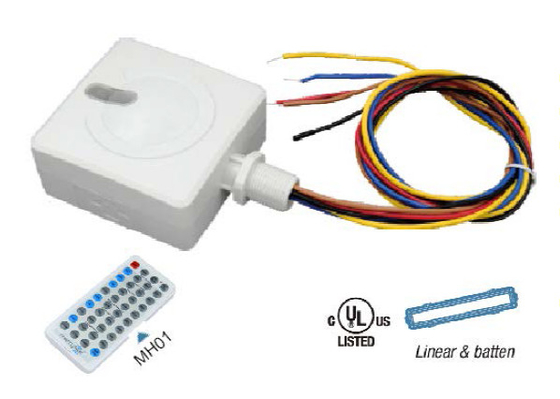

Microwave Motion Sensor MC616V RC North Amercian Version

Can Be Set Via MH01 Remote Control

  • On-Off/ 3-step dimming function
  • Remote control microwave motion sensor
  • North Amercian Version
  • Stand-by power < 1W
  • Fuctions can be set via infrared remote control MH01, such as detection area, hold time,
    stand-by dimming level, etc..
  • 5 Years Guarantee



Input Input Voltage 120/277V AC 50Hz/60Hz
Rated Input Voltage 120/277V AC 50Hz/60Hz
Stand-by Power < 1W
Wiring Method Lead connection Wire diameter:18AWG
Output Operating Mode ON/OFF 1-10V
Load Power

400W (Inductive)@120VAC 800W (Resistive) @120VAC

800W (Inductive)@277VAC 1000W (Resistive) @277VAC
1-10V Dimming < 50mA (Non constant current source)
Wiring Method Lead connection Wire diameter:22AWG
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz ISM wave band
HF Radiated power 0.5mW Max.
Detection Area 100%/75%/50%/25%
Hold Time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by Period 0s/10S/1min/3min/5min/10min/30min/Disable
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable
Preset Brightness 10%/20%/30%/50%
Mounting Height 12m Max.
Detection Angle 150°(Wall Mounting), 360°(Ceiling Mounting)

Operating

Environment

 Operating temperature/
humidity		 -35℃....+55℃
Storage temperature/humidity -40℃... +80℃

Safety

& EMC



 Isolation pressurization N/A
EMC N/A
Others Certificate requirement FCC UL
IP rating IP20
Protection level N/A
Installation requirement Independent side mounting
Installation Size 82*82*42mm
Packaging requirement Bubble Bag + Clapboard +Outer Carton (K=A)
Life 50000h


Dimension (Unit:mm)
Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control 0


Wiring Diagram

Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control 1

Diagram A: MC616V RC





Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control 2

Diagram B: MC616V RC+MS01




Function

Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control 3
