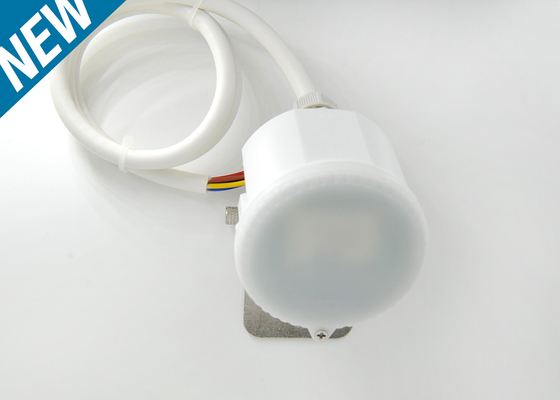

MC054V RC C Microwave Stand Alone Motion Sensor IP65 120-277Vac Input Approved UL

  • MC054V RC C Microwave Stand Alone Motion Sensor IP65 120-277Vac Input Approved UL
Place of Origin China
Brand Name Merrytek
Certification UL
Model Number MC054V RC C
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bracket Rotatable Metal Brackets Road Load 120Vac 4A Electronic/magnetic Ballast 277Vac 3A Electronic/magnetic Ballast
Opertion Voltage 120-277Vac Product Name IP65 Microwave Motion Sensor
Approval UL Detection Zone Max(D×H):16m×15m
Operation Temperature -35℃~70℃ Function 2 Step /3 Step Dimming/ On Off Function
IP Rating IP65 Cover Color Black Or White
High Light

microwave motion sensor

,

high bay motion sensor

,

Microwave Stand Alone Motion Sensor
Leave a Message
Product Description

Stand Alone Microwave Motion Sensor IP65 MC031V A 120-277Vac Input for High Bay

Description



The sensor is designed for warehouse use, and special rotatabel metal bracket can support for differnt shape fittings.



Except the higher mounting height 15m Max. The sensors allow energy saving without compromising comfort. When used in combination with 0-10V dimmable LED drivers or ballasts,  they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.



Also, the 0-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.







Feature

1. Automatic dimming when used in combination with 0-10V dimmable LED drivers or ballasts.

2. Built-in adjustable daylight sensor.0-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.

3. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

4. Wide detection area, range up to 16m in diameter and mounting height 15M Max.

5. suitable for high bay because of metal reflector clip.
6. Dimming function or on off function


Product Information



MC054V RC C Microwave Stand Alone Motion Sensor IP65 120-277Vac Input Approved UL 0
Function
3-step dimming function:
MC054V RC C Microwave Stand Alone Motion Sensor IP65 120-277Vac Input Approved UL 1

Wiring

MC054V RC C Microwave Stand Alone Motion Sensor IP65 120-277Vac Input Approved UL 2

Installation:

MC054V RC C Microwave Stand Alone Motion Sensor IP65 120-277Vac Input Approved UL 3


Specifications

Operating voltage

120-277Vac, 50/60Hz



Rated load

120Vac 4A electronic/magnetic ballast;277Vac 3A electronic/magnetic ballast



HF system

5.8GHz±75MHz, ISM wave band



Power consumption

≤0.5W(standby), <1W(operation)



Transmitting power

<0.5mW



Detection zone Max.(D x H)

16m x 15m



Motion detection

0.5~3m/s



Detection angle

150°(wall installation) 360°(ceiling installation)



IP rating

IP65



Operation  Temperature

 -35℃~70℃



Hold time

5s/30s/90s/3min/20min/30min



Detection sensitivity

50% / 100%



Daylight sensor

50lux / 100lux / 200lux / Disable



Stand-by period

5s / 5min / 10min / 30min / 1h / Disable



Stand-by dimming level

10% / 20% / 30%/ 50%


Life time 50000hours


Detection pattern

 MC054V RC C Microwave Stand Alone Motion Sensor IP65 120-277Vac Input Approved UL 4

Applications:
Warehouse
MC054V RC C Microwave Stand Alone Motion Sensor IP65 120-277Vac Input Approved UL 5
