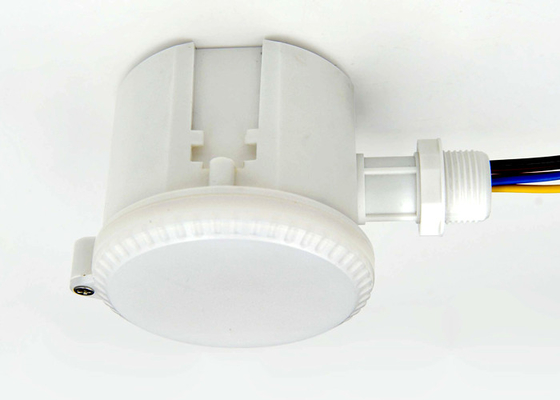

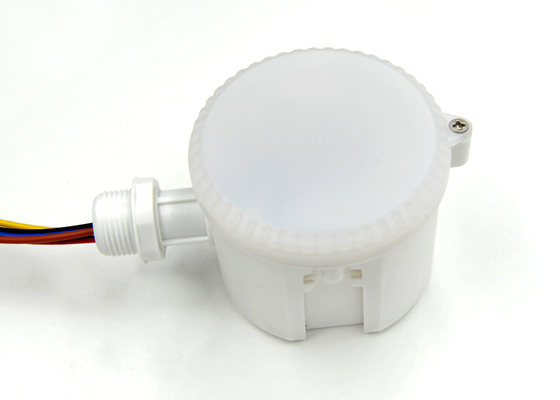

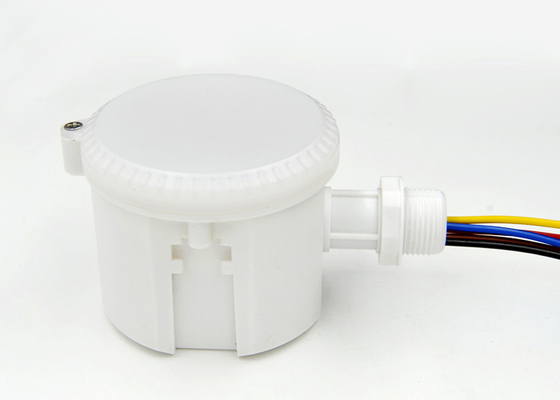

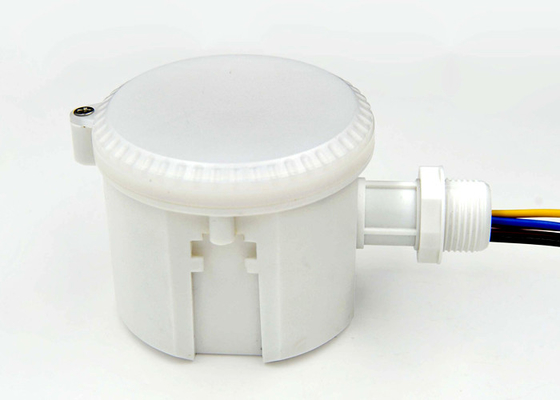

High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D

  • High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D
  • High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D
  • High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D
  • High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D
Place of Origin China
Brand Name Merrytek
Certification UL
Model Number MC054V RC D
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 120-277Vac，50/60Hz HF System 5.8GHz ±75MHz, ISM Wave Band
IP Rating IP65 Rated Load 120Vac 4A Electronic/magnetic Ballast 277Vac 3A Electronic/magnetic Ballast
Operation Temperature -25℃~ 55℃ Function 2 Step /3 Step Dimming/ On Off Function
Mounting Height 6-15m Cover Color Blank Or White
Hold Time 5s/30s/1min/3min/5min/10min/20min/30min
High Light

microwave sensors for lighting

,

rf motion sensor
Leave a Message
Product Description

MC054V RC D Microwave Motion Sensor IP65 120-277Vac for High Bay Light


Description
Dimming function or on off function are selectable
Easy to be fixed with high bay for the special clip
5.8GHz frequencyand built-in daylight sensor, auto turn on lights according to movement and daylight lux
Automatic dimming when used in combination with 0-10Vdimmable LED drivers or ballasts.
Detection area, time delay and daylight threshold can be precisely set via DIP switch.
Wide detection area, range up to 16m in diameter and mounting height 15M Max. suitable for warehouse use.
Suitable for warehouse, high bay and tri-poof light

Function
2- Step dimming function
High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D 0

3-step dimming function:
High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D 1

Size:
High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D 2



Specifications

Operating voltage

120-277Vac, 50/60Hz



Rated load

120Vac  4A electronic/magnetic ballast;277Vac 3A electronic/magnetic ballast




HF system

5.8GHz±75MHz, ISM wave band



Power consumption

≤0.5W(standby), <1W(operation)



Transmitting power

<0.5mW



Detection zone Max.(D x H)

16m x 15m



Motion detection

0.5~3m/s



Detection angle

150°(wall installation) 360°(ceiling installation)



IP rating

IP65



Operation  Temperature

 -25℃~55℃



Hold time

5s/30s/90s/3min/20min/30min



Detection sensitivity

 50% /100%



Daylight sensor

50lux / 100lux / 200lux / Disable



Stand-by period

5s / 5min / 10min / 30min / 1h / Disable



Stand-by dimming level

10% / 20% / 30%/ 50%



Life time

50,000 hours

Guaranty

5 years


Wiring :

High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D 3

MH01 Setting:
High Bay Motion Sensor Microwave IP65 120-277Vac for Light MC054V RC D 4
Applications:
Stairwell, corridor, balcony, pathway, washroom, kitchen, gas stations, parking lot , warehouse ,etc
